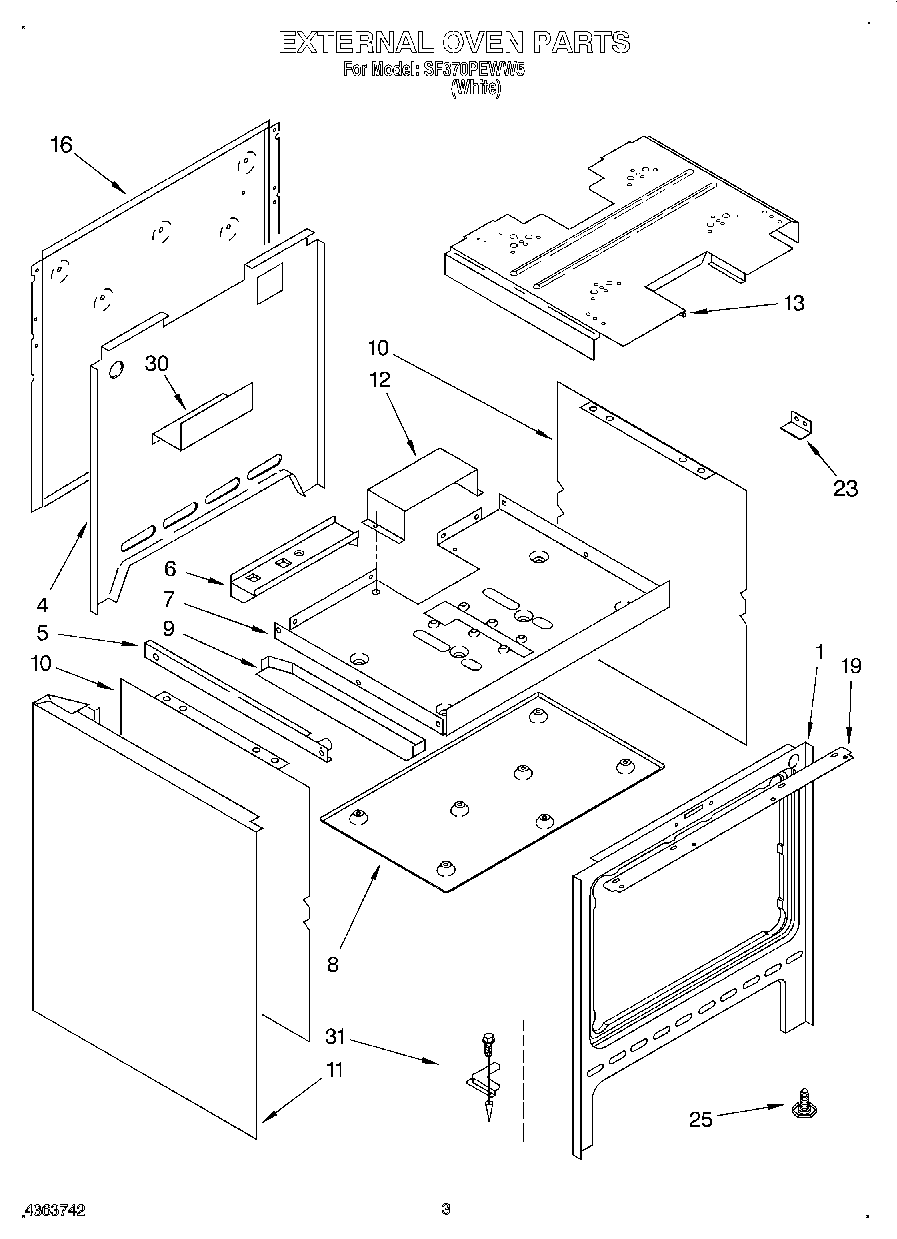

SF370PEWW5 02 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
4	Retainer, Rear Insulation
5	Track, Storage Drawer (Right Side)
5	Track, Storage Drawer (Left Side)
6	Shelf, Gas Valve
7	Retainer, Bottom Insulation
8	Heat Shield, Storage Drawer
9	Brace, Bottom (L.H.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	Panel, End (White)
12	Retainer, Ignitor
13	Retainer, Top Insulation
16	Panel, Rear
19	Frame, Filler Front
23	WP488130 Whirlpool Air Conditioner Nut
23	Screw No.8 x 1/2
23	WP486754 Whirlpool Compactor Screw
23	Bracket, Gas Valve (2)
23	Nut, 6-32 (6)
25	Leg, Leveling (4)
30	Cover, Electrical
31	Anti Tip Kit
