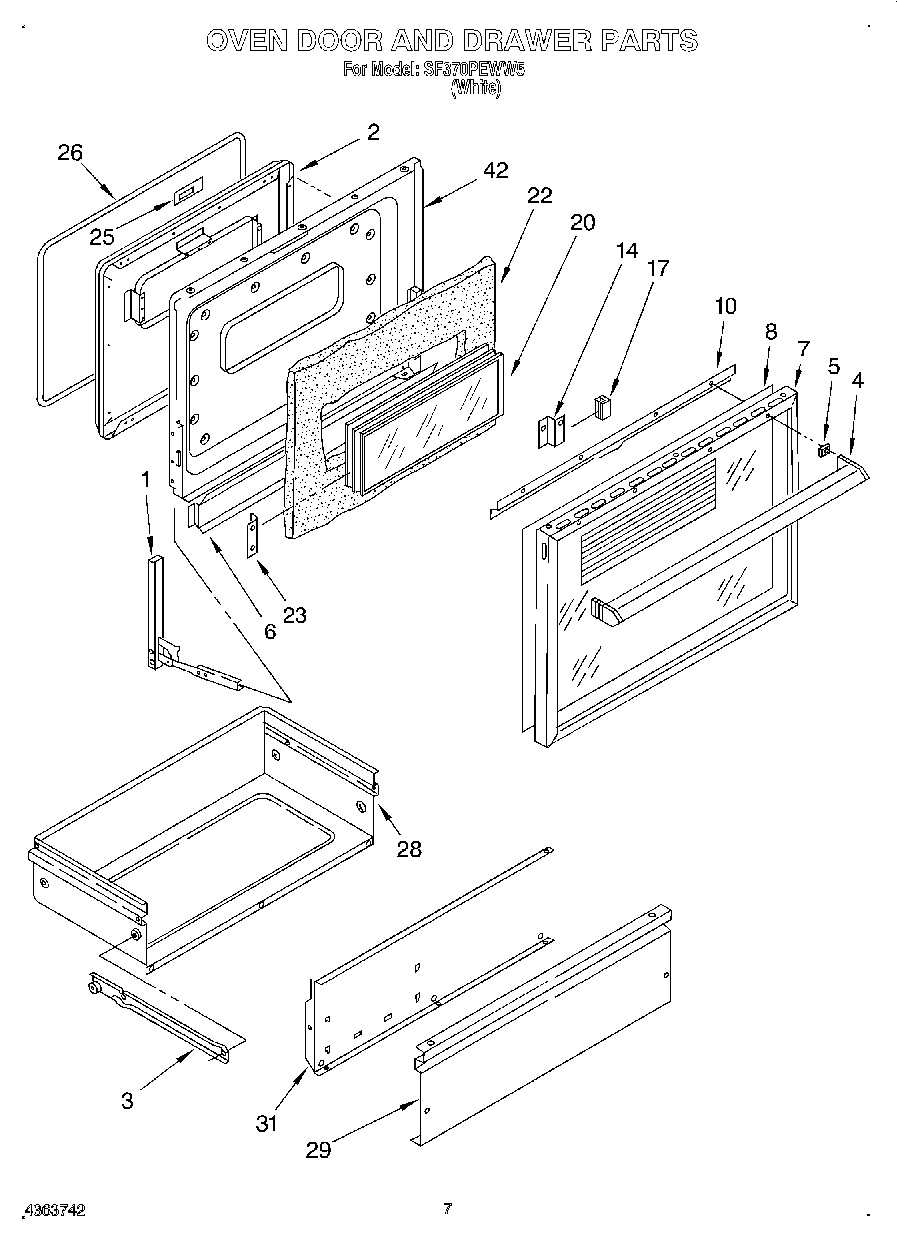

SF370PEWW5 05 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (R.H.)
1Hinge, Oven Door (L.H.)
2Liner, Oven Door
2Pin-Hinge (2)
2WP488130 Whirlpool Air Conditioner Nut
3Runner (L.H.)
3Runner (R.H.)
4Handle
5Spacer, Handle (2)
6Baffle, Heat
7Frame
8Glass, Outer Door
10Baffle, Air
14bracket, glass support (4)
17Bumper, Window (2)
20Window Assembly
22Insulation, Door
23Retainer, Window (4)
25Plate, Latch
26gasket assembly
28Drawer, Storage
29Panel, Drawer (White)
29Panel, Drawer (Almond)
29WP965173 Whirlpool Dishwasher Screw
31Liner, Drawer Panel
42Runner, Drawer (Screw, 8-18 x 3/8 (4))
42Bumper, Rubber
42Backer, Door
