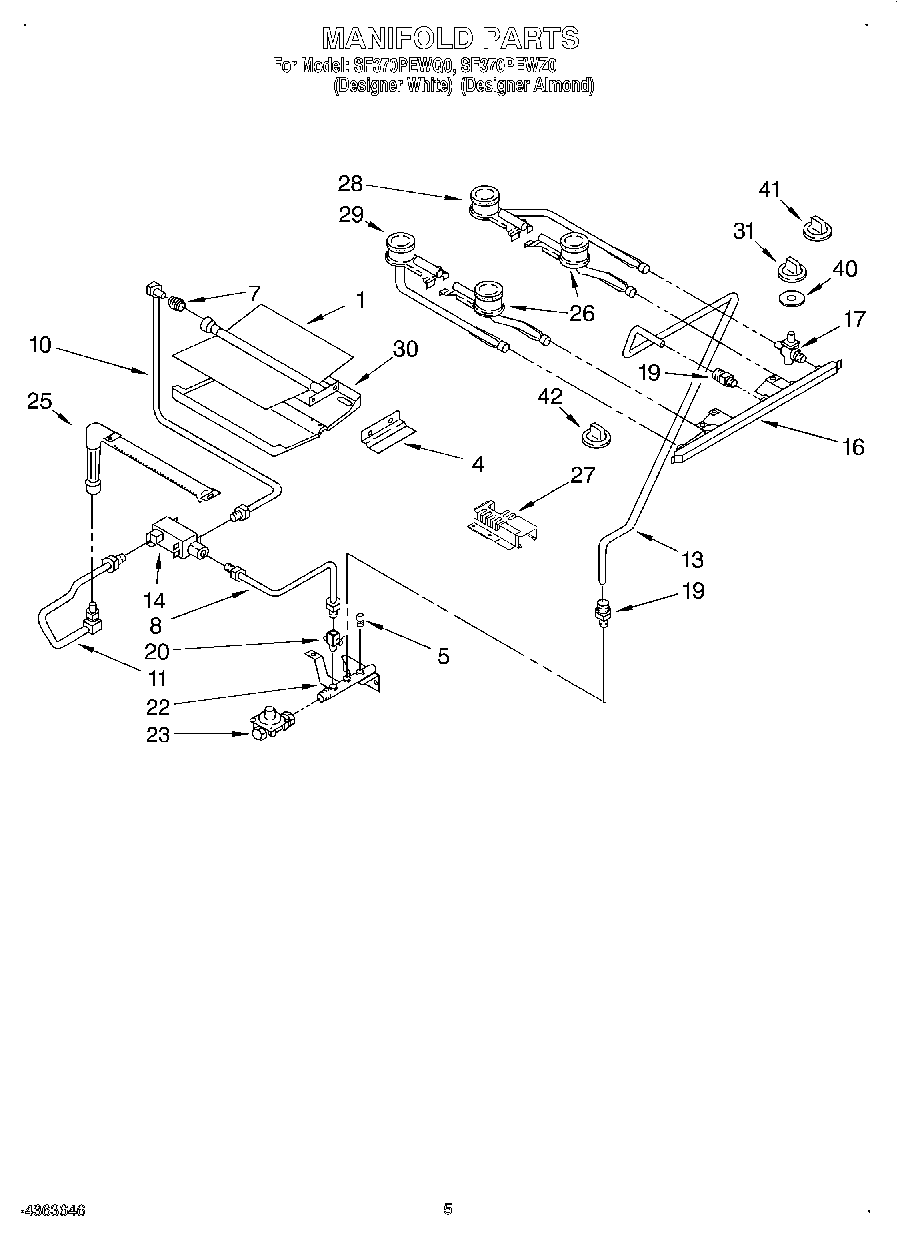

SF370PEWZ0 03 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
4	Support, Burner Mounting
4	Screw
5	W10295523 Whirlpool Plug
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	Nut, Lock
11	hood & tubing assembly (gas valve to lower oven burner)
13	tubing (inlet to manifold)
14	Valve, Dual Gas Valve
16	Plate, Cover
17	Valve, Top Burner (Tri-Set)
17	Screw, Valve
19	Fitting
20	Valve, Shut Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Top Burner, Front (2)
27	Shield, Broiler Ignitor
28	Top Burner, R.R.
29	Top Burner, L.R.
30	Baffle, Burner
31	Knob, Top Burner (4) (White)
31	Knob, Top Burner (4) (Almond)
40	Shield
41	Knob, Thermostat ((White Model))
41	Knob, Thermostat ((Almond Model))
42	Knob, Selector ((White Model))
42	Knob, Selector ((Almond Model))
