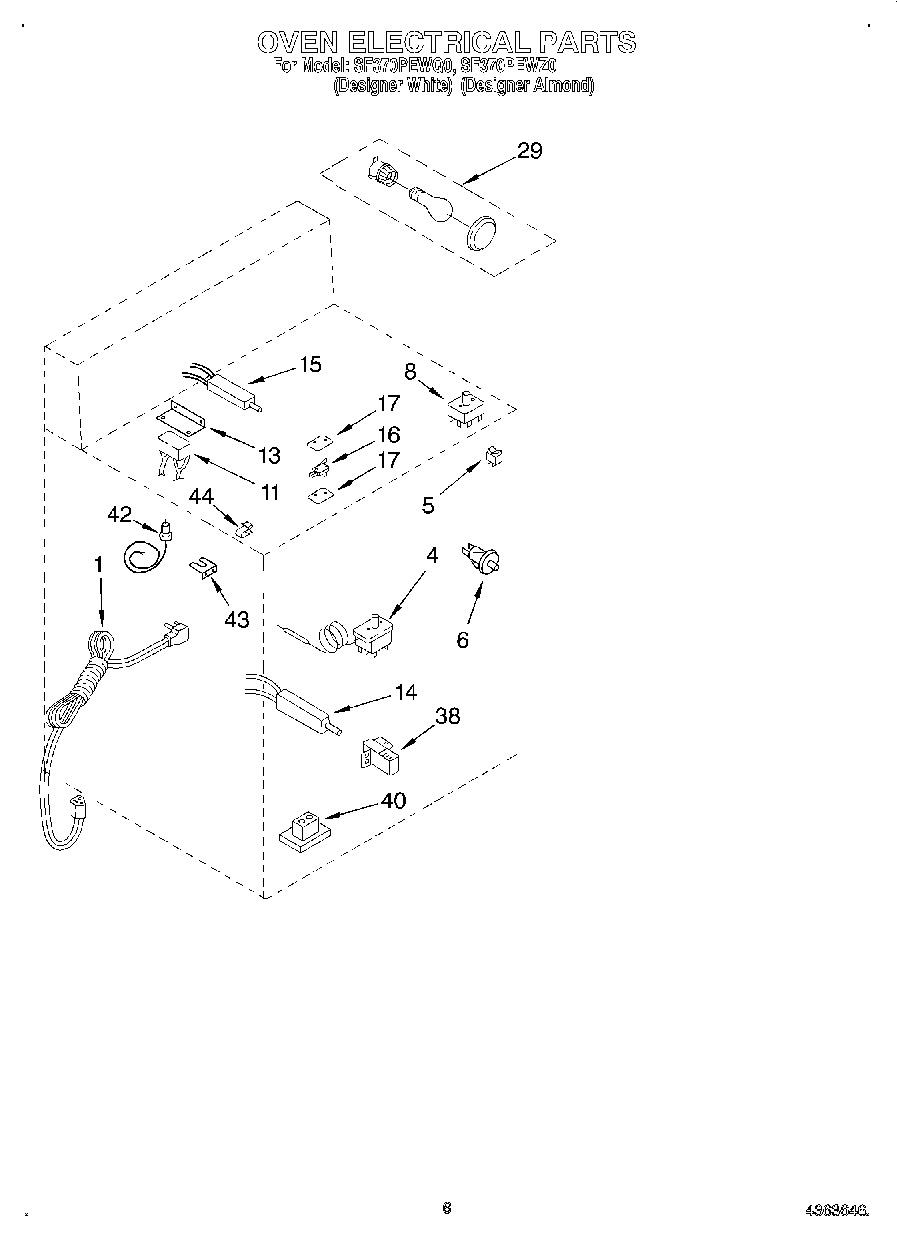

SF370PEWZ0 04 – OVEN ELECTRICAL, LITERATURE
Written by
in
SF370PEWZ0 04 – OVEN ELECTRICAL, LITERATURE
Products
Position
Product
Instructions, Installation
Guide, Use & Care
Diagram, Wiring
1
Cord, Power
4
Thermostat, Oven
5
Switch, Rocker (Almond)
5
Switch, Rocker (White)
6
Switch, Oven Door
8
Switch, Selector
11
Spark Module
13
Bracket, Spark Module
14
786324 Whirlpool Flat Igniter
15
Ignitor, Broil
16
Switch, Oven Door Latch
17
Insulator, Switch
17
screw, 4-40 x 5/8 (2)
29
WP74011278 Whirlpool Light
38
Bracket, Bake Ignitor
40
Plug, Ignitor Wire
42
4157608 Whirlpool Surface Igniter
43
WP965173 Whirlpool Dishwasher Screw
43
Clip, Mounting Electrode
44
Clip, Cable ESM
←
