SF370PEWZ0 07 – COOKTOP

SF370PEWZ0 07 – COOKTOP

Written by

in

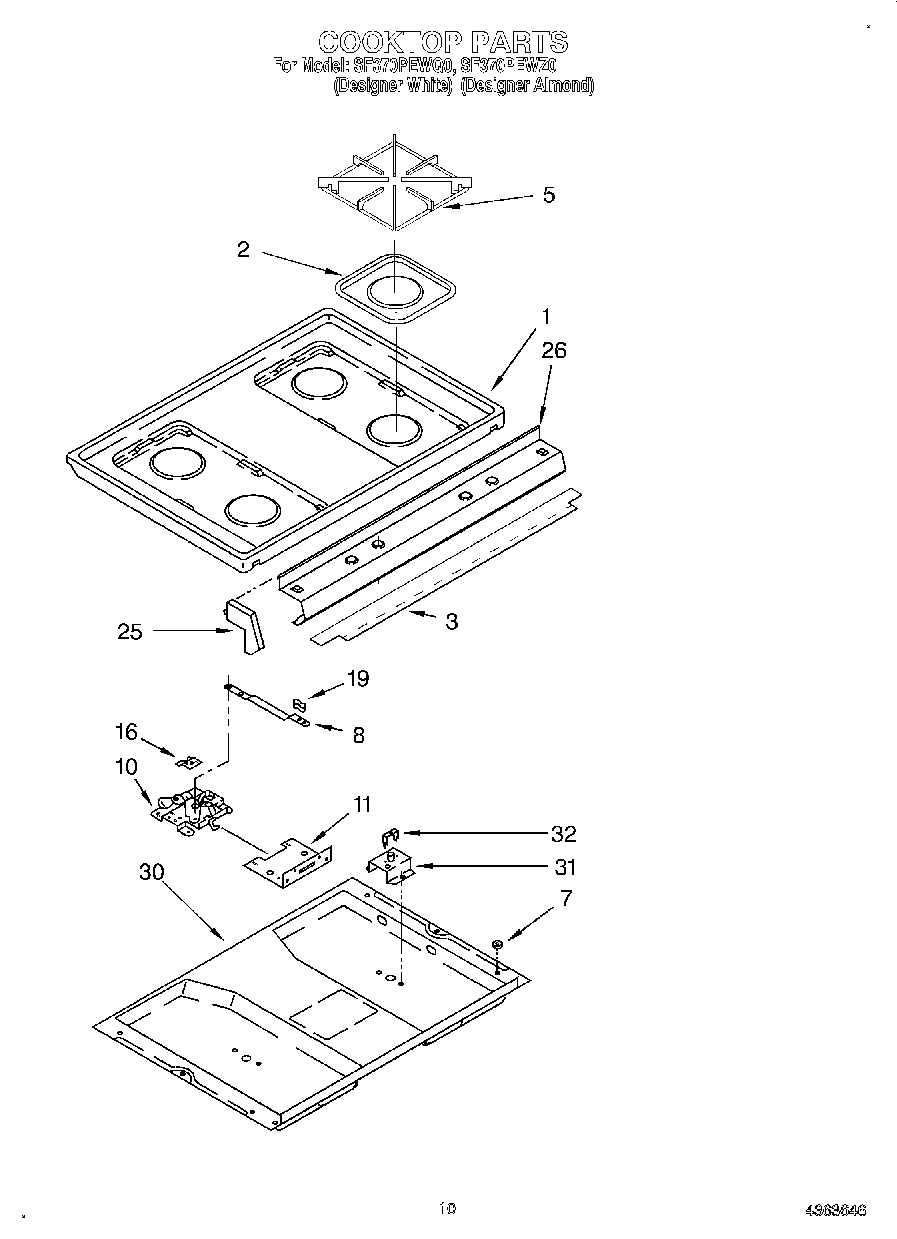

SF370PEWZ0 07 – COOKTOP

Products

Position	Product
1	Top, Main (White)
1	Top, Main (Almond)
2	WPY0060872 Whirlpool Drip Pan
3	Panel, Filler
5	Grate, Top Burner (4)
5	Grate (4) ((White Model))
7	Spacer, Nylon (4)
8	Handle, Latch (White)
8	Handle, Latch (Almond)
10	Latch Assembly
10	Screw
11	Bracket, Latch Mounting
16	Screw No.8 x 1/2
16	Bracket, Switch
16	screw, 4-40 (2)
19	Knob, Latch Handle (Almond)
19	Knob, Latch Handle (White)
25	End Cap (White, LH)
25	End Cap (White, RH)
25	End Cap (Almond LH)
25	End Cap (Almond, RH)
26	Panel, Control (White)
26	Panel, Control (Almond)
30	Burner Box
31	Bracket, Top (2)
32	Bracket, Electrode (2)
