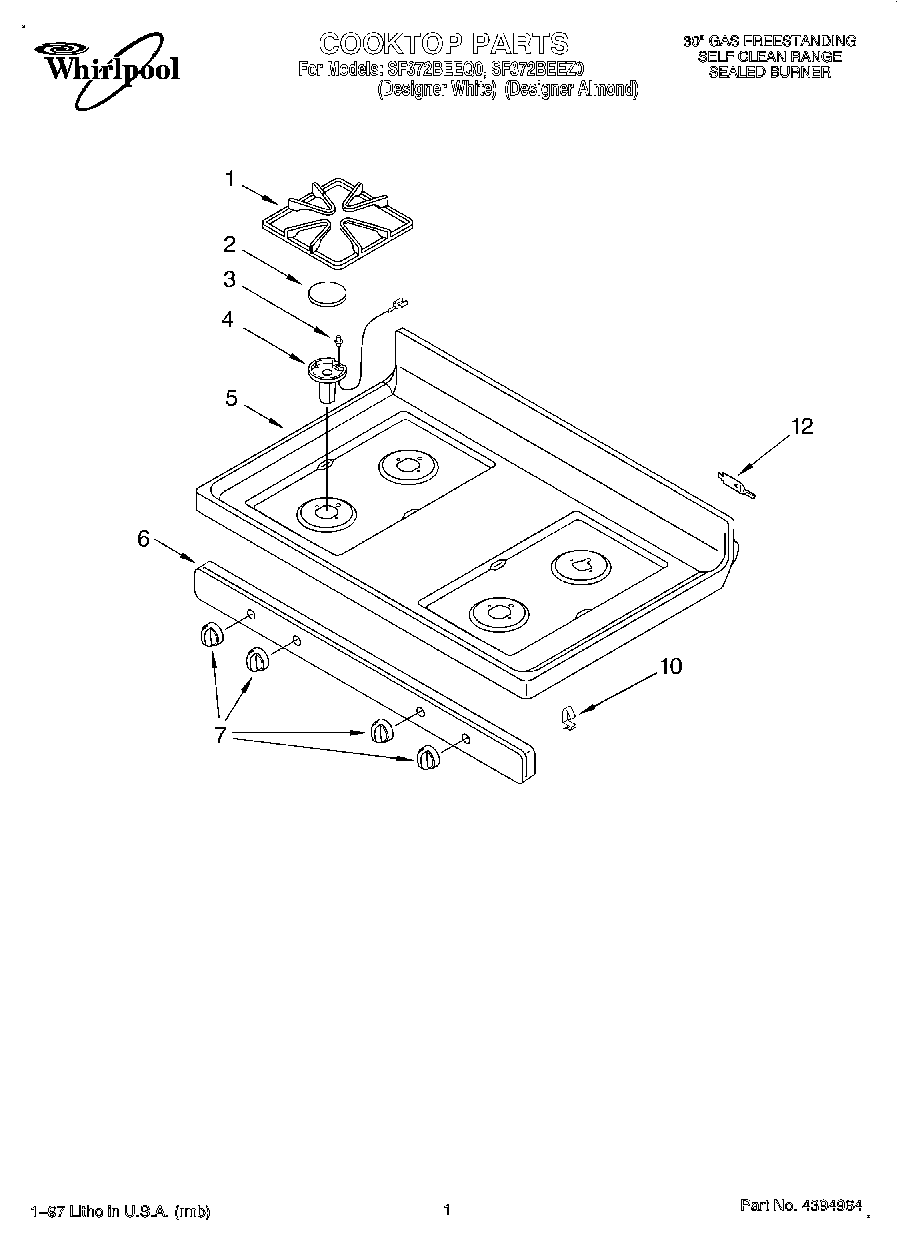

SF372BEEZ0 01 – COOKTOP

Products

Position	Product
1	Grate, Burner (4) (Almond Model)
1	Grate, Burner (4)
2	Cap, Large Burner (Almond Model)
2	Cap, Burner (Small (1))
2	Cap, Burner (Large (3))
2	(Cap, Small Burner) (Almond Model)
3	W11032529 Whirlpool Surface Igniter
4	Burner, 6,500 BTU (RR)
4	WP8053360 Whirlpool Burner Head
4	WPW10132940 Whirlpool Dishwasher Screw
5	Cooktop (White)
5	Cooktop (Almond)
6	Panel, Manifold (Almond Model)
6	WP8523854 Whirlpool Manifold Panel
6	WP3196557 Whirlpool Screw
7	Knob, Surface (4) (Almond)
7	WP3186135 Whirlpool Control Knob
10	Clip – Mounting
12	WP3195060 Whirlpool Cooktop Pin
12	SCREW
