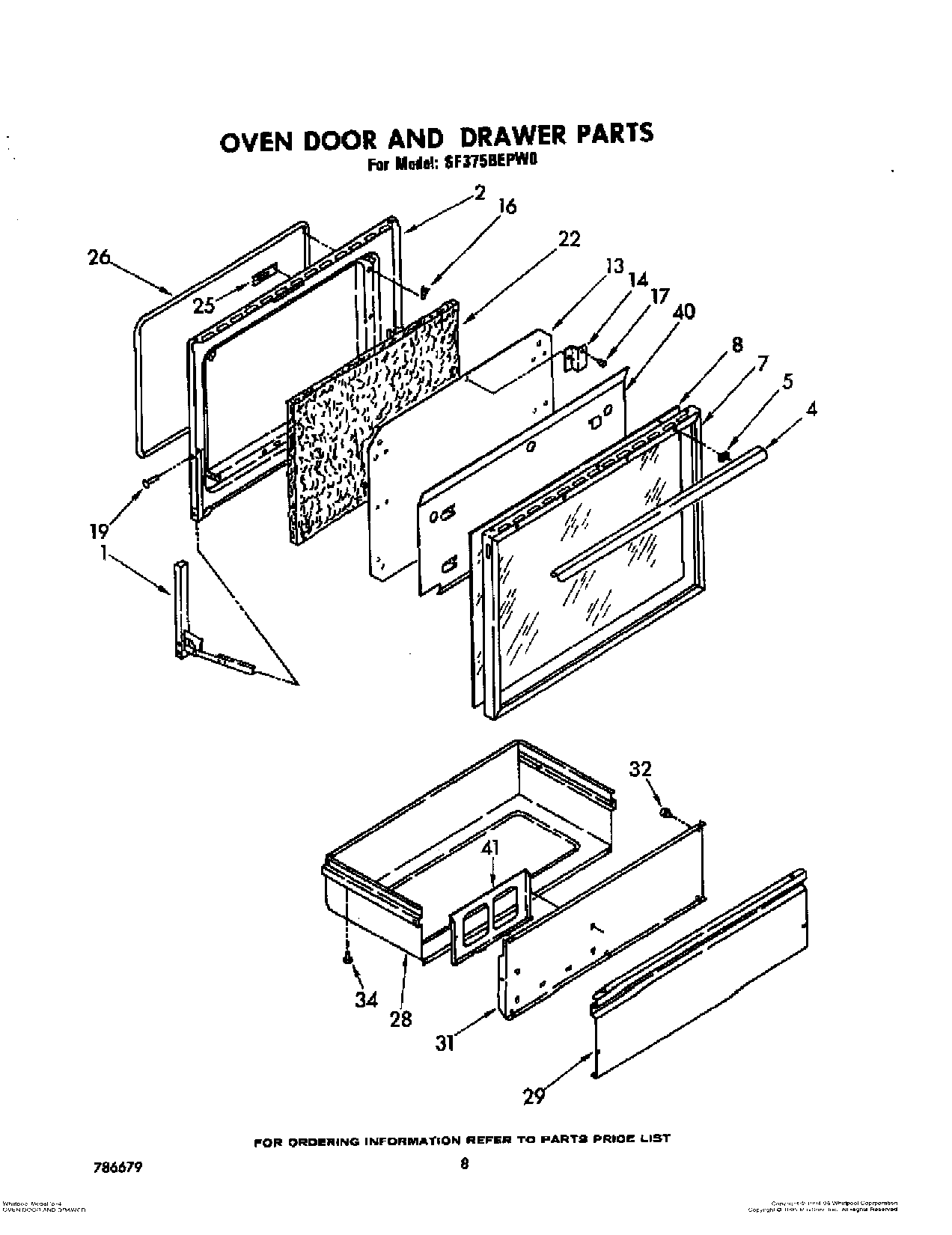

SF375BEPW0 06 – OVEN DOOR AND DRAWER

SF375BEPW0 06 – OVEN DOOR AND DRAWER

Written by

in

SF375BEPW0 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (R.H.)
1Hinge, Oven Door (Left Side)
2WP965173 Whirlpool Dishwasher Screw
2WP488130 Whirlpool Air Conditioner Nut
2WP308685 Whirlpool Microwave Screw
2Screw, 8-32 X 5/8 (4)
2Liner, Oven Door
4Handle
5Spacer, Handle (2)
7Frame
8Panel, Black Glass
13Retainer, Insulation
14bracket, glass support (4)
16Clip, Speed (14)
17Bumper Window (5)
19Pin, Hinge (2)
22WPW10208653 Whirlpool Insulation
25Plate, Latch
26Gasket Assembly
28Wrapper, Storage Drawer
29panel, drawer (toast)
29Panel, Drawer (Platinum)
29Panel, Drawer (Almond)
29Panel, Drawer (White)
31Liner, Door Panel
32Bumper, Rubber
34Rivet, Plastic (4)
40Baffle, Air
41Rack, Literature
