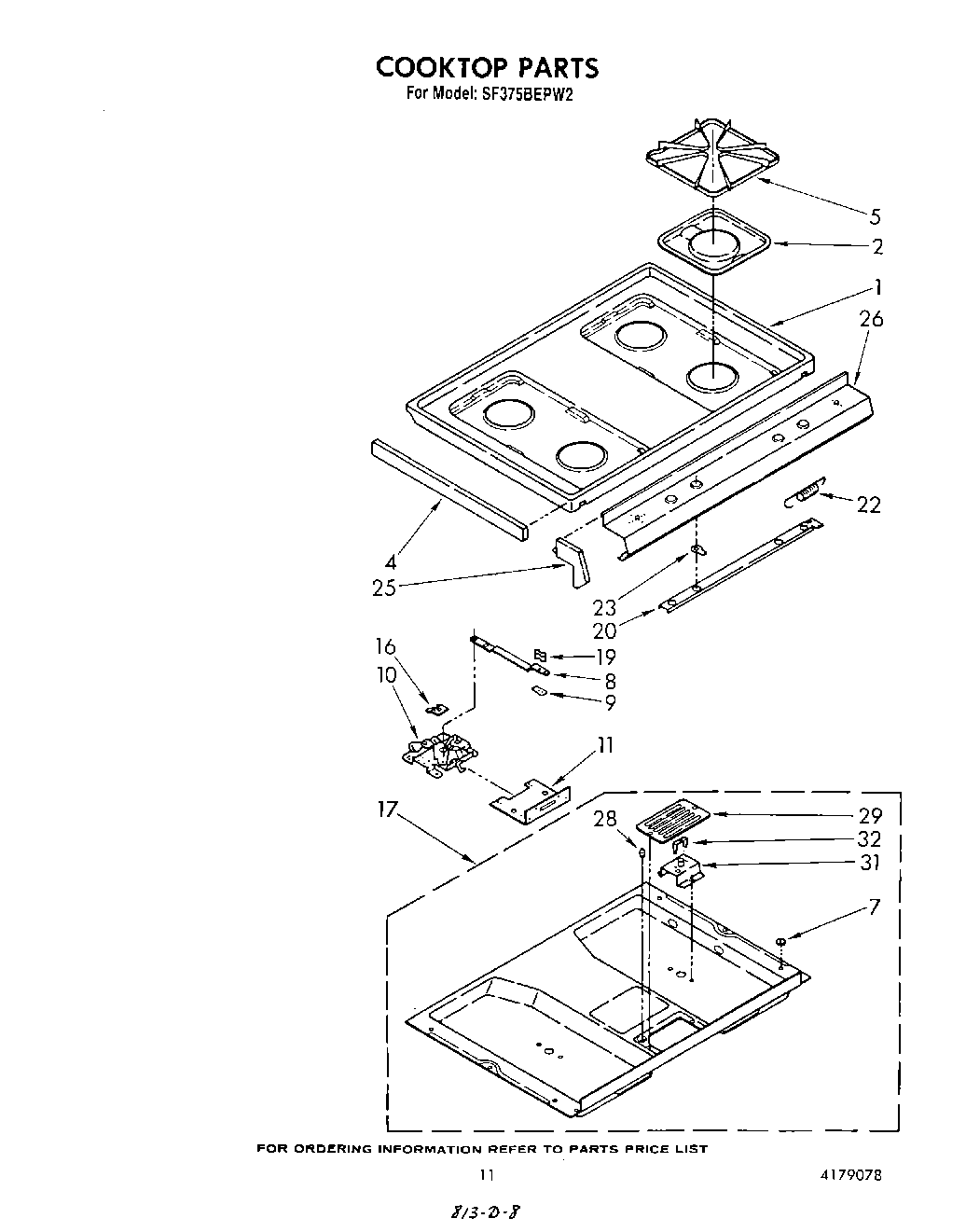

SF375BEPW2 08 – COOK TOP

Products

Position	Product
1	Top, Main (White)
1	Top, Main (Toast)
1	Top, Main (Platinum)
1	Top, Main (Almond)
2	WP786333 Whirlpool Drip Bowl
4	Trim, Main Top (Left Side)
4	Trim, Main Top (Right Side)
5	Grate, Top Burner
7	Spacer, Nylon (4)
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Mounting Latch
16	screw, 4-40 (2)
16	Bracket, Switch
17	Burner Box
17	WP965173 Whirlpool Dishwasher Screw
19	Knob, Latch Handle
20	Actuator, Spark Ignitor
22	Spring
23	Cam (4)
25	End Cap (Right)
25	End Cap (Left)
26	Panel, Control
28	LP Gas No. 58
29	Plate, Cover
31	Bracket, Top (2)
32	Bracket, Electrode (2)
