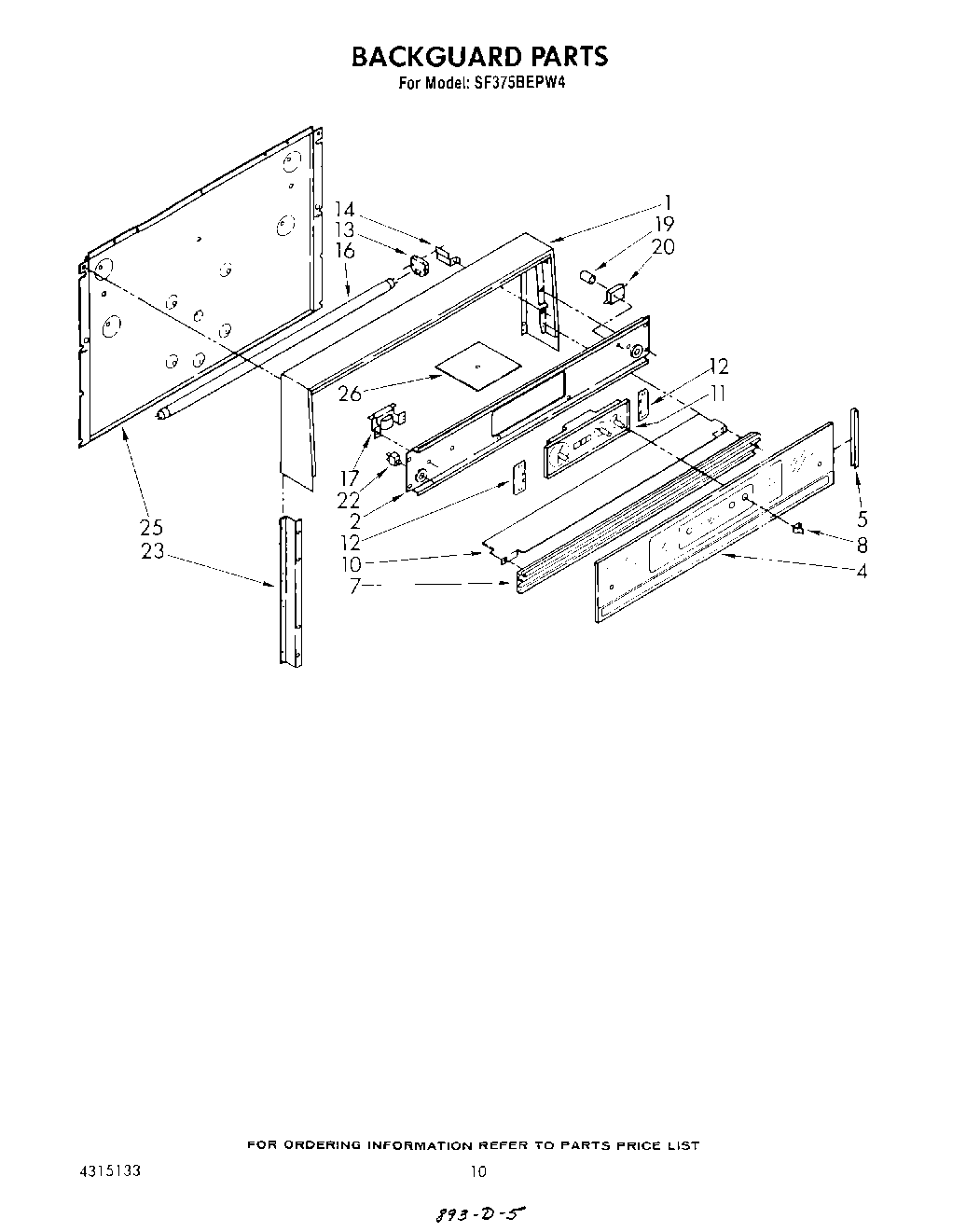

SF375BEPW4 07 – BACKGUARD , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instructions, Installation
	Guide, Cooking
1	Frame
1	Screw (4)
1	WP965173 Whirlpool Dishwasher Screw
1	Screw, 8 X 3/8 (14)
1	Screw, Handle (4)
1	Plate, Latch
2	Panel, Control Mounting
4	Glass, Control Panel
5	Channel, Glass (2)
7	Trim, Lower
8	Knob, Clock
10	Shield, Heat
11	Endcap (L.H.)
12	WPL 786706
13	Lampholder Fluorescent
14	Support, Lamp Socket (Right Side)
14	Support, Lamp Socket (Left Side)
16	Lamp, Fluorescent
17	Ballast
19	Starter, Fluorescent
20	Socket, Starter
22	Indicator Light
23	Support, Control Panel (2)
25	Panel, Cover
26	Insulation, Oven Light
