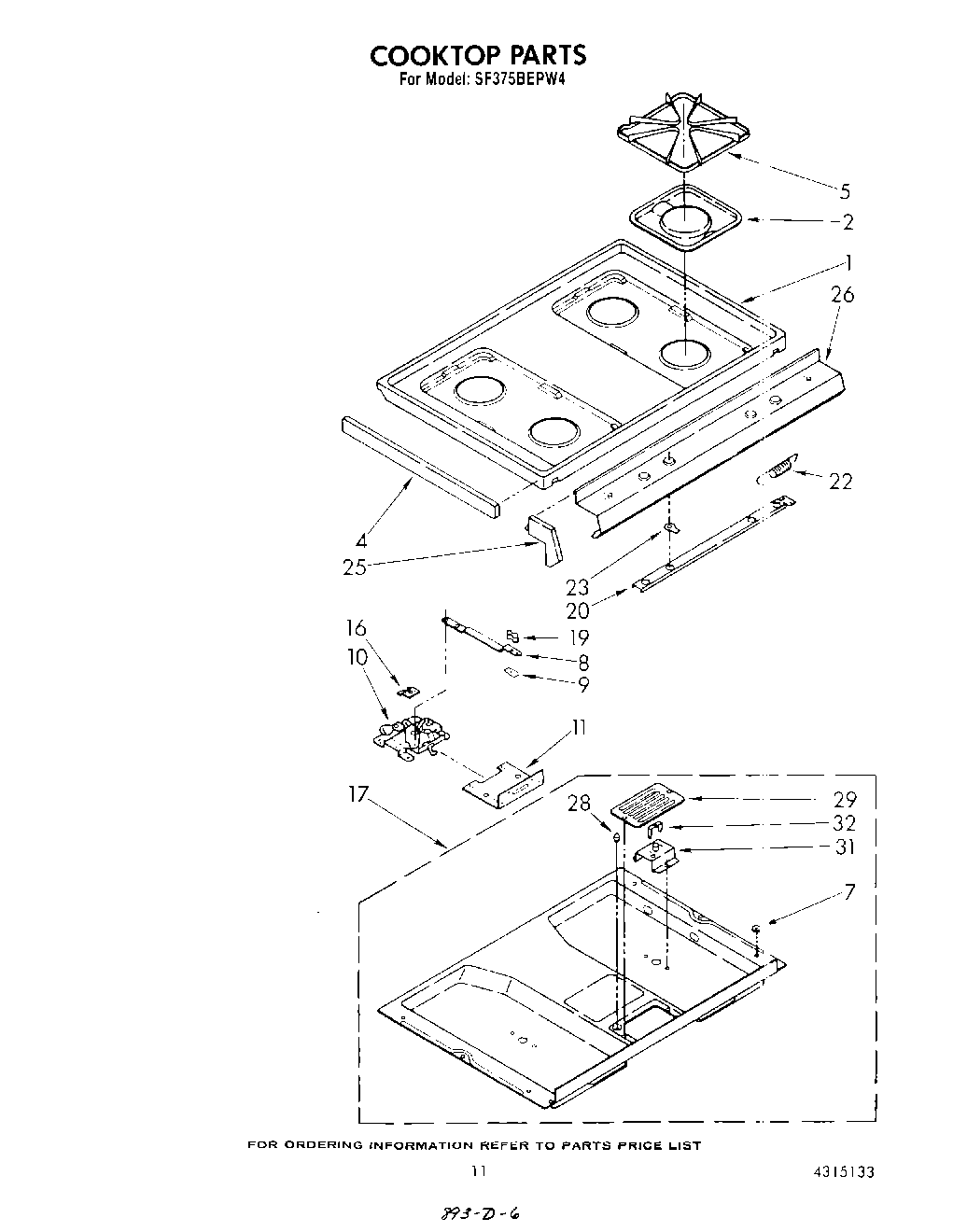

| 1 | Top, Main (White) |
| 1 | Top, Main (Toast) |
| 1 | Top, Main (Platinum) |
| 1 | Top, Main (Almond) |
| 2 | WP786333 Whirlpool Drip Bowl |
| 4 | Trim, Main Top (Left Side) |
| 4 | Trim, Main Top (Right Side) |
| 5 | Grate, Top Burner |
| 7 | Spacer, Nylon (4) |
| 8 | Handle, Latch |
| 9 | Support, Latch |
| 10 | Latch Assembly |
| 11 | Bracket, Mounting Latch |
| 16 | screw, 4-40 (2) |
| 16 | Bracket, Switch |
| 17 | Burner Box |
| 17 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Knob, Latch Handle |
| 20 | Actuator, Spark Ignitor |
| 22 | Spring |
| 23 | Cam (4) |
| 25 | End Cap (Right) |
| 25 | End Cap (Left) |
| 26 | Panel, Control |
| 28 | LP Gas No. 58 |
| 29 | Plate, Cover |
| 31 | Bracket, Top (2) |
| 32 | Bracket, Electrode (2) |
