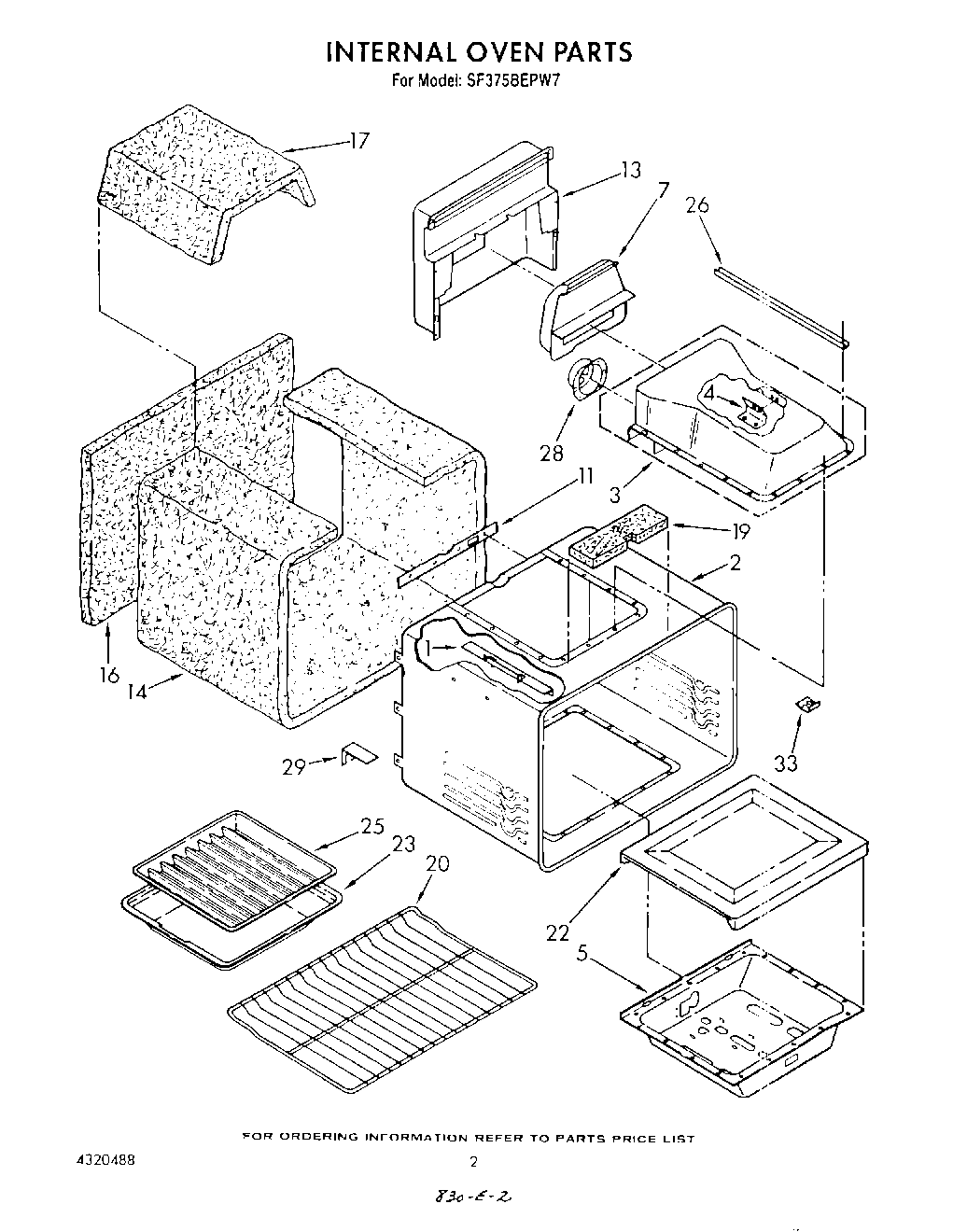

SF375BEPW7 02 – INTERNAL OVEN

SF375BEPW7 02 – INTERNAL OVEN

Written by

in

SF375BEPW7 02 – INTERNAL OVEN

Products

PositionProduct
1Sheild, Thermostat Bulb
2oven 30“ self-clean
3Chamber, Broiler Burner
4Bracket, Ignitor
4Screw (3)
5Burner, Box, Lower
7Flue, Inner
11Gasket, Oven Back
13SWITCH & CABLE MOUNTING ASSY
14WPW10208653 Whirlpool Insulation
20Rack, Oven (2)
22Bottom, Oven
23Pan, Broiler
25Grid, Broiler
26Channel, Broiler Burner
28Duct, Cup
29bracket, oven shell
33cover, chip
