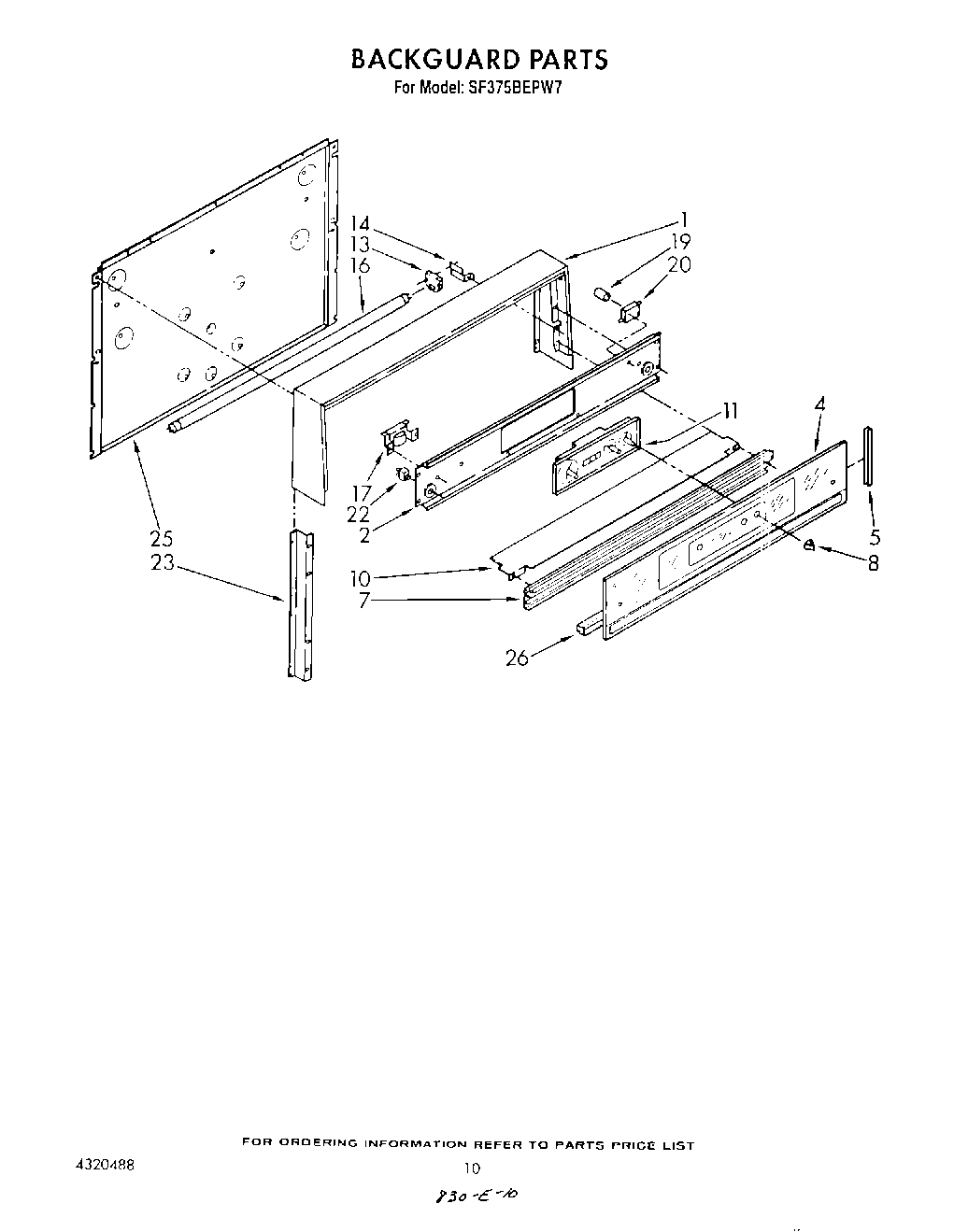

SF375BEPW7 07 – BACKGUARD , LITERATURE

Products

PositionProduct
1screw (4)
1Frame
2Panel, Control Mounting
4Glass, Control Panel
5Channel, Glass (2)
7Trim, Lower
8Knob, Clock
10Screw (2)
10Shield, Heat
11Screw (2)
13Lampholder Fluorescent
14Support, Lamp Socket (Right Side)
14Support, Lamp Socket (Left Side)
16lamp, fluorescent
17Ballast
19Starter, Fluorescent
20Socket, Starter
22Indicator Light
23Support, Control Panel (2)
23Support, R.H.
23Support L.H.
25Panel, Rear
26insulation, backguard
