SF375PEEN0 02 – CONTROL PANEL

SF375PEEN0 02 – CONTROL PANEL

Written by

in

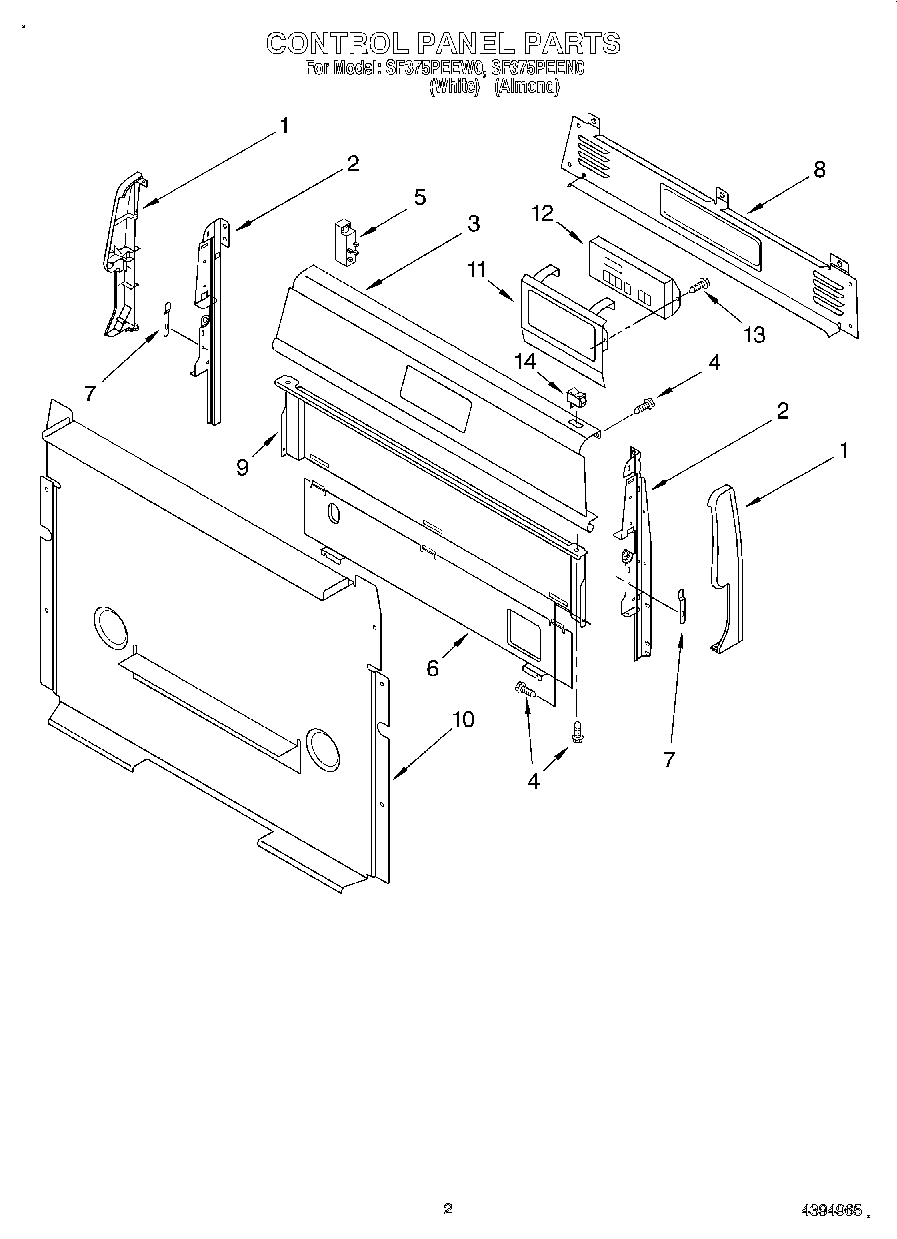

SF375PEEN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Black)
4Screw
5WPY706189 Whirlpool Stove Screw
5WPW10110491 Whirlpool Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11Bracket, Control
12Control, Range
13SCREW
14WP4314961 Whirlpool Lite Switch
