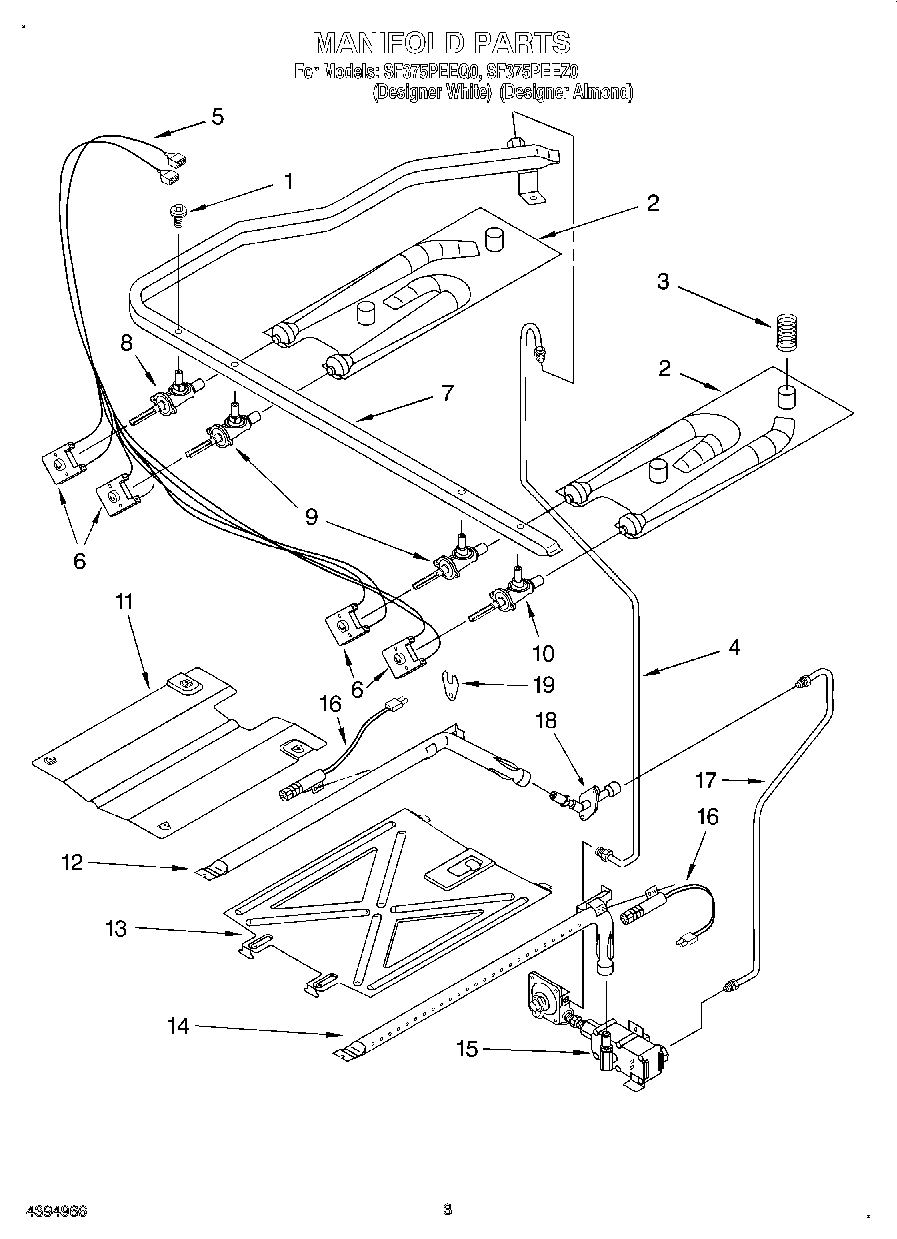

SF375PEEQ0 03 – MANIFOLD

Products

Position	Product
1	WP3186217 Whirlpool Screw
2	Plate, Venturi (Right Hand)
2	Plate, Venturi (Left Hand)
3	Spring, Seal (4)
4	Tubing (Manifold to Regulator)
5	Harness, Igniter (Incl. Switches)
6	Switch, Igniter (4)
7	Pipe, Manifold
8	Valve, 7,500 BTU (LR)
9	Valve, 9,500 BTU (LF, RF)
10	Valve, 6,500 BTU (RR)
11	W10137062 Whirlpool Burner Baffle
12	Burner, Broiler
13	WP3196175 Whirlpool Screw
13	Spreader, Flame
14	3196265 Whirlpool Oven Screw
14	Burner, Oven
15	Valve, Gas Combo
15	WP3196183 Whirlpool Screw
16	Igniter, Bake/Broil
16	W11684507 Whirlpool Screw
17	Tubing (Valve To Broiler Fitting)
18	Fitting, Broiler
19	Cover, Igniter
19	SCREW
