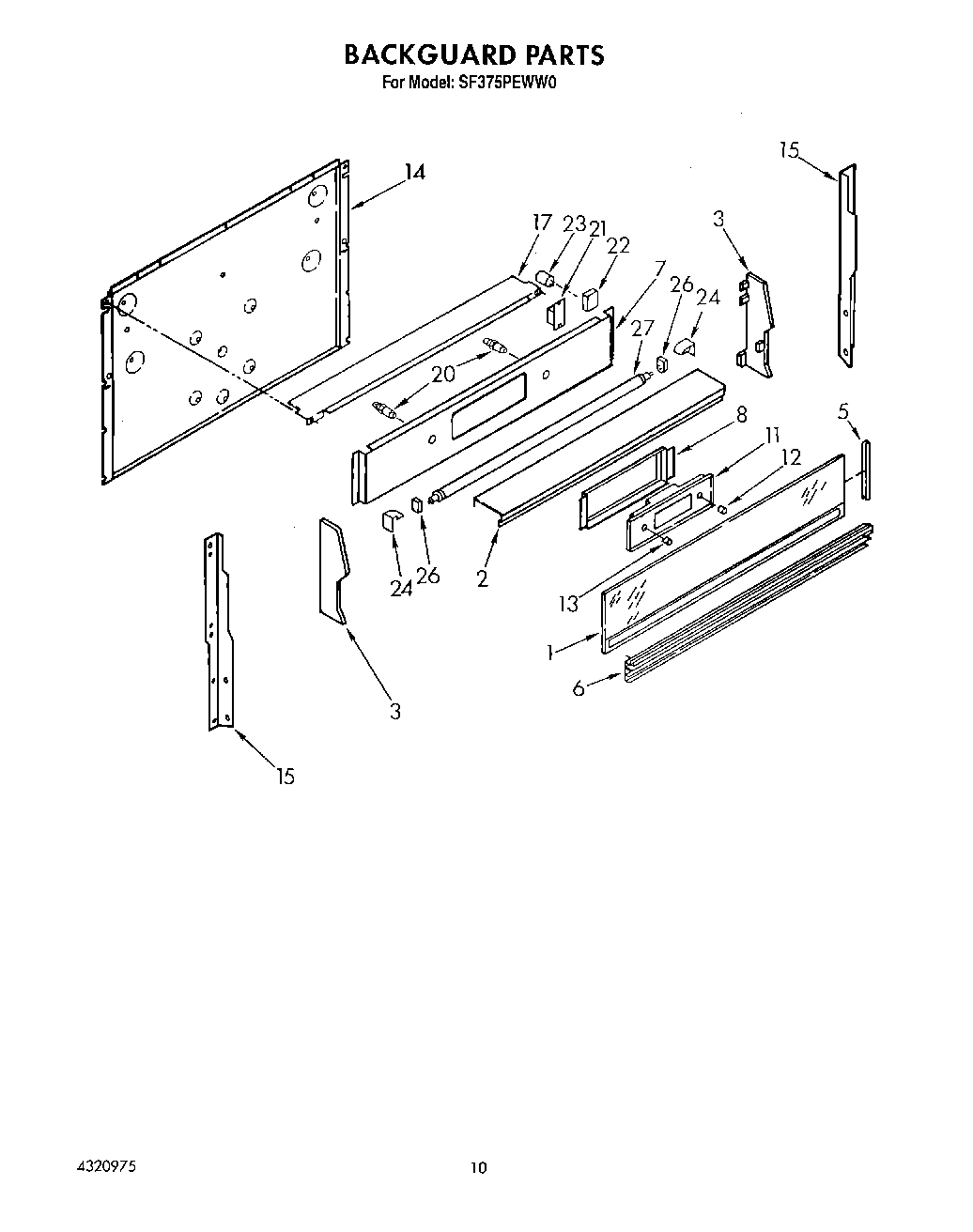

SF375PEWN0 07 – BACKGUARD, LITERATUREadmin2025-04-26T12:54:05+00:00SF375PEWN0 07 – BACKGUARD, LITERATURE
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| Instructions, Installation |
| 1 | Glass, Backguard |
| 2 | Trim, Backguard Top |
| 3 | End Cap (R.H.) |
| 3 | End Cap (L.H.) |
| 5 | Channel, Glass (2) |
| 6 | Trim, Lower |
| 7 | Panel, Control |
| 8 | Bracket, clip |
| 11 | Clock |
| 12 | Knob, Clock |
| 13 | Set Button (1) |
| 14 | Panel, Rear |
| 15 | Support L.H. |
| 15 | Support, R.H. |
| 17 | Shield, Heat |
| 20 | Light, Indicator (2) |
| 21 | Ballast |
| 22 | Socket, Starter |
| 23 | Starter, Fluorescent |
| 24 | Support, Lamp Socket (Right Side) |
| 24 | Support, Lamp Socket (Left Side) |
| 26 | Lampholder Fluorescent |
| 27 | Lamp, Fluorescent |
