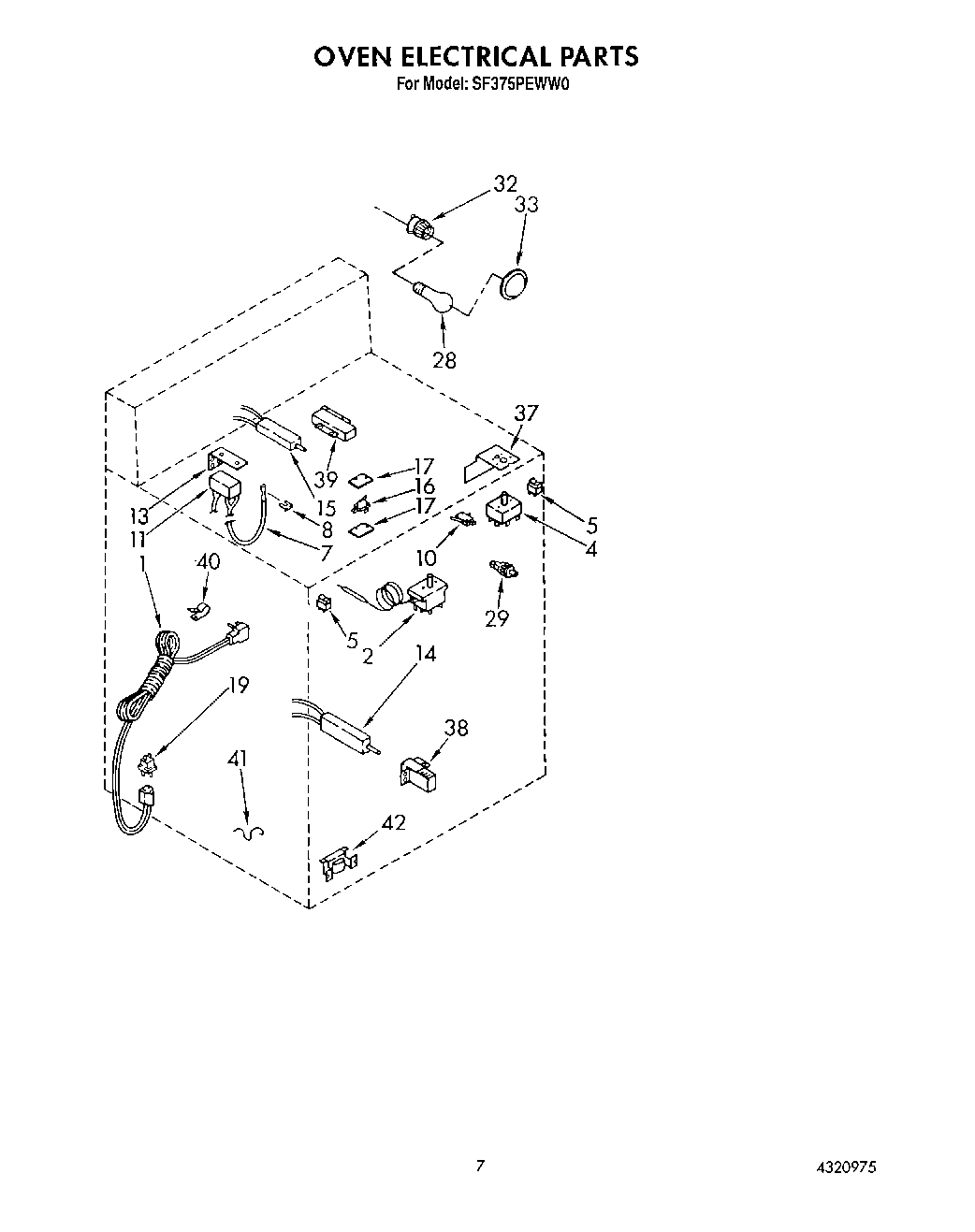

SF375PEWW0 05 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Thermostat, Oven
2	screw, 6-32 x 1/4 (2)
4	Switch, Selector
5	Switch, Rocker
7	4157608 Whirlpool Surface Igniter
8	WPY0070927 Whirlpool Microwave Clip
10	Nut
10	Screw, 4-40 X 5/8 (2)
10	switch, top burner actuator
11	Module, Spark
13	Bracket, Spark Module
14	786324 Whirlpool Flat Igniter
15	814269 Whirlpool Oven Flat Igniter
15	Nut, 6-32 (6)
15	screw, 4-40 x 5/8 (2)
16	Switch, Oven Door Latch
17	Insulator, Switch
19	Plug, Male
28	RANGE ONLY 40W 120V APPL BULB
29	Switch, Oven Door
33	WP74011278 Whirlpool Light
37	Insulator, Control (2)
38	Bracket, Bake Ignitor
39	Bracket, Broiler Ignitor
40	Clamp
41	Clip, Wire
42	Ballast
