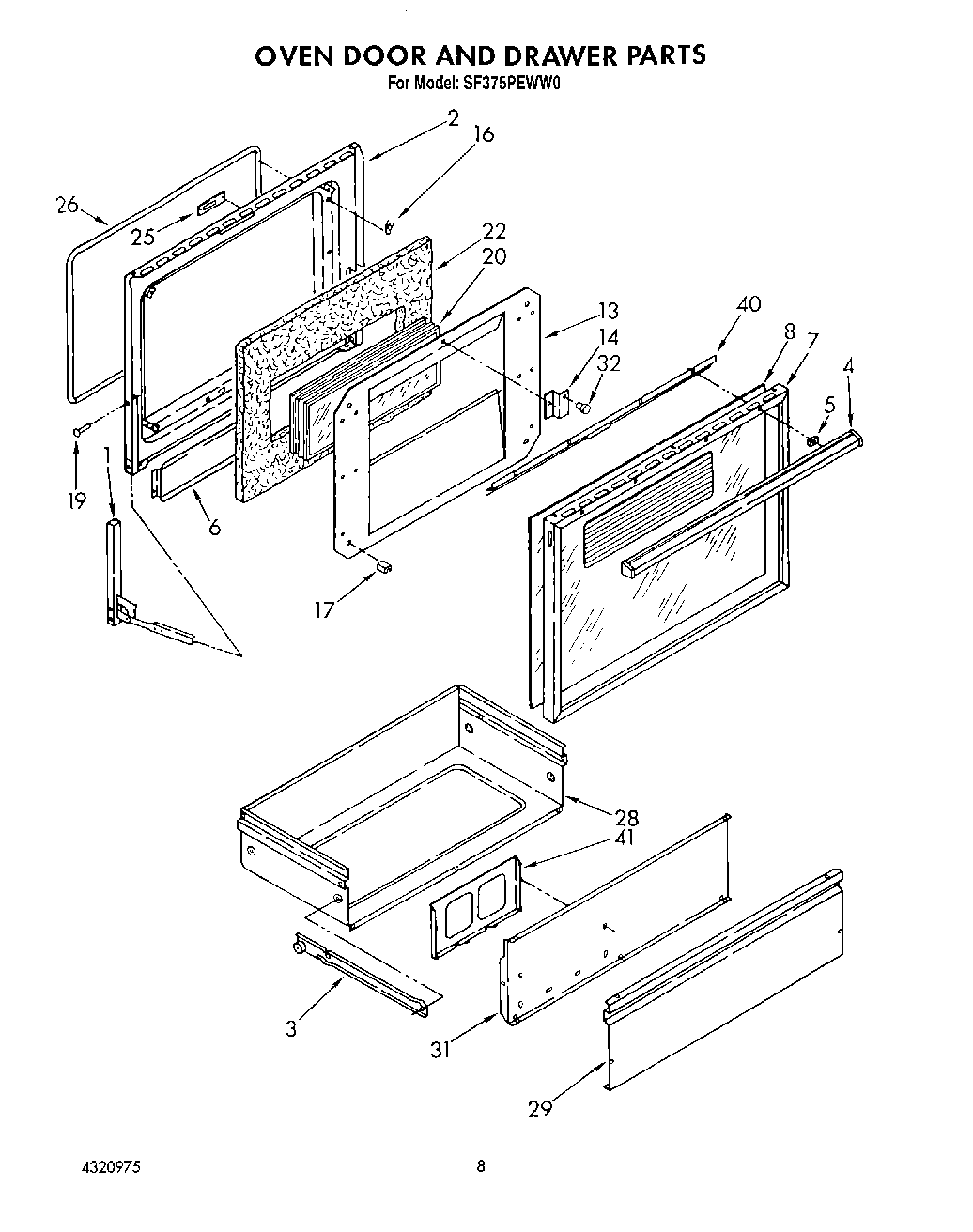

SF375PEWW0 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (L.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	WP308685 Whirlpool Microwave Screw
2	Pad, Oven Door
2	Screw, 8-32 X 5/8 (4)
3	Runner (R.H.)
3	runner (l.h.)
4	Handle
5	Spacer, Handle (2)
6	Baffle, Heat
7	Frame
8	Panel, Black Glass
13	Plate, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper, Window (2)
19	Pin, Hinge (2)
20	Retainer
20	Window Assembly
22	Insulation, Door
25	Plate, Latch
26	gasket assembly
28	Wrapper, Storage Drawer
29	Panel, Drawer (White)
29	Panel, Drawer (Almond)
31	Liner, Door Panel
32	Bumper, Rubber
40	Baffle, Air
41	Rack, Literature
