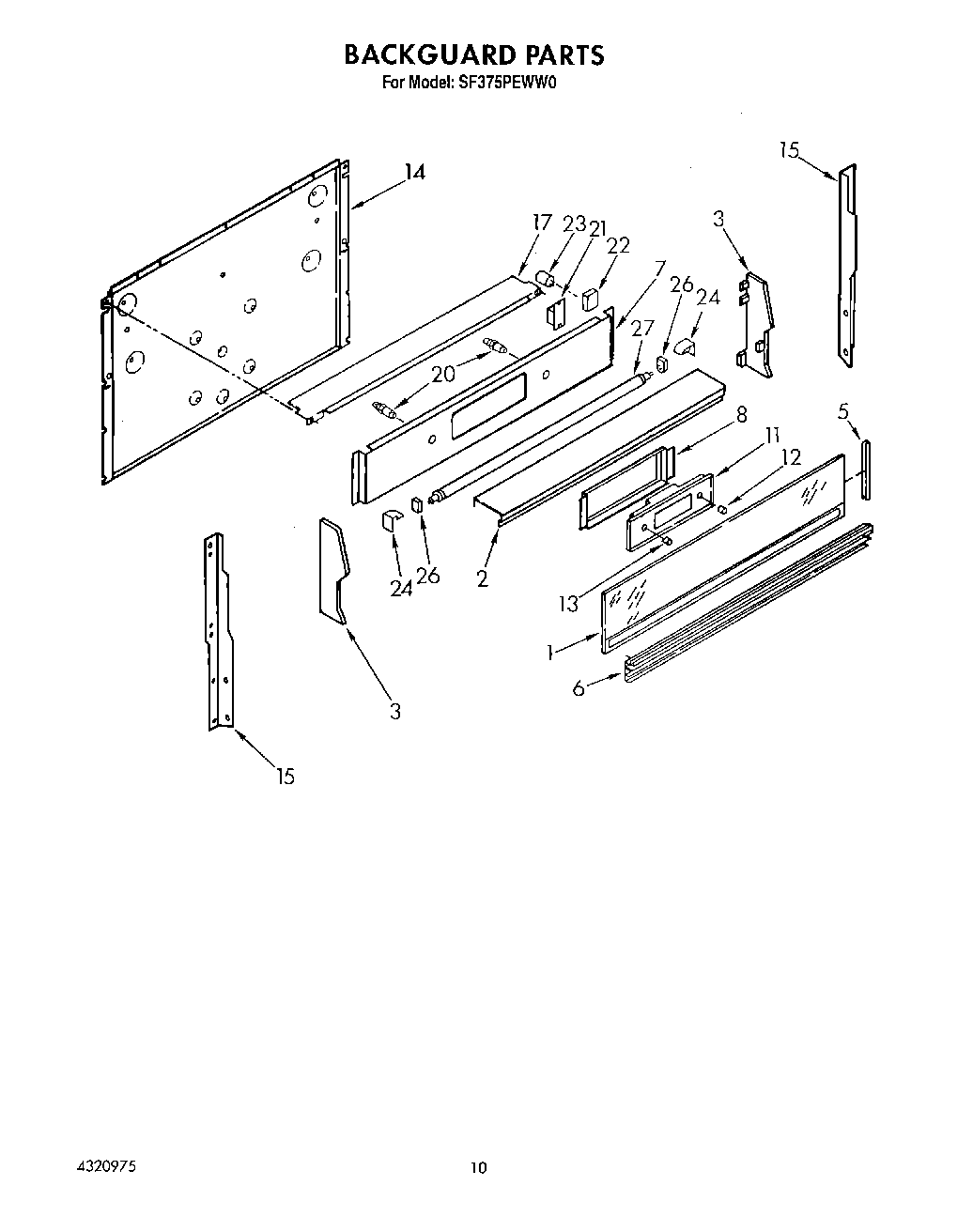

SF375PEWW0 07 – BACKGUARD, LITERATURE

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instructions, Installation
1	Glass, Backguard
2	Trim, Backguard Top
3	End Cap (R.H.)
3	End Cap (L.H.)
5	Channel, Glass (2)
6	Trim, Lower
7	Panel, Control
8	Bracket, clip
11	Clock
12	Knob, Clock
13	Set Button (1)
14	Panel, Rear
15	Support L.H.
15	Support, R.H.
17	Shield, Heat
20	Light, Indicator (2)
21	Ballast
22	Socket, Starter
23	Starter, Fluorescent
24	Support, Lamp Socket (Right Side)
24	Support, Lamp Socket (Left Side)
26	Lampholder Fluorescent
27	Lamp, Fluorescent
