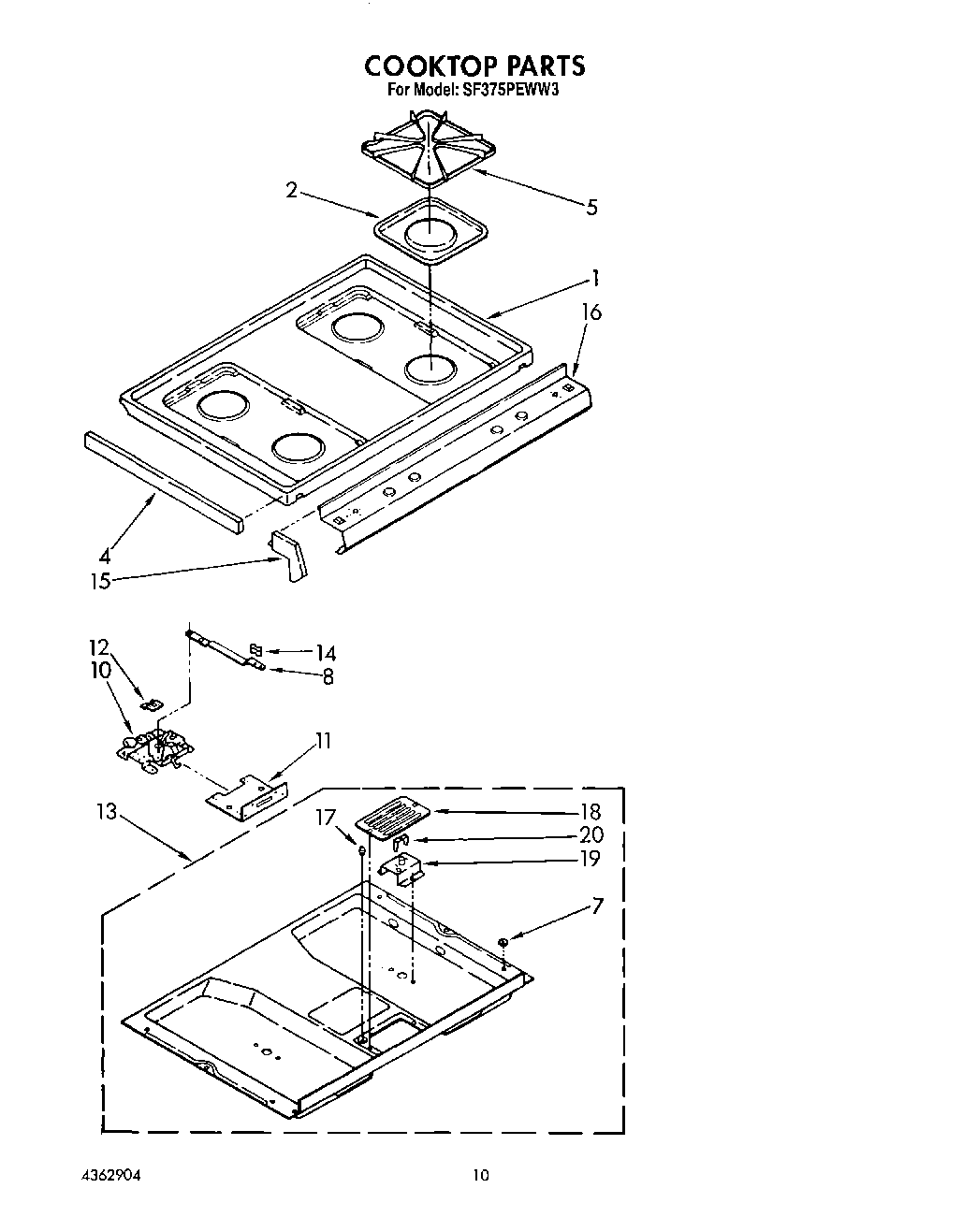

SF375PEWW3 08 – COOKTOP

Products

Position	Product
1	Top, Main (Almond)
1	Top, Main (White)
2	WPY0060872 Whirlpool Drip Pan
4	Trim, Main Top (Right Side)
4	Trim, Main Top (Left Side)
5	Grate (4)
7	Spacer, Nylon (4)
8	Handle, Latch
10	Latch Assembly
11	Bracket, Latch Mounting
12	screw, 4-40 (2)
12	Bracket, Switch
13	WP965173 Whirlpool Dishwasher Screw
13	Burner Box
14	Knob Latch
15	End Cap (Left)
15	End Cap (Right)
16	Panel, Control
17	LP Gas No. 58
18	Plate, Cover
19	Bracket, Top (2)
20	Bracket, Electrode (2)
