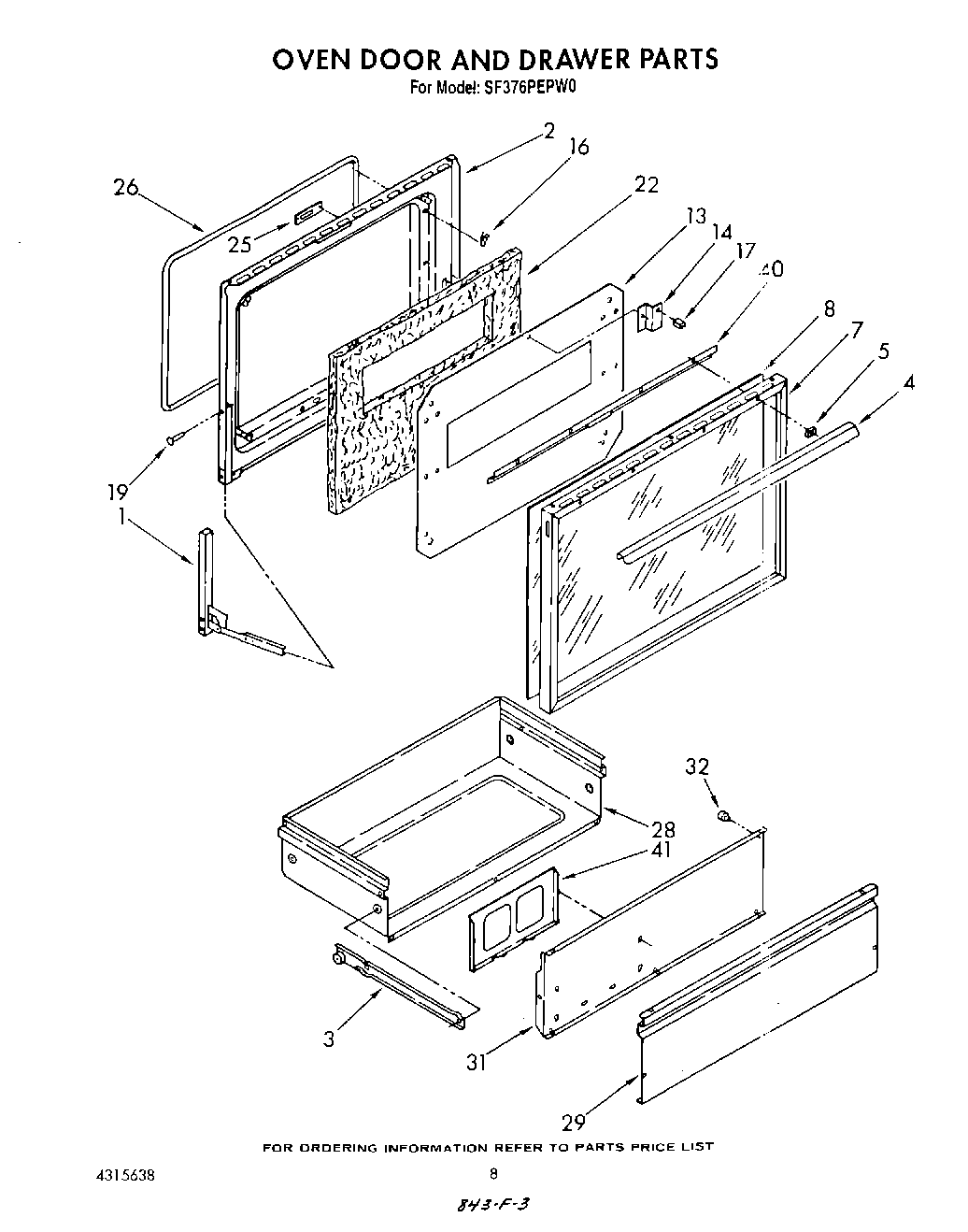

SF376PEPW0 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (R.H.)
1Hinge, Oven Door (Left Side)
2WP965173 Whirlpool Dishwasher Screw
2WP488130 Whirlpool Air Conditioner Nut
2WP308685 Whirlpool Microwave Screw
2Screw, 8-32 X 5/8 (4)
2Liner, Oven Door
3Storage Drawer Track (R.H.)
3Storage Drawer Track (L.H.)
4Spacer, Handle (4)
5Spacer, Handle (2)
7Frame, Oven Door
8Panel, White Glass
13Retainer, Insulation
14bracket, glass support (4)
16Clip, Speed (14)
17Bumper, Window (2)
19Pin, Hinge (2)
22Insulation, Door
25Plate, Latch
26Gasket Assembly
28Wrapper, Storage Drawer
29Panel, Drawer (Almond)
29Panel, Drawer (White)
29panel, drawer (toast)
29Panel, Drawer (Platinum)
31Liner, Front
32Bumper, Rubber
40Baffle, Air
41Rack, Literature
