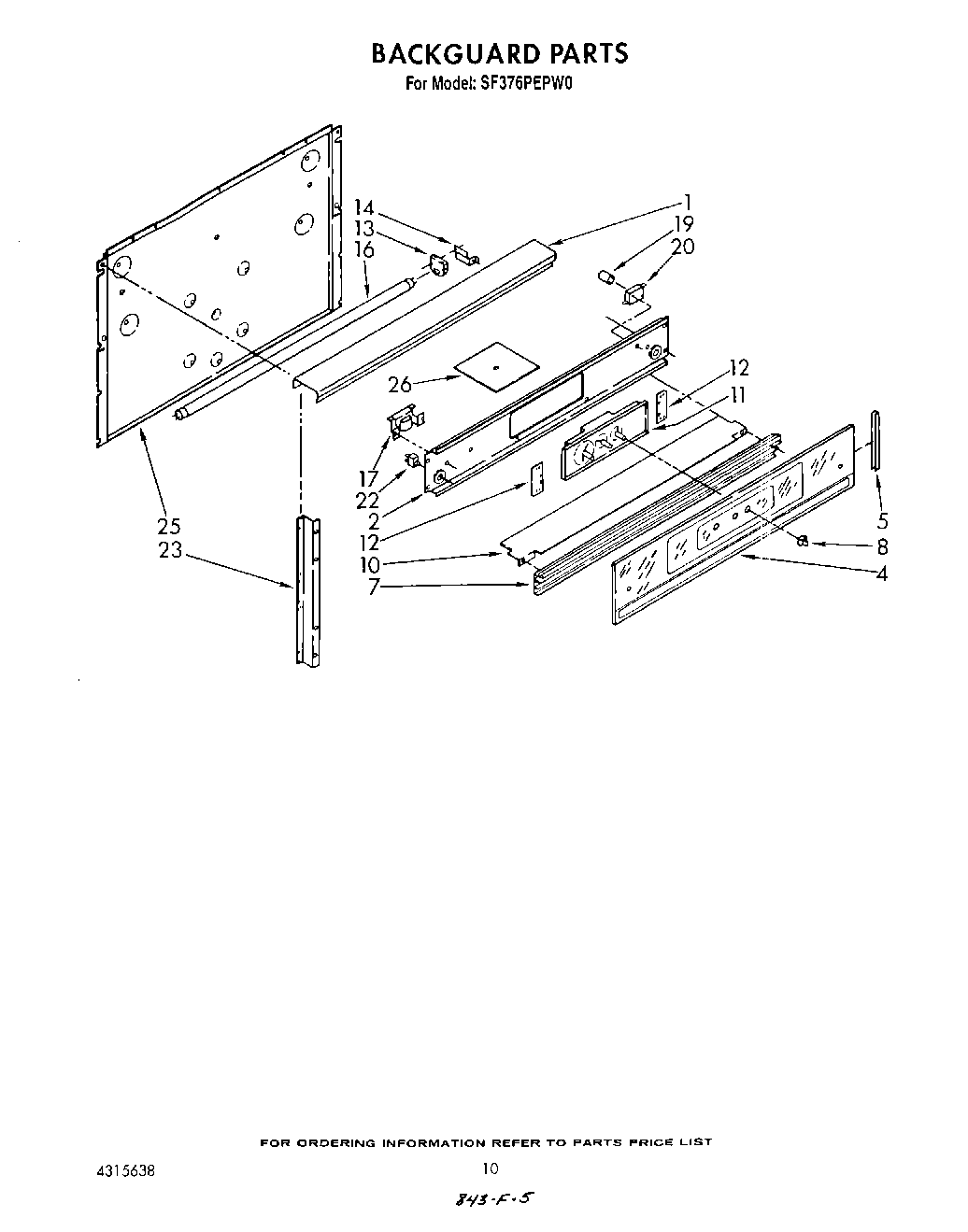

SF376PEPW0 07 – BACKGUARD , LIT/OPTIONAL

SF376PEPW0 07 – BACKGUARD , LIT/OPTIONAL

Written by

in

SF376PEPW0 07 – BACKGUARD , LIT/OPTIONAL

Products

PositionProduct
Guide, Cooking
Instructions, Installation
Guide, Use & Care
List, Repair Parts
1End Cap L.H.
1End Cap R.H.
1Trim, Top
2Panel, Control Mounting
4Glass, Control Panel
5Channel, Glass (2)
7Trim, Lower
8Knob, Clock (3)
10Shield, Heat
11Clock
12WPL 786706
13Lampholder Fluorescent
14Support, Lamp Socket (Right Side)
14Support, Lamp Socket (Left Side)
16Lamp, Fluorescent
17Ballast
19Starter, Fluorescent
20Socket, Starter
22Indicator Light
23Support, Control Panel (2)
25Panel, Cover
26Insulation, Oven Light
