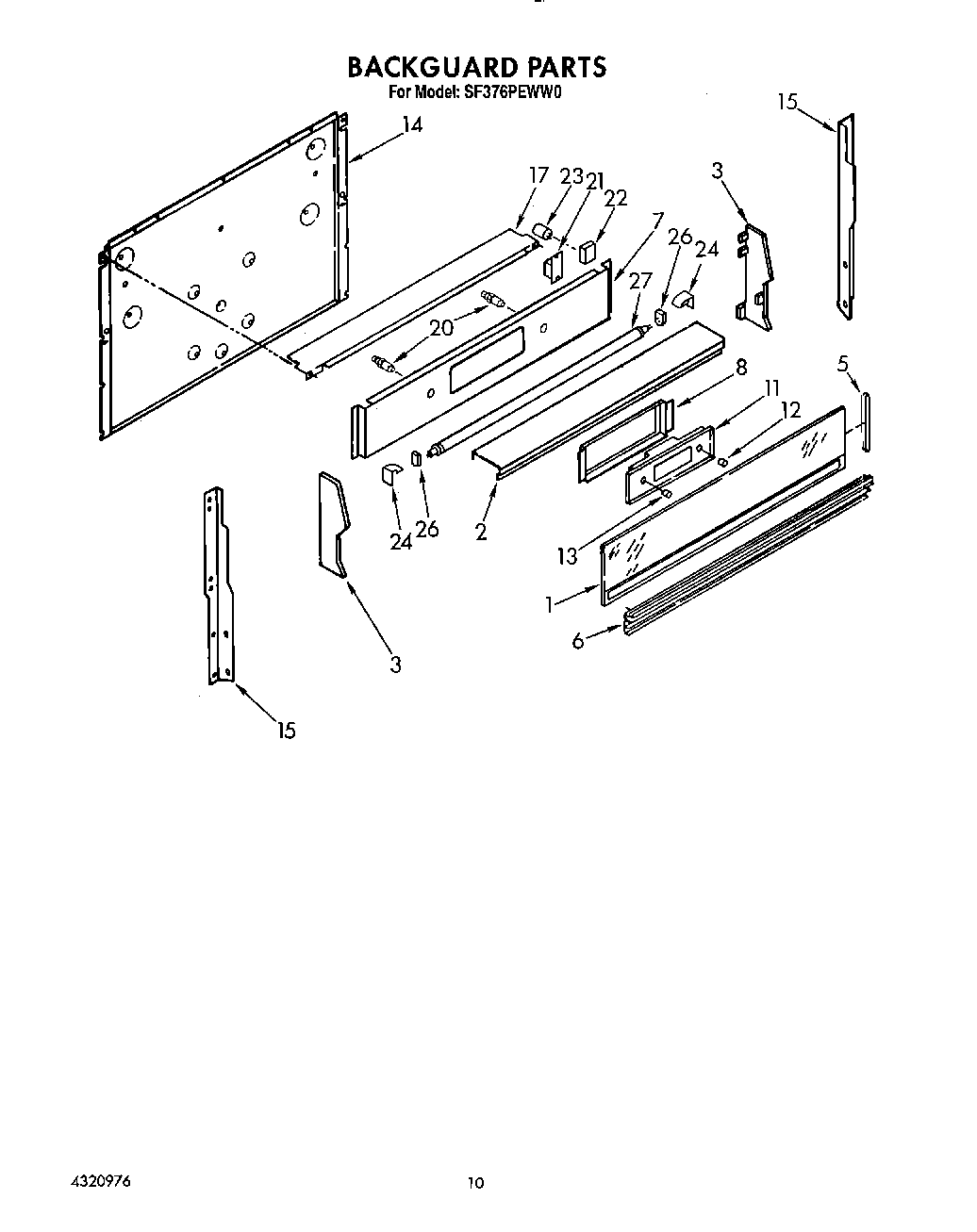

SF376PEWW0 07 – BACKGUARD, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instructions, Installation
1	Glass, Backguard
2	Trim, Backguard
3	End Cap (L.H.)
3	End Cap (R.H.)
5	Channel, Glass (2)
6	Trim, Lower
7	Panel, Control
8	Bracket, clip
11	Clock
12	Knob, Clock
13	Button. Set
14	Panel, Rear
15	Support, R.H.
15	Support L.H.
17	Shield, Heat
20	Light, Indicator (2)
21	Ballast
22	Socket, Starter
23	Starter, Fluorescent
24	Support, Lamp Socket (Left Side)
24	Support, Lamp Socket (Right Side)
26	Lampholder Fluorescent
27	Lamp, Fluorescent
