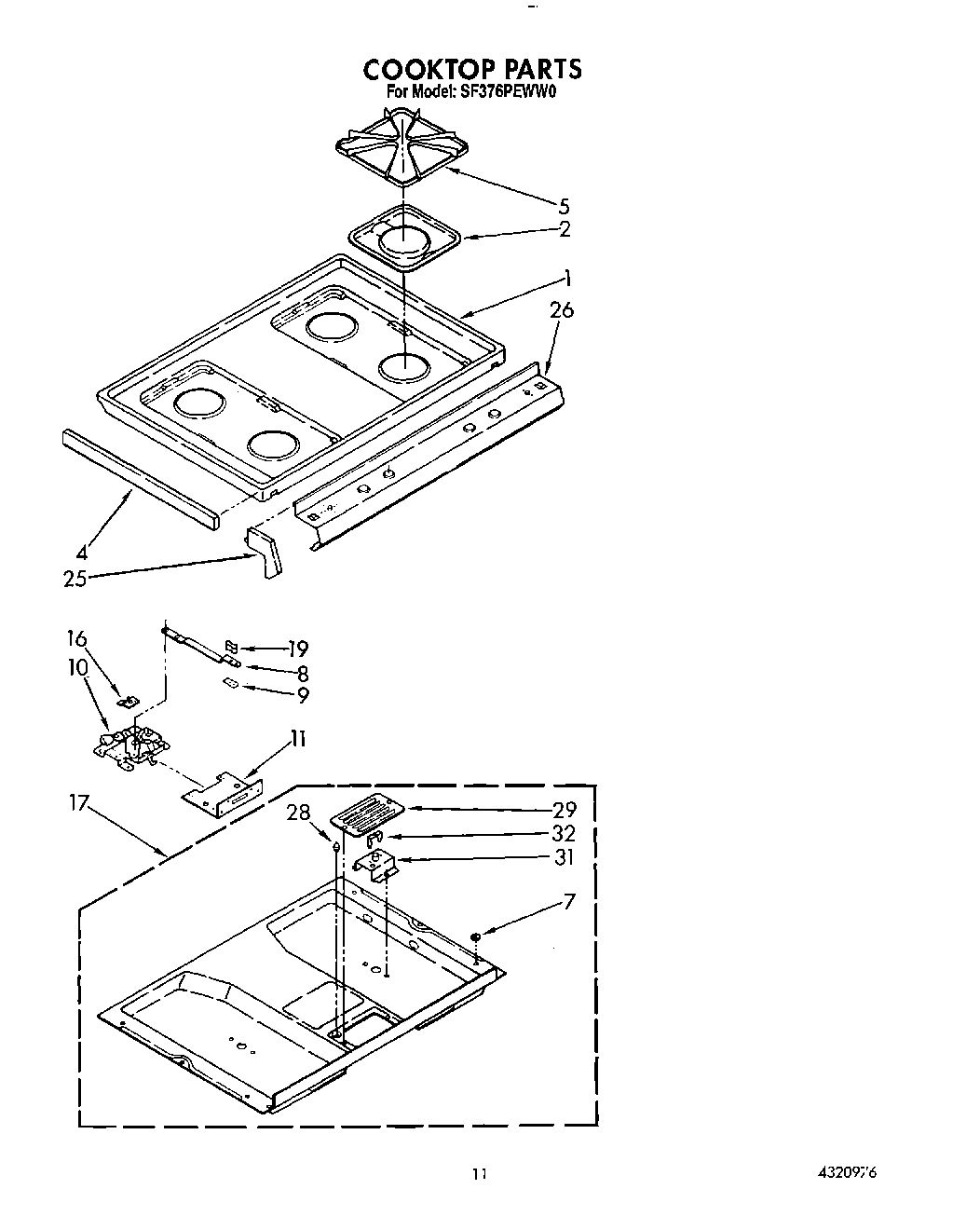

SF376PEWW0 08 – COOKTOP

Products

Position	Product
1	Top, Main (White)
2	WPY0060872 Whirlpool Drip Pan
4	Trim, Main Top (Right Side)
4	Trim, Main Top (Left Side)
5	Panel, Broiler (White)
7	Spacer, Nylon (4)
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Latch Mounting
16	screw, 4-40 (2)
16	Bracket, Switch
17	WP965173 Whirlpool Dishwasher Screw
17	Burner Box
19	Knob, Latch Handle (White)
25	End Cap (Left)
25	End Cap (Right)
26	Panel, Control
28	LP Gas No. 58
29	Plate, Cover
31	Bracket, Top (2)
32	Bracket, Electrode (2)
