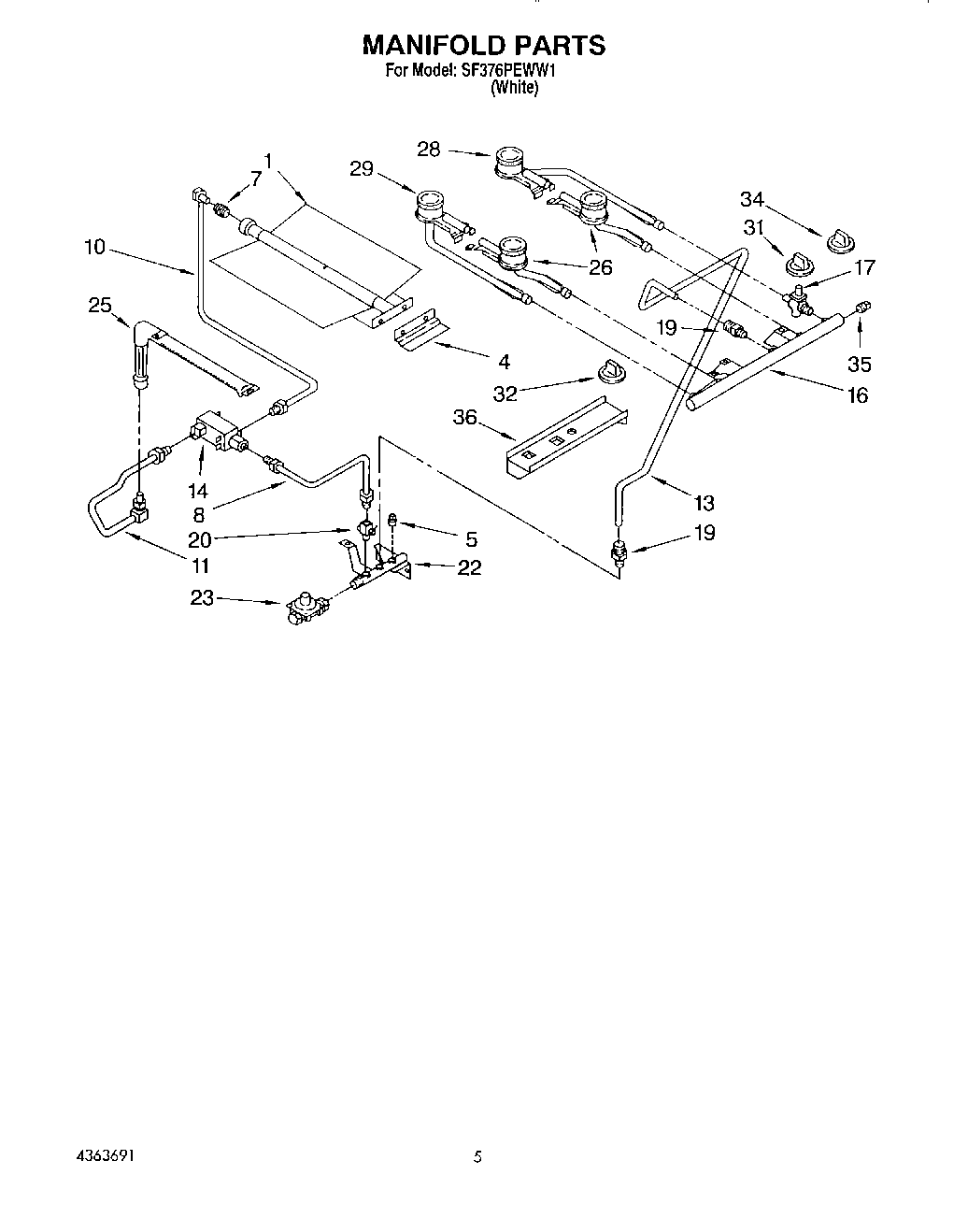

SF376PEWW1 03 – MANIFOLD

Products

PositionProduct
1Burner, Broiler
1Nut, 6-32 (6)
4Support, Burner Mounting
5W10295523 Whirlpool Plug
7Natural Gas No. 51.
7LP Gas No. 58
8Tubing, (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11hood & tubing assembly (gas valve to lower oven burner)
11Nut, Lock
13tubing (inlet to manifold)
14Valve, Dual Gas Valve
16Plate, Cover
17Valve, Top Burner (Tri-Set)
19Fitting
20Valve, Shut-Off
22Inlet, Gas
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
28Top Burner, R.R.
29Top Burner, L.R.
31Knob, Top Burner (4) (White)
32Knob, Oven Control
34Knob, Selector ((White Model))
35Pipe Plug, 3/8 NPT
36shelf, gas valve
