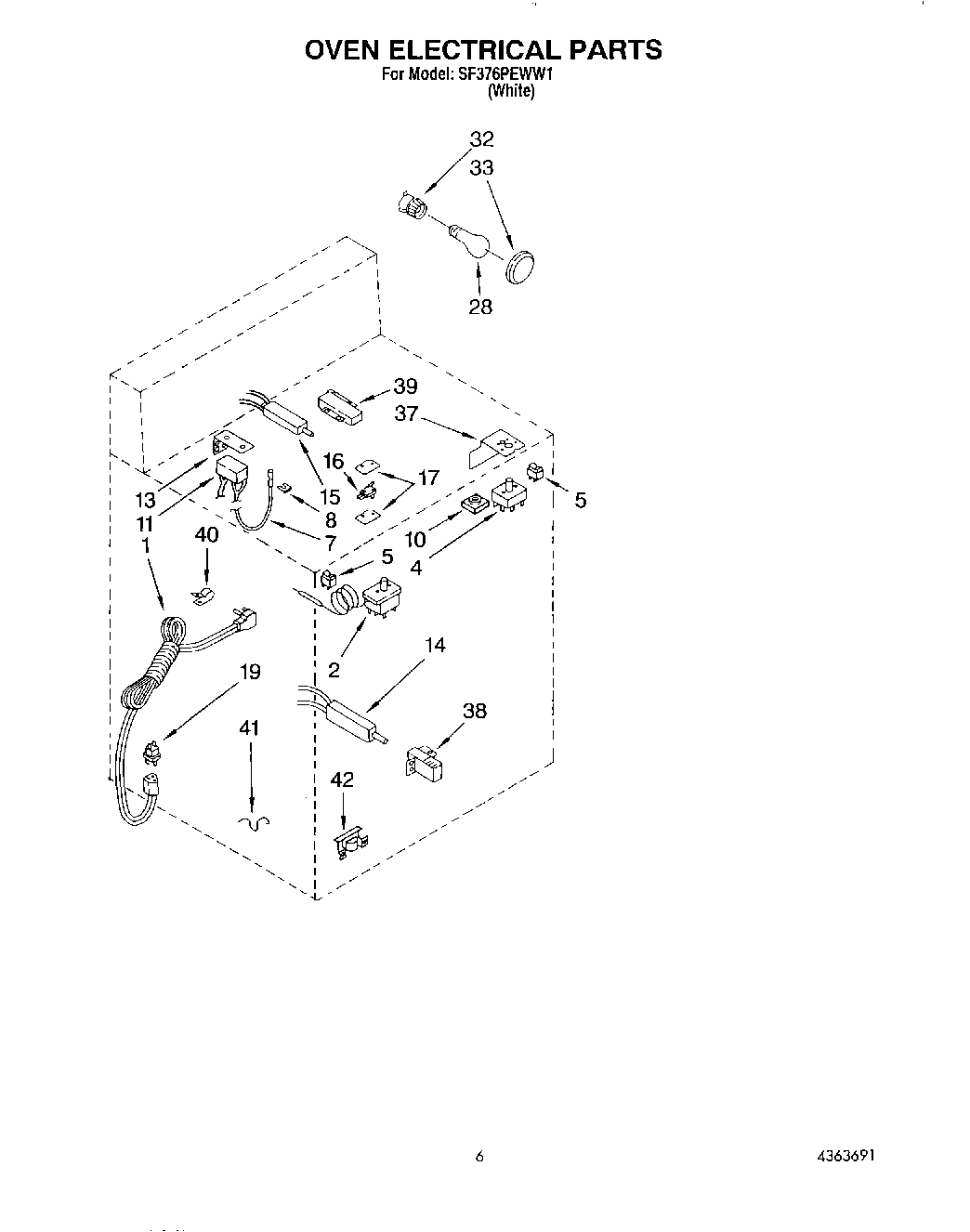

SF376PEWW1 04 – OVEN ELECTRICAL
Written by
in
SF376PEWW1 04 – OVEN ELECTRICAL
Products
Position
Product
1
Cord, Power
2
Thermostat, Oven
2
screw, 6-32 x 1/4 (2)
4
Switch, Selector
5
Switch, Rocker (White)
7
4157608 Whirlpool Surface Igniter
8
WPY0070927 Whirlpool Microwave Clip
10
Screw, 4-40 X 5/8 (2)
10
Nut
10
switch, top burner actuator
11
Module, Spark
13
Bracket, Spark Module
14
786324 Whirlpool Flat Igniter
15
814269 Whirlpool Oven Flat Igniter
15
screw, 4-40 x 5/8 (2)
15
Nut, 6-32 (6)
16
Switch, Oven Door Latch
17
Insulator, Switch
19
Plug, Male
28
RANGE ONLY 40W 120V APPL BULB
33
WP74011278 Whirlpool Light
37
Insulator, Control (2)
38
Bracket, Bake Ignitor
39
Bracket, Broiler Ignitor
40
Clamp
41
Clip, Wire
42
Ballast
←
