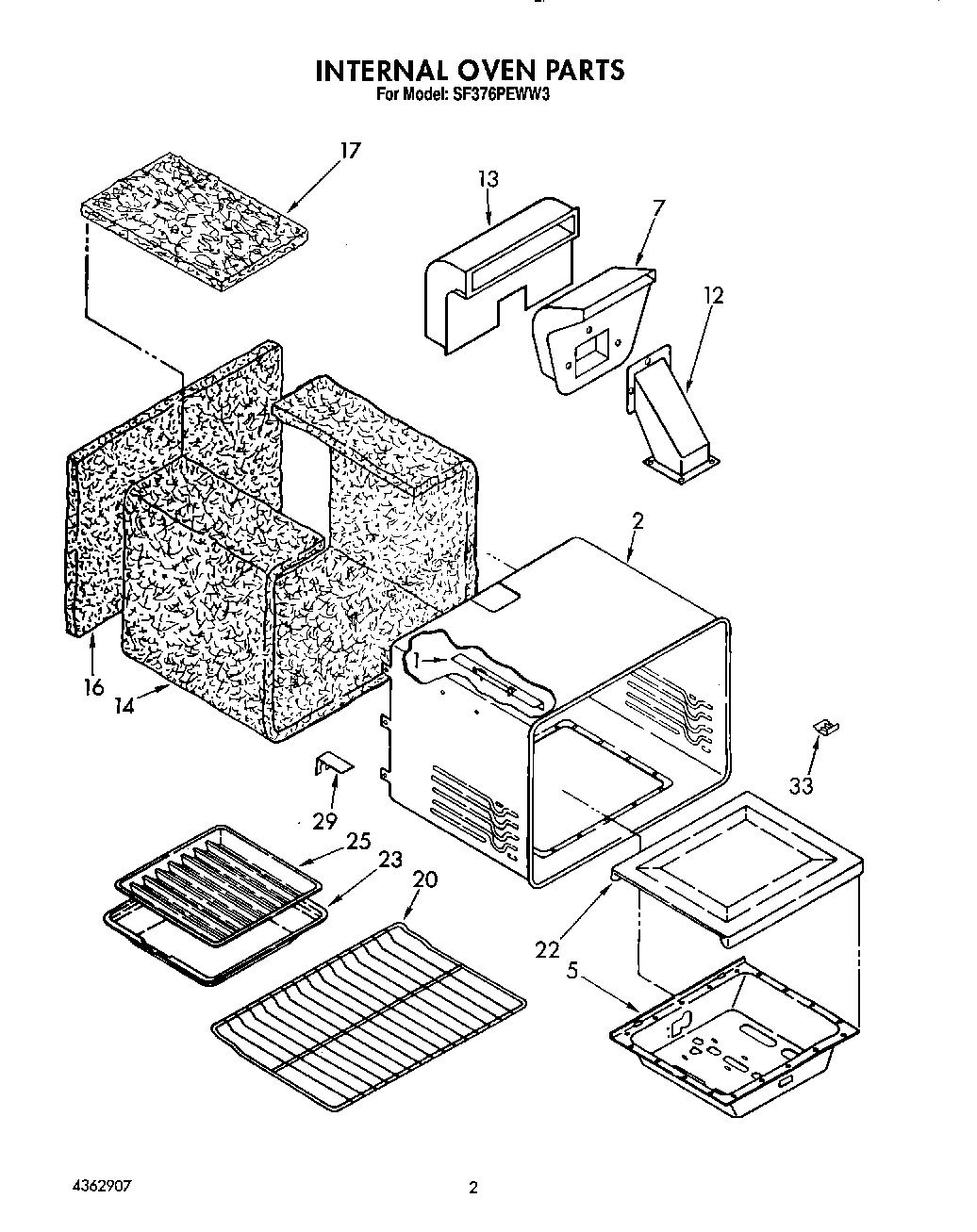

SF376PEWW3 02 – INTERNAL OVEN

Products

Position	Product
1	Sheild, Thermostat Bulb
2	Oven 30“ Self-Clean
5	Burner, Box, Lower
7	Flue, Inner
12	Vent
12	Gasket, Vent
13	Flue, Dillution
14	WPW10208653 Whirlpool Insulation
20	Rack, Oven (2)
22	Bottom, Oven
23	Pan, Broiler
25	Grid, Broiler
29	bracket, oven shell
33	Cover, Chip
