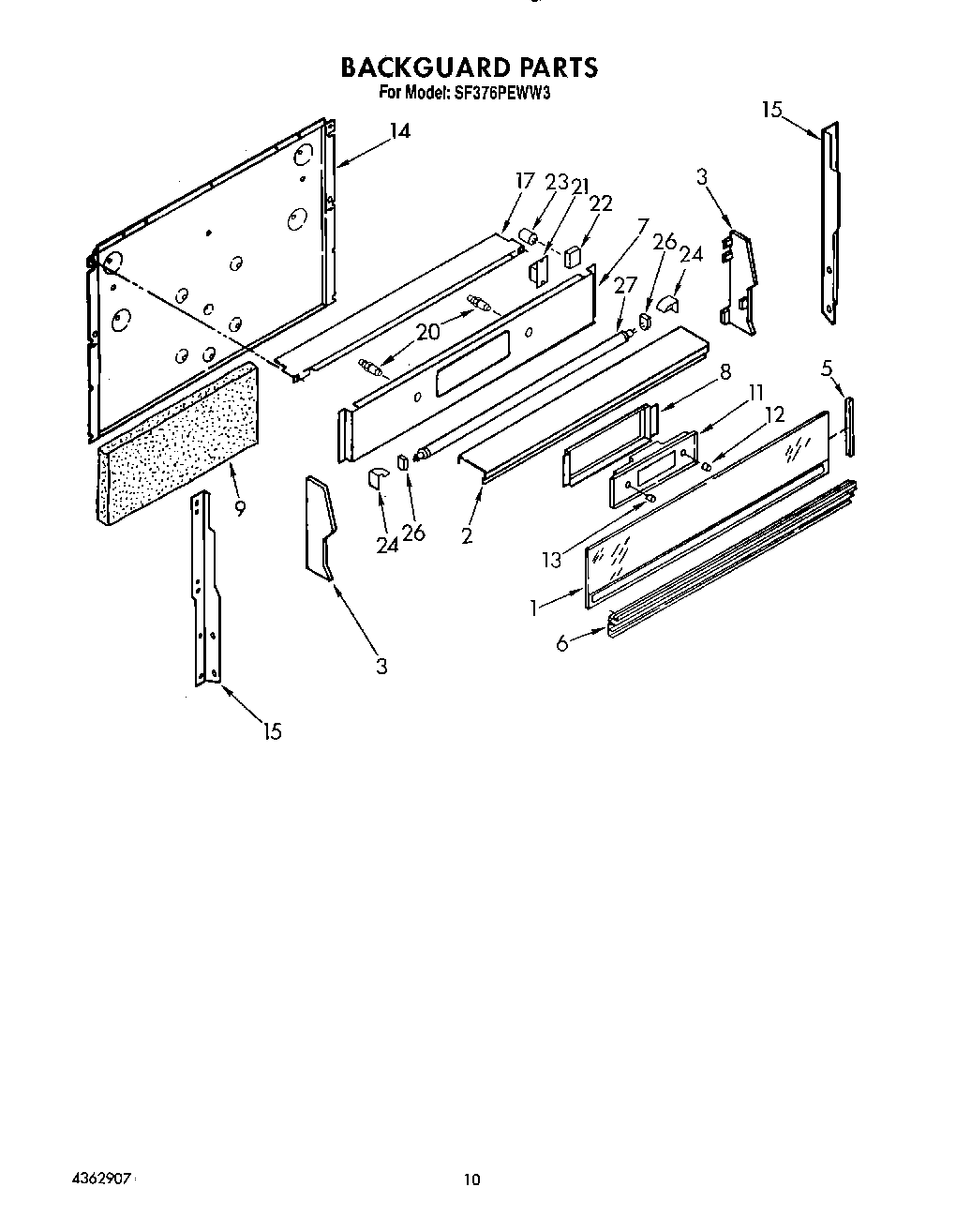

SF376PEWW3 07 – BACKGUARD, LIT/OPTIONAL

Products

Position	Product
	Instructions, Installation
	List, Repair Parts
	Guide, Use & Care
1	Glass, Backguard
2	Trim, Top (White)
3	End Cap (L.H.)
3	End Cap (R.H.)
5	Channel, Glass (2)
6	Trim, Lower
7	Panel, Control
8	Bracket, clip
9	insulation, backguard
11	Clock
12	Knob, Clock
13	Button. Set
14	Shield, Heat
15	Support, R.H.
15	Support L.H.
17	Shield, Heat
20	Light, Indicator (2)
21	Ballast
22	Socket, Starter
23	Starter, Fluorescent
24	Support, Lamp Socket (Left Side)
24	Support, Lamp Socket (Right Side)
26	Lampholder Fluorescent
27	Lamp, Fluorescent
