SF377PEGB5 02 – CONTROL PANEL

SF377PEGB5 02 – CONTROL PANEL

Written by

in

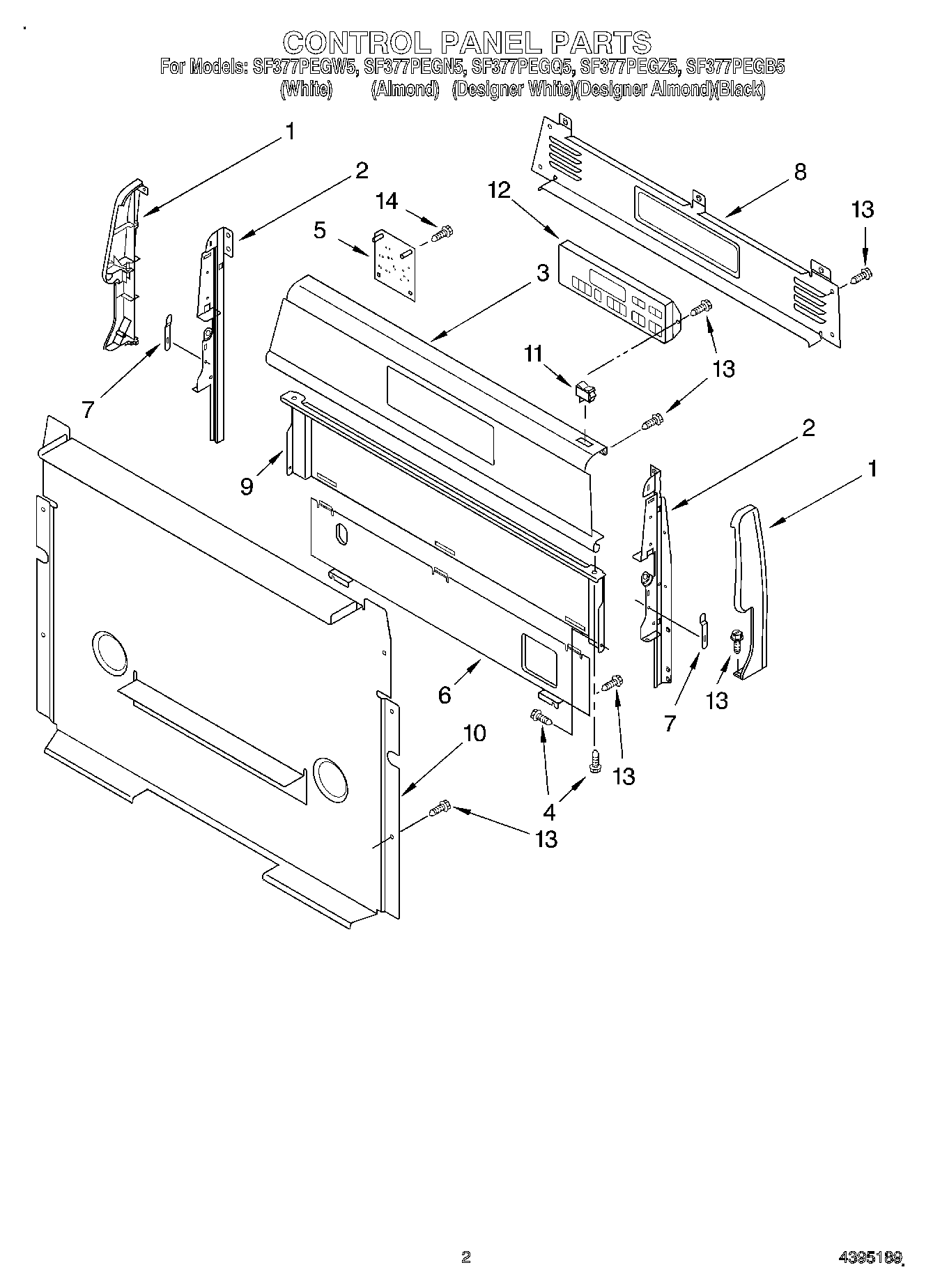

SF377PEGB5 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Almond Right Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
3Panel, Backguard (Black)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP4314961 Whirlpool Lite Switch
113149360 Whirlpool Light Switch
11Switch, Rocker (Almond)
12WP6610449 Whirlpool Electronic Control Board
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WP3368921 Whirlpool Screw
