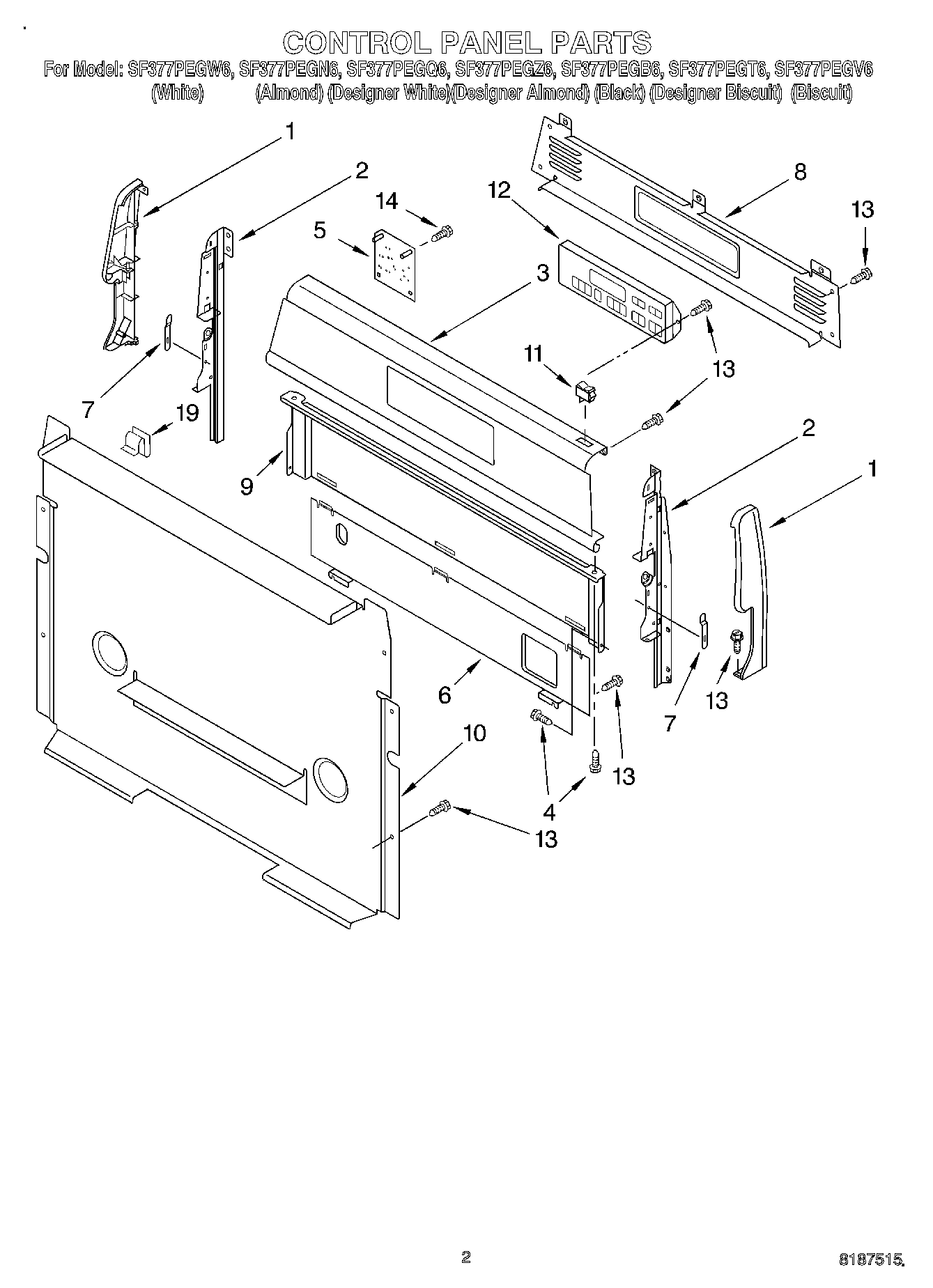

SF377PEGB6 02 – CONTROL PANEL

SF377PEGB6 02 – CONTROL PANEL

Written by

in

SF377PEGB6 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (Almond Right Hand)
1Endcap (Almond Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Almond)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
113149360 Whirlpool Light Switch
11WP4314961 Whirlpool Lite Switch
11Switch, Rocker (Biscuit)
11Switch, Rocker (Almond)
12Control, Range (Biscuit)
12WP6610449 Whirlpool Electronic Control Board
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WP3368921 Whirlpool Screw
19WP8273564 Whirlpool Clip
