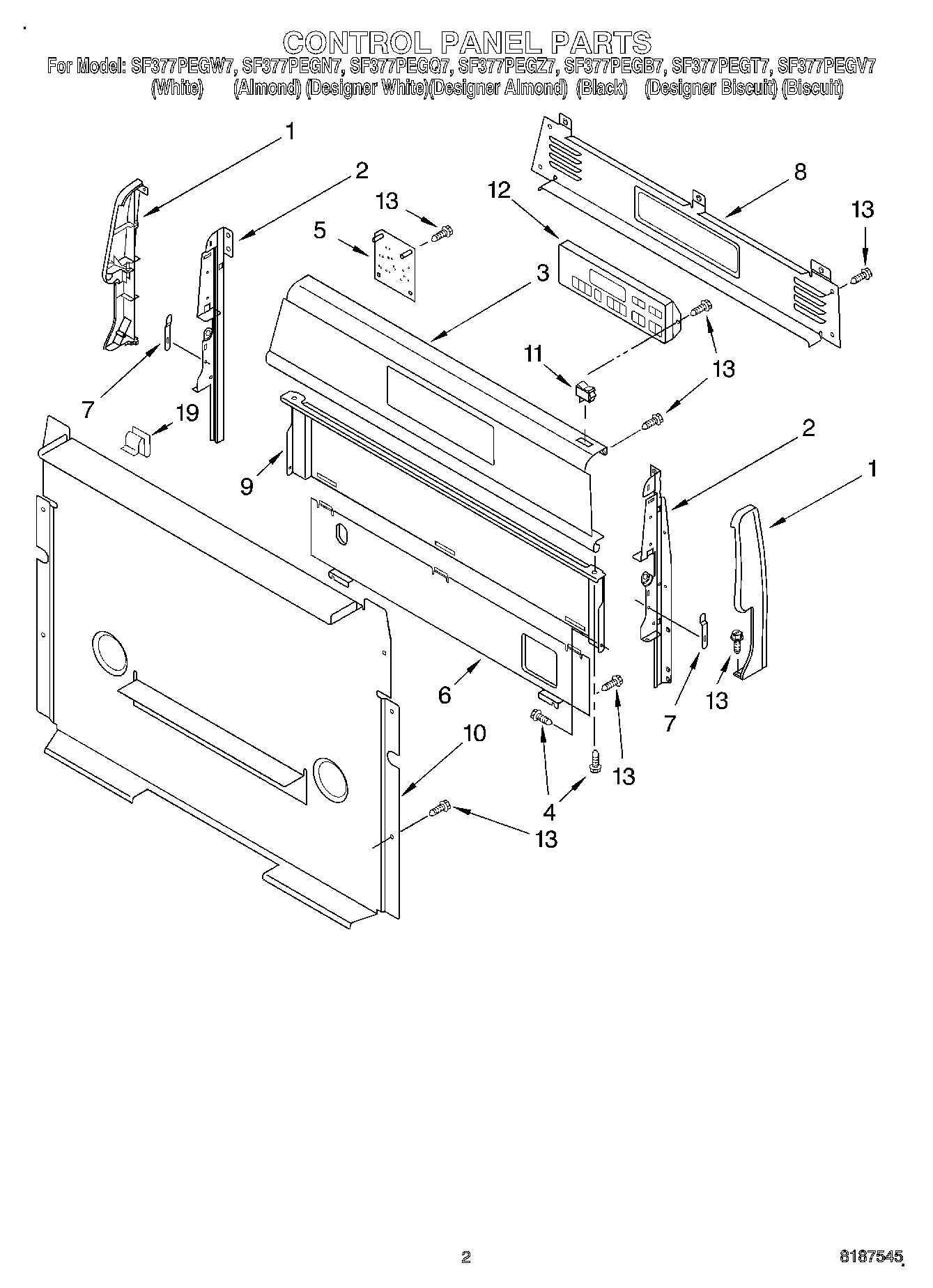

SF377PEGT7 02 – CONTROL PANELadmin2025-04-26T13:04:51+00:00SF377PEGT7 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Endcap (Biscuit Right Hand) |
| 1 | Endcap (Biscuit Left Hand) |
| 1 | Endcap, Right Hand (Black) |
| 1 | Endcap (Almond Right Hand) |
| 1 | Endcap (Almond Left Hand) |
| 1 | Endcap (White Right Hand) |
| 1 | Endcap (White Left Hand) |
| 1 | Endcap (Black Left Hand) |
| 2 | Support, Endcap (Left Hand) |
| 2 | Support, Endcap (Right Hand) |
| 3 | Panel, Backguard (Black) |
| 3 | Panel, Backguard (White) |
| 3 | Panel, Backguard (Almond) |
| 3 | Panel, Backguard (Biscuit) |
| 4 | Screw |
| 5 | WPW10331686 Whirlpool Oven Spark Module |
| 6 | 8053505 Whirlpool Oven Shield |
| 7 | 3196200 Whirlpool Clip |
| 8 | Cover, Upper |
| 9 | Shield, Heat |
| 10 | Cover, Lower |
| 11 | Switch, Rocker (Almond) |
| 11 | Switch, Rocker (Biscuit) |
| 11 | 3149360 Whirlpool Light Switch |
| 11 | WP4314961 Whirlpool Lite Switch |
| 12 | Control, Range (Biscuit) |
| 12 | WP6610449 Whirlpool Electronic Control Board |
| 12 | Control, Range (White) |
| 12 | Control, Range (Almond) |
| 13 | SCREW |
| 19 | WP8273564 Whirlpool Clip |
