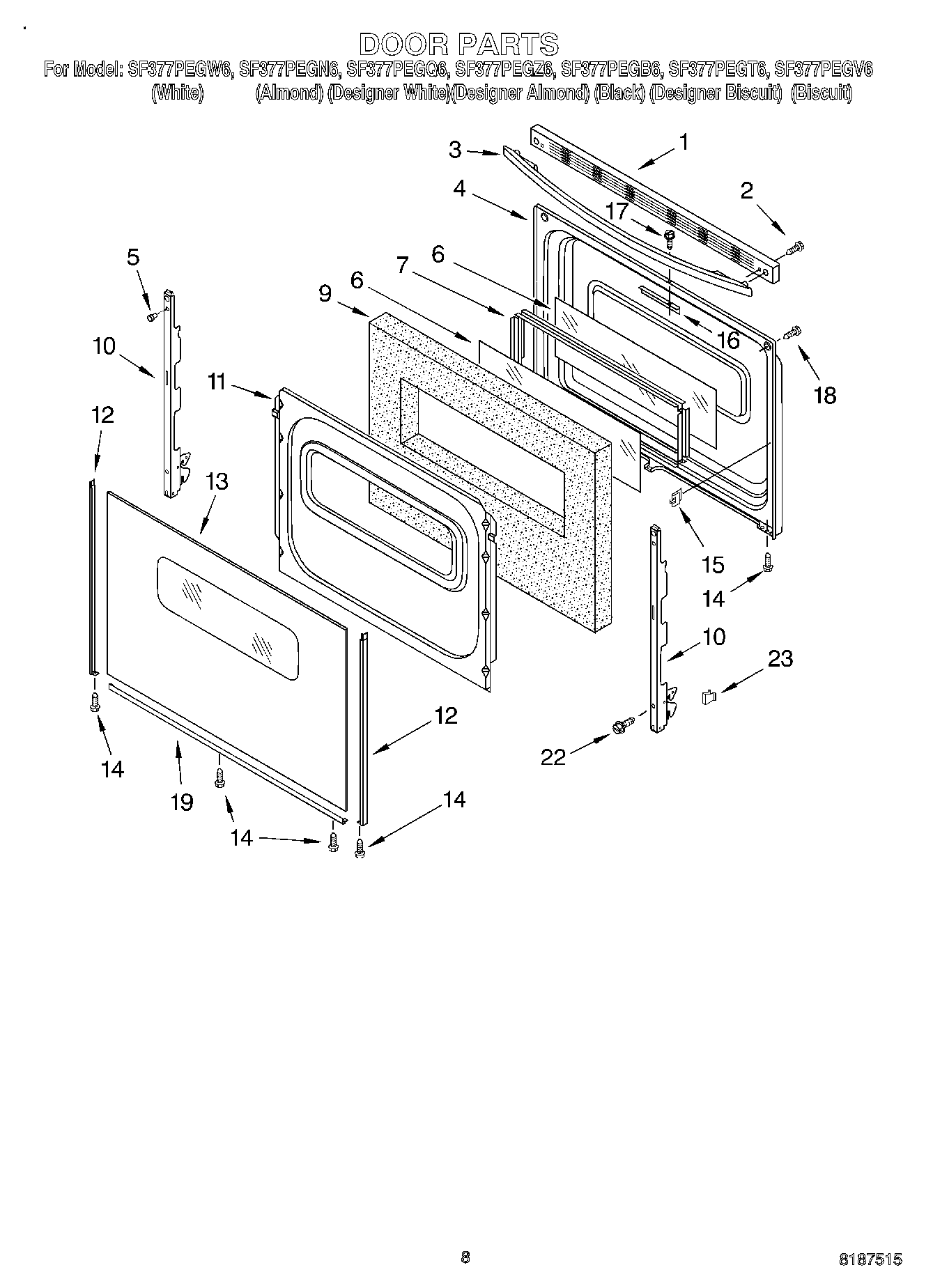

SF377PEGW6 06 – DOOR

SF377PEGW6 06 – DOOR

Written by

in

SF377PEGW6 06 – DOOR

Products

Position	Product
1	Trim, Top (Biscuit)
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
5	238614 Whirlpool Bumper Hinge
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	9761499 Whirlpool Oven Retainer
13	Glass, Door (Biscuit)
13	WP9762477 Whirlpool Glass Door
13	WP9762476 Whirlpool Door Glass
13	Glass, Outer Door (Almond)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	8184860 Whirlpool Oven Door Trim
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
19	8184858 Whirlpool Door Trim
22	WP3196175 Whirlpool Screw
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	242831 Whirlpool Oven Wire
23	WPL 8272465
23	3196896 Whirlpool Clip
23	WPL 8053527
23	WPL 8054085
23	WPL 8054086
23	4392901 Whirlpool Biscuit Spray Paint
23	WPL 8273341
23	WPL 8273974
23	Grease
23	3196696 Whirlpool Clip
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	350942 Whirlpool Spray Paint
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	8212471 Whirlpool Oven Paint
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	WP3196925 Whirlpool Clip Assembly
23	814381 Whirlpool Pin
23	350930 Whirlpool White Spray Paint
