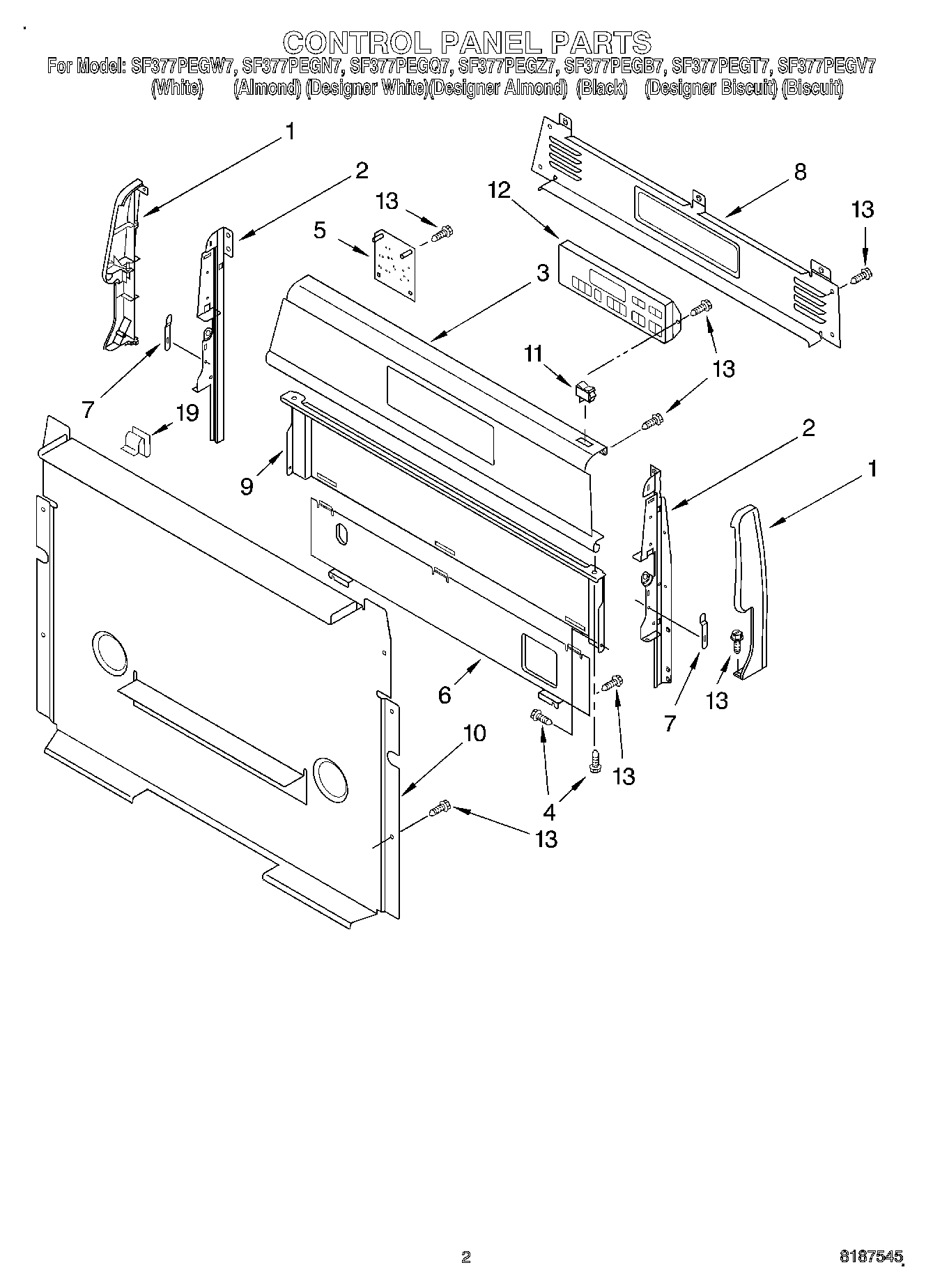

SF377PEGW7 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Biscuit Right Hand)
1	Endcap (Biscuit Left Hand)
1	Endcap, Right Hand (Black)
1	Endcap (Almond Right Hand)
1	Endcap (Almond Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
1	Endcap (Black Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
3	Panel, Backguard (Almond)
3	Panel, Backguard (Biscuit)
4	Screw
5	WPW10331686 Whirlpool Oven Spark Module
6	8053505 Whirlpool Oven Shield
7	3196200 Whirlpool Clip
8	Cover, Upper
9	Shield, Heat
10	Cover, Lower
11	Switch, Rocker (Almond)
11	Switch, Rocker (Biscuit)
11	3149360 Whirlpool Light Switch
11	WP4314961 Whirlpool Lite Switch
12	Control, Range (Biscuit)
12	WP6610449 Whirlpool Electronic Control Board
12	Control, Range (White)
12	Control, Range (Almond)
13	SCREW
19	WP8273564 Whirlpool Clip
