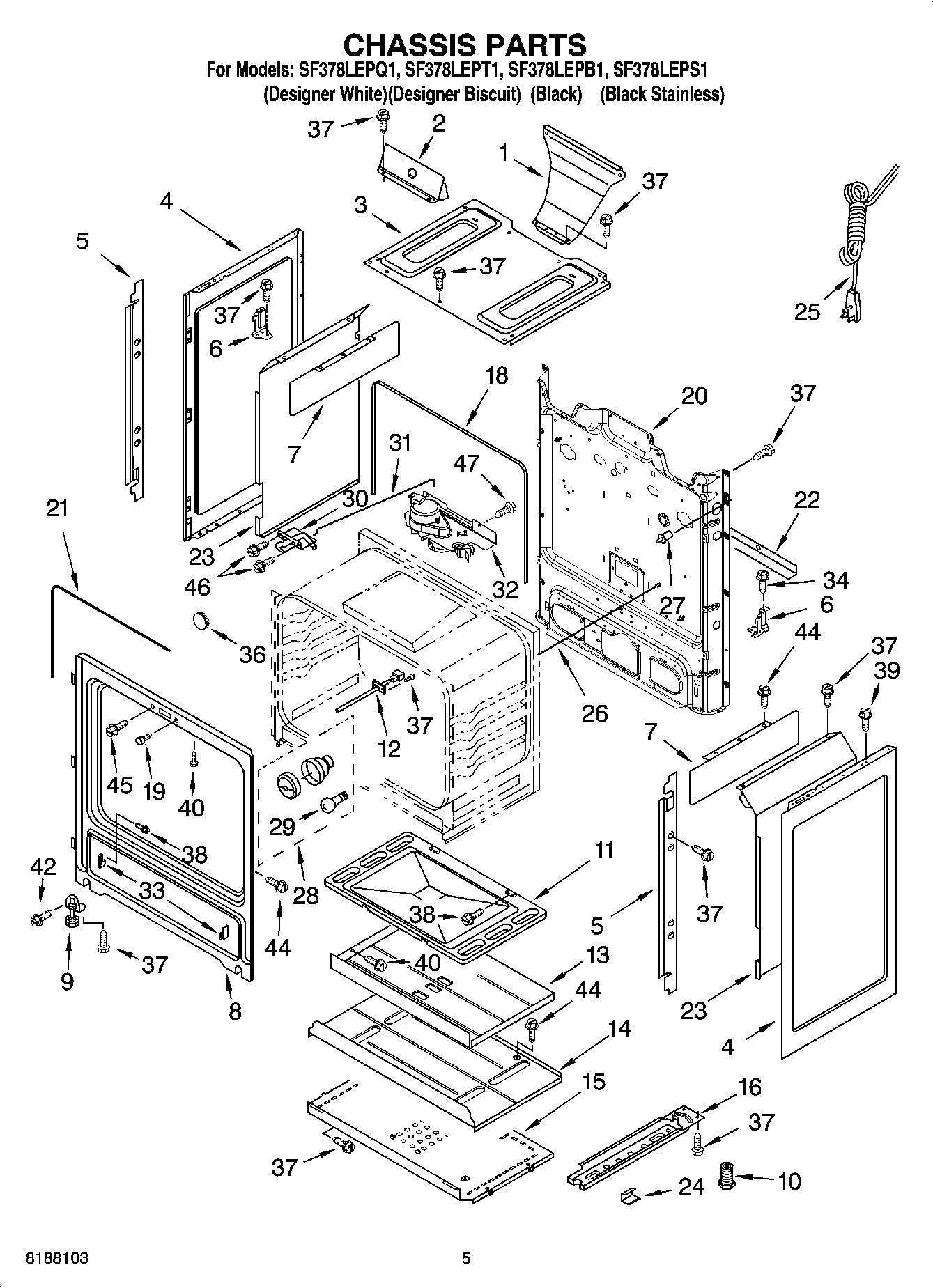

SF378LEPB1 04 – CHASSIS PARTS

Products

PositionProduct
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4WPW10575396 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
4W10162246 Whirlpool Side Panel
5Sheild, Heat (2)
68523249 Whirlpool Oven Support Bracket
7Shield, Heat (2)
8Frame, Front
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12WPW10181986 Whirlpool Oven Sensor
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16WPW10306546 Whirlpool Base Rail
18Seal, Oven Flange
19W10877054 Whirlpool Spacer Assembly
20Back, Main
21W11542153 Whirlpool Door Gasket
22Brace, Main Back
23Retainer, Insul. (Left Hand)
23Retainer, Insul. (Right Hand)
24Clip, Panel (6)
25WP9757891 Whirlpool Power Cord
269757239 Whirlpool Oven Door Rod
27W11243424 Whirlpool Light Switch
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107830 Whirlpool Stove Door Lock Latch Assembly
33WP3195546 Whirlpool Drawer Glide
34WP4449743 Whirlpool Screw
36Button, Plug
38Screw
39WPL 8281194
393196166 Whirlpool Screw
40SCREW
42Screw
44WP7101P246-60 Whirlpool Screw
45WP3400832 Whirlpool Screw
46W11169708 Whirlpool Screw
47W11684915 Whirlpool Insulation
478053915 Whirlpool Oven Insulation
47W10491985 Whirlpool Screw
47W11688737 Whirlpool Insulation
47Insulation
