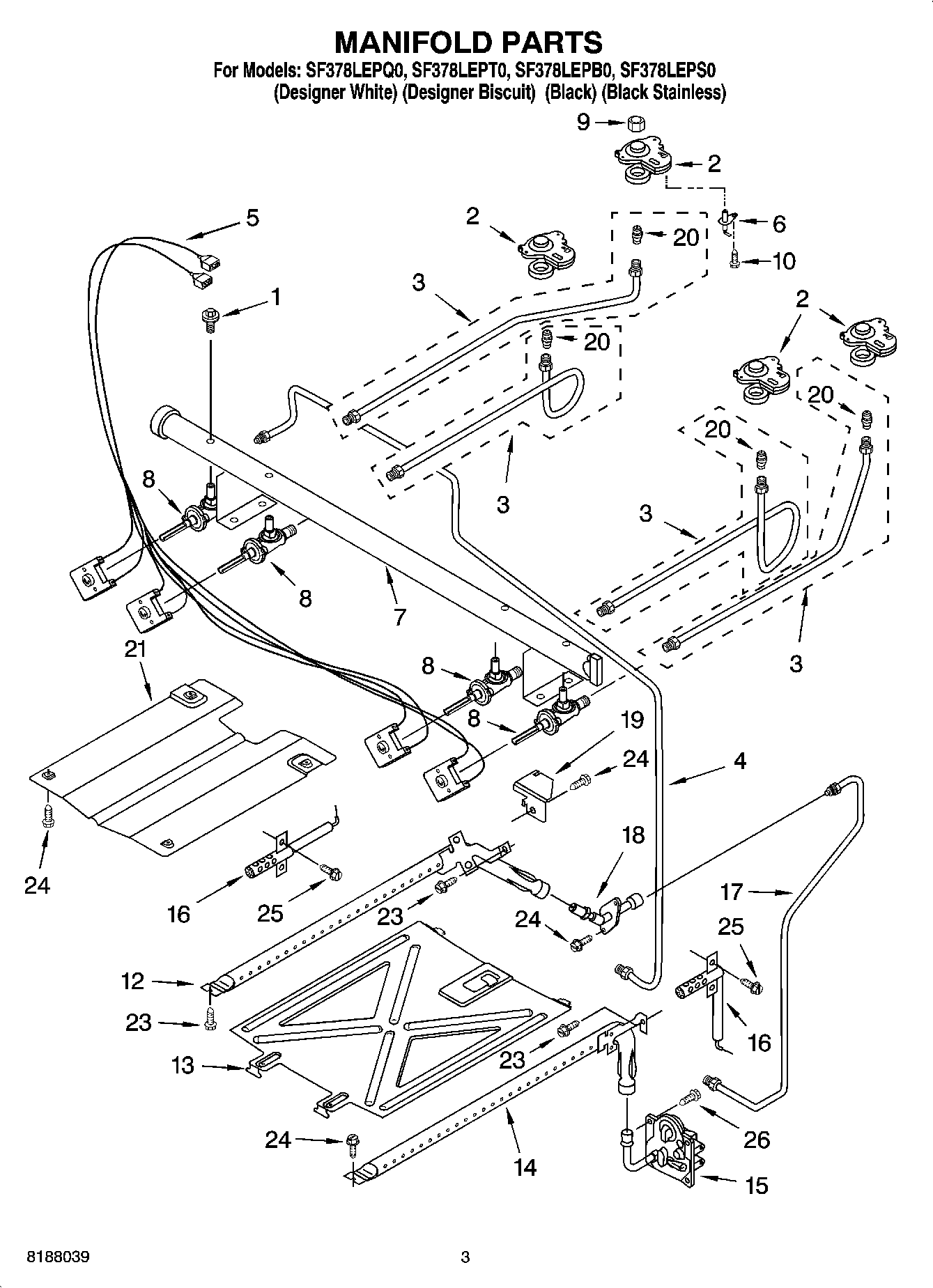

SF378LEPS0 03 – MANIFOLD PARTSadmin2025-04-26T13:08:34+00:00SF378LEPS0 03 – MANIFOLD PARTS ProductsPositionProduct1WP8273096 Whirlpool Screw2WP8273700 Whirlpool Base Burner3Tubing, Burner W/Orifice (Right Rear)3Tubing, Burner W/Orifice (Right Front)3WP8273694 Whirlpool Gas Tubing3WP8273693 Whirlpool Gas Tubing4Tubing (Manifold to Regulator)5WPW10295998 Whirlpool Wire Harness6WP8523793 Whirlpool Oven Surface Igniter7Pipe, Manifold8Valve (Right Rear)8WP9757218 Whirlpool Burner Valve9Nut (4)10WP8273062 Whirlpool Screw12WP8054078 Whirlpool Broiler Burner13Spreader, Flame (Oven)14WP9758078 Whirlpool Oven Burner15WPW10293048 Whirlpool Gas Valve16WP9758079 Whirlpool Oven Igniter16WP8054129 Whirlpool Oven Igniter17Tubing (Broiler Fitting To Valve)18Fitting, Broiler19Cover, Igniter20WP8273067 Whirlpool Orifice20WP8273064 Whirlpool Orifice20WP8273065 Whirlpool Orifice21W10137062 Whirlpool Burner Baffle233196265 Whirlpool Oven Screw24SCREW25W11684507 Whirlpool Screw26WP3400016 Whirlpool Screw Assembly26W10854965 Whirlpool Orifice Spud26FOLLOWING PARTS NOT ILLUSTRATED
