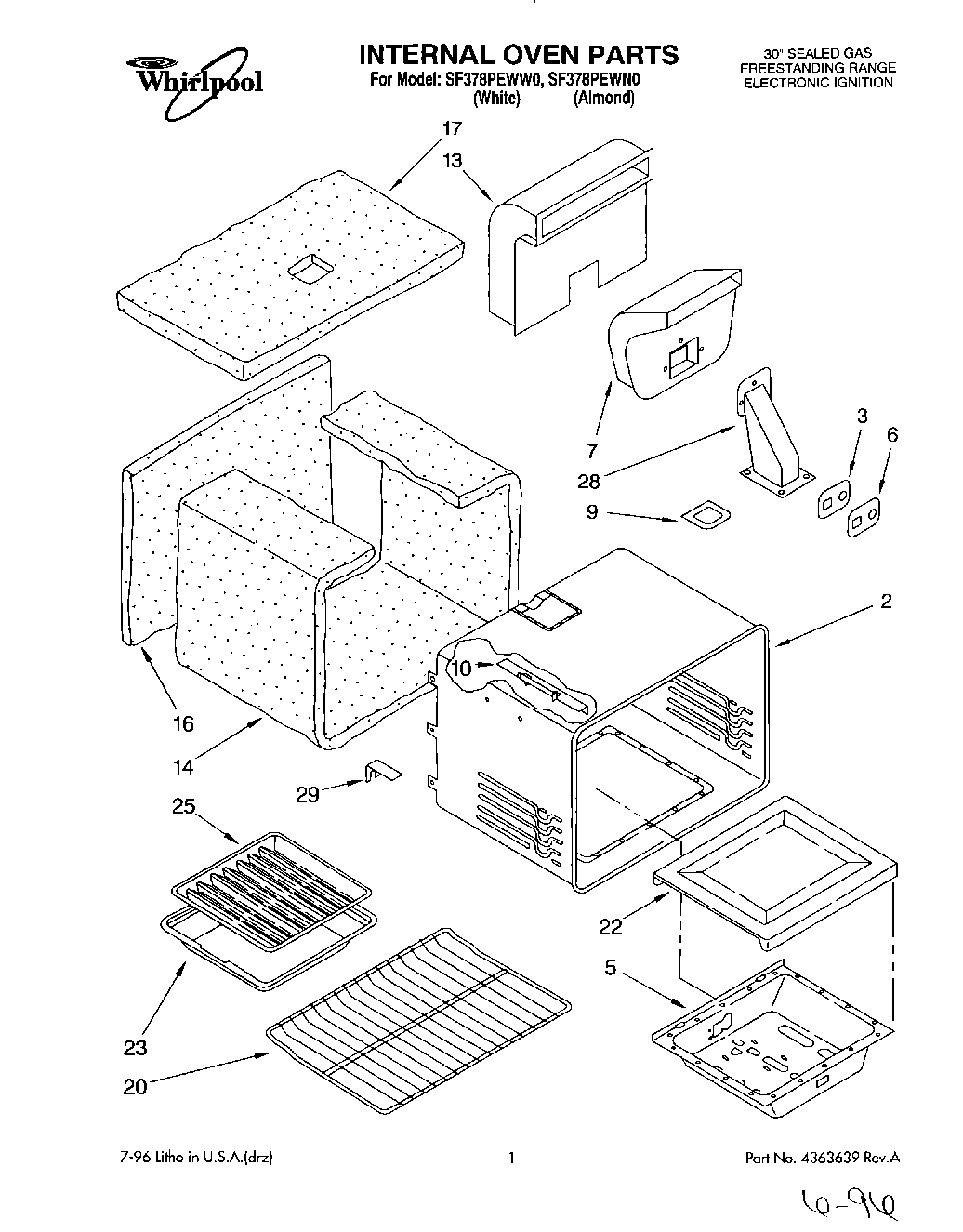

SF378PEWN0 01 – INTERNAL OVEN

SF378PEWN0 01 – INTERNAL OVEN

Written by

in

SF378PEWN0 01 – INTERNAL OVEN

Products

Position	Product
2	Oven 30“ Self-Clean
3	Plate, Burner Broil
5	Burner, Box, Lower
6	Gasket, Plate
7	Flue, Inner
9	Gasket, Vent
10	Sheild, Thermostat Bulb
13	Flue, Dilution
14	WPW10208653 Whirlpool Insulation
20	Rack, Oven (2)
22	Bottom, Oven
23	Pan, Broiler
25	Grid, Broiler
28	Vent
29	bracket, oven shell
