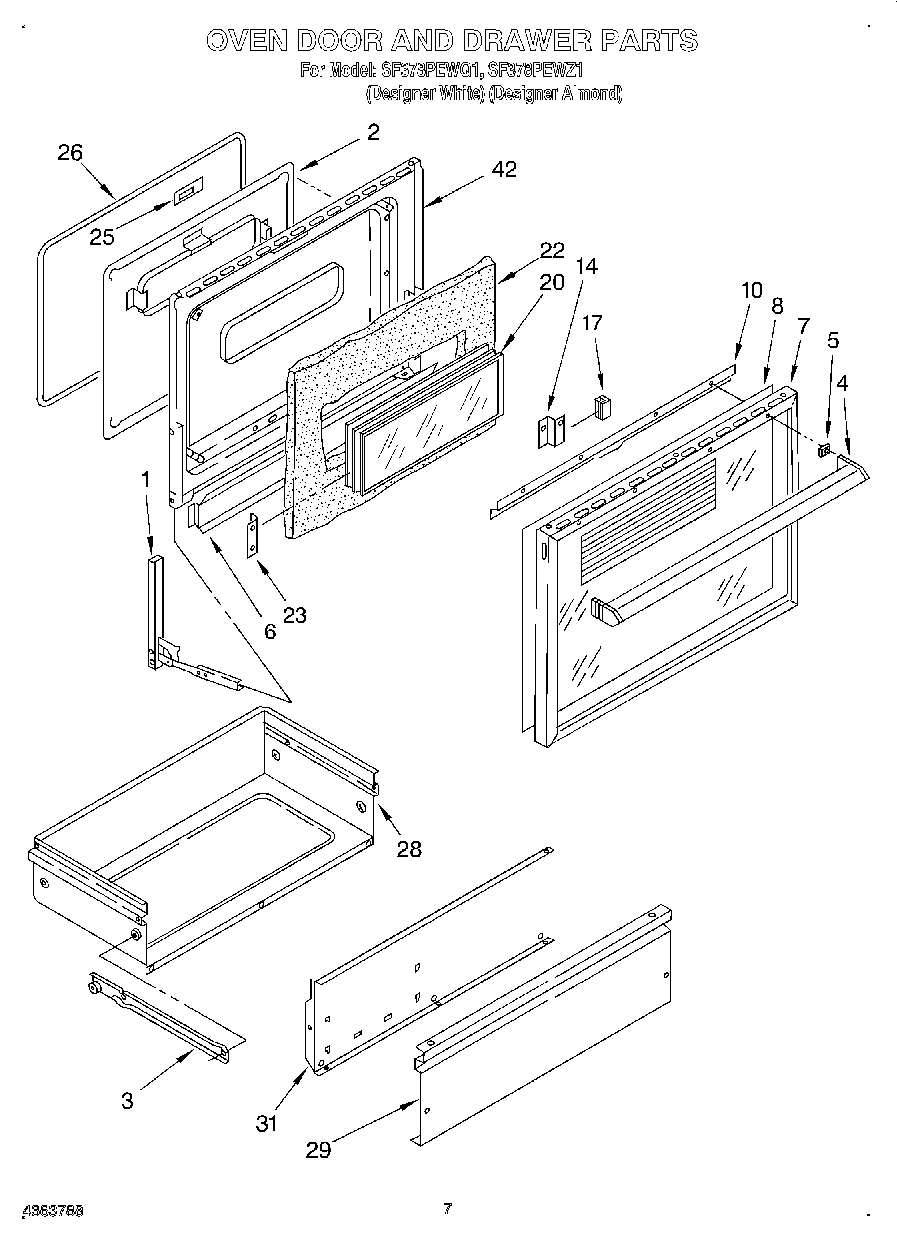

SF378PEWQ1 05 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (L.H.)
1Hinge, Oven Door (R.H.)
2Screw
2Pin-Hinge (2)
2Pad, Oven Door
2WP488130 Whirlpool Air Conditioner Nut
3Runner (R.H.)
3Runner (L.H.)
4Handle, Oven Door ((Almond Model))
4Handle, Oven Door (White)
5Spacer, Handle (4)
6Baffle, Heat
7Frame (Almond)
7Frame (White)
8Glass, Outer Door (Almond)
8Glass, Outer Door (White)
10Baffle, Air
14bracket, glass support (4)
17Bumper, Window (2)
20Window Assembly
22Insulation, Door
23Retainer, Window (4)
25Plate, Latch
26gasket assembly
28Drawer, Storage
29Panel, Drawer (White)
29Panel, Drawer (Almond)
29WP965173 Whirlpool Dishwasher Screw
31Liner, Drawer Panel
42Retainer, Insulation
42Bumper, Rubber
