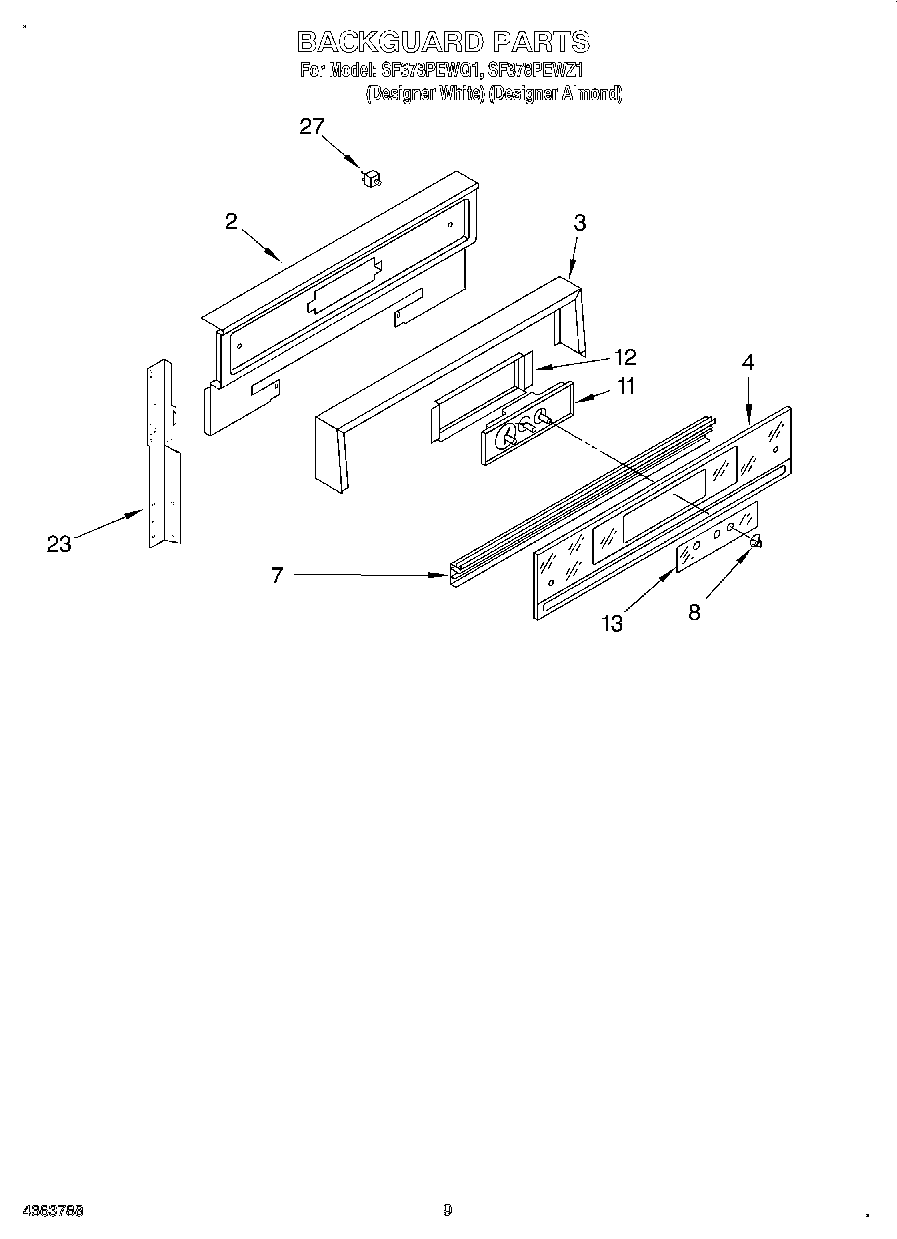

SF378PEWQ1 06 – BACKGUARDadmin2025-04-26T13:07:07+00:00SF378PEWQ1 06 – BACKGUARD
Products
| Position | Product |
|---|
| 2 | Panel, Control Mounting (White) |
| 2 | Panel, Control Mounting (Almond) |
| 3 | Frame (White) |
| 3 | Frame (Almond) |
| 4 | Decorative Inlay (White) |
| 4 | Decorative Inlay (Almond) |
| 7 | Trim, Lower |
| 8 | Knob, Clock (3) (Almond) |
| 8 | Knob, Clock |
| 11 | Clock ((White Model)) |
| 11 | Clock (Almond) |
| 12 | Plate, Clock Mounting |
| 13 | Glass, Timer |
| 23 | Support, Control Panel (2) (R.H.) |
| 23 | Support, Control Panel (2) (L.H.) |
| 27 | Screw |
| 27 | screw (4) |
| 27 | Lens, Ind. Light |
| 27 | Light Indicator |
