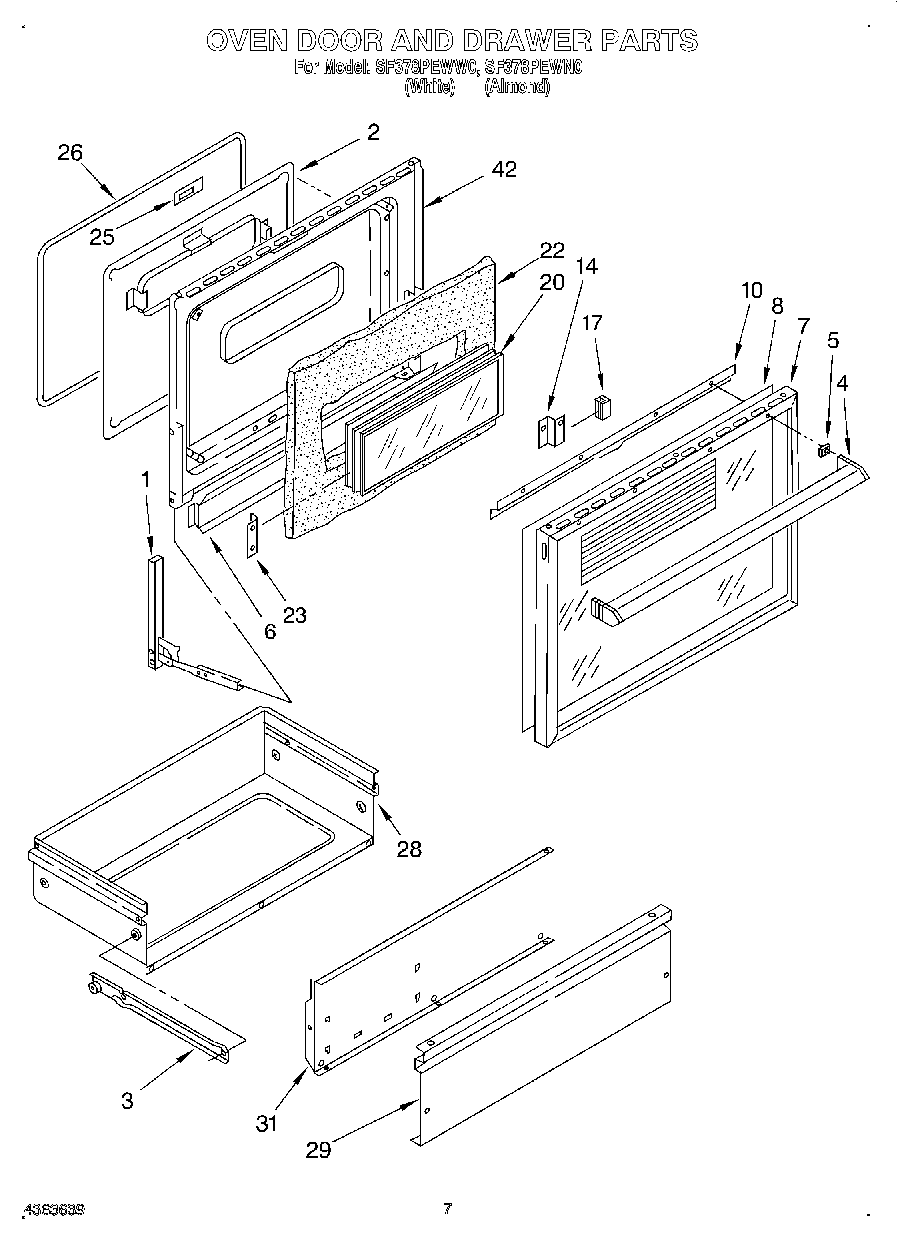

SF378PEWW0 05 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (R.H.)
1	Hinge, Oven Door (L.H.)
2	Screw
2	WP488130 Whirlpool Air Conditioner Nut
2	Pad, Oven Door
2	Pin-Hinge (2)
3	Runner, Drawer (Left Hand)
3	Runner, Drawer (Right Hand)
4	Handle
5	Spacer, Handle (2)
6	Baffle, Heat
7	Frame
8	Panel, Black Glass
10	Baffle, Air
14	bracket, glass support (4)
17	Bumper, Window (2)
20	Window Assembly
22	Insulation, Door
23	Retainer, Window (4)
25	Plate, Latch
26	gasket assembly
28	Drawer, Storage
29	Panel, Drawer (White)
29	Panel, Drawer (Almond)
29	WP965173 Whirlpool Dishwasher Screw
31	Liner, Drawer Panel
42	Retainer, Insulation
42	Bumper, Rubber
