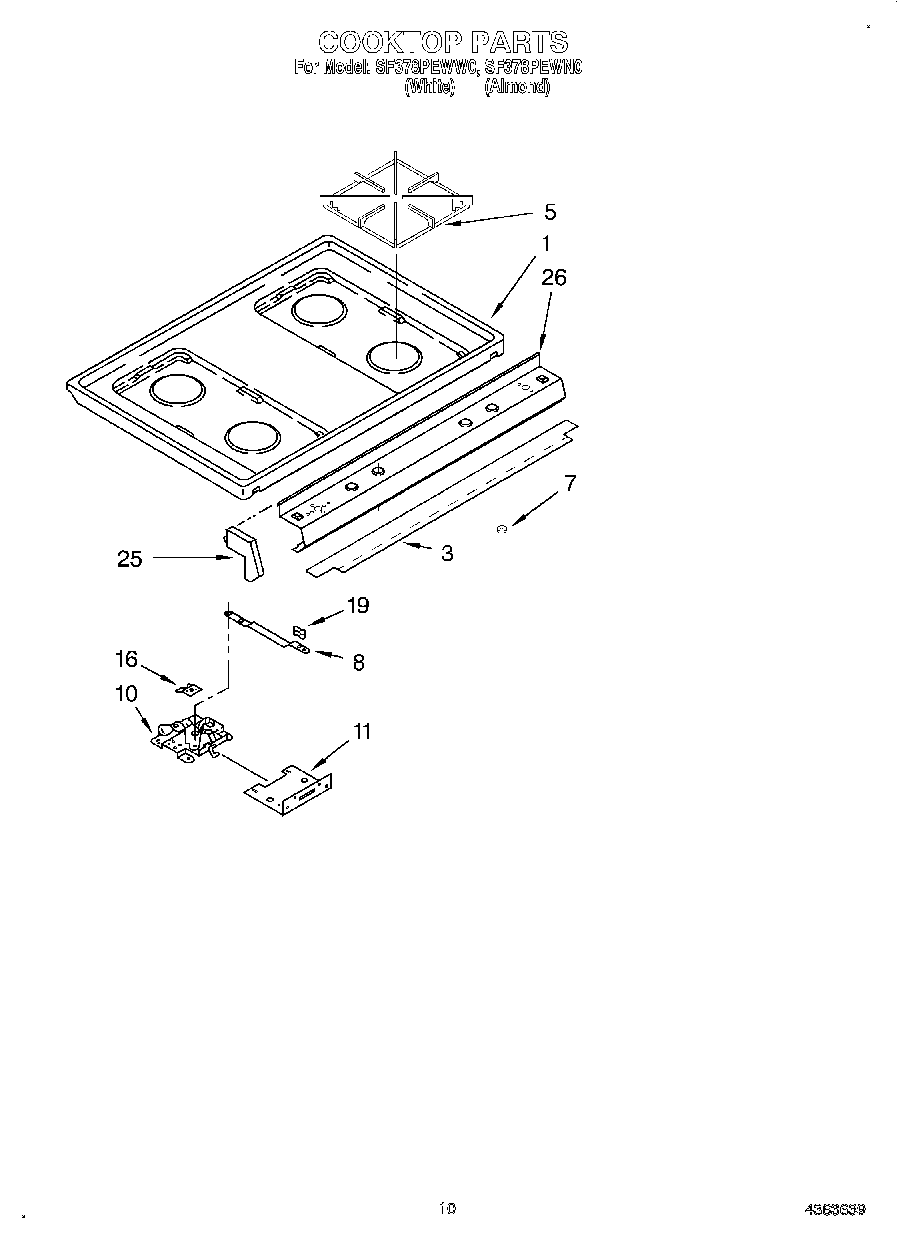

SF378PEWW0 07 – SECTION

Products

PositionProduct
1Top, Main (White)
1Top, Main (Almond)
3Panel, Filler
5Grate (4)
7Spacer, Nylon (4)
8Latch Arm
10Screw
10Latch Assembly
11Bracket, Latch Mounting
16Screw No.8 x 1/2
16Bracket, Switch
16screw, 4-40 (2)
19Knob Latch
25End Cap (Right)
25End Cap (Left)
26Panel, Control
