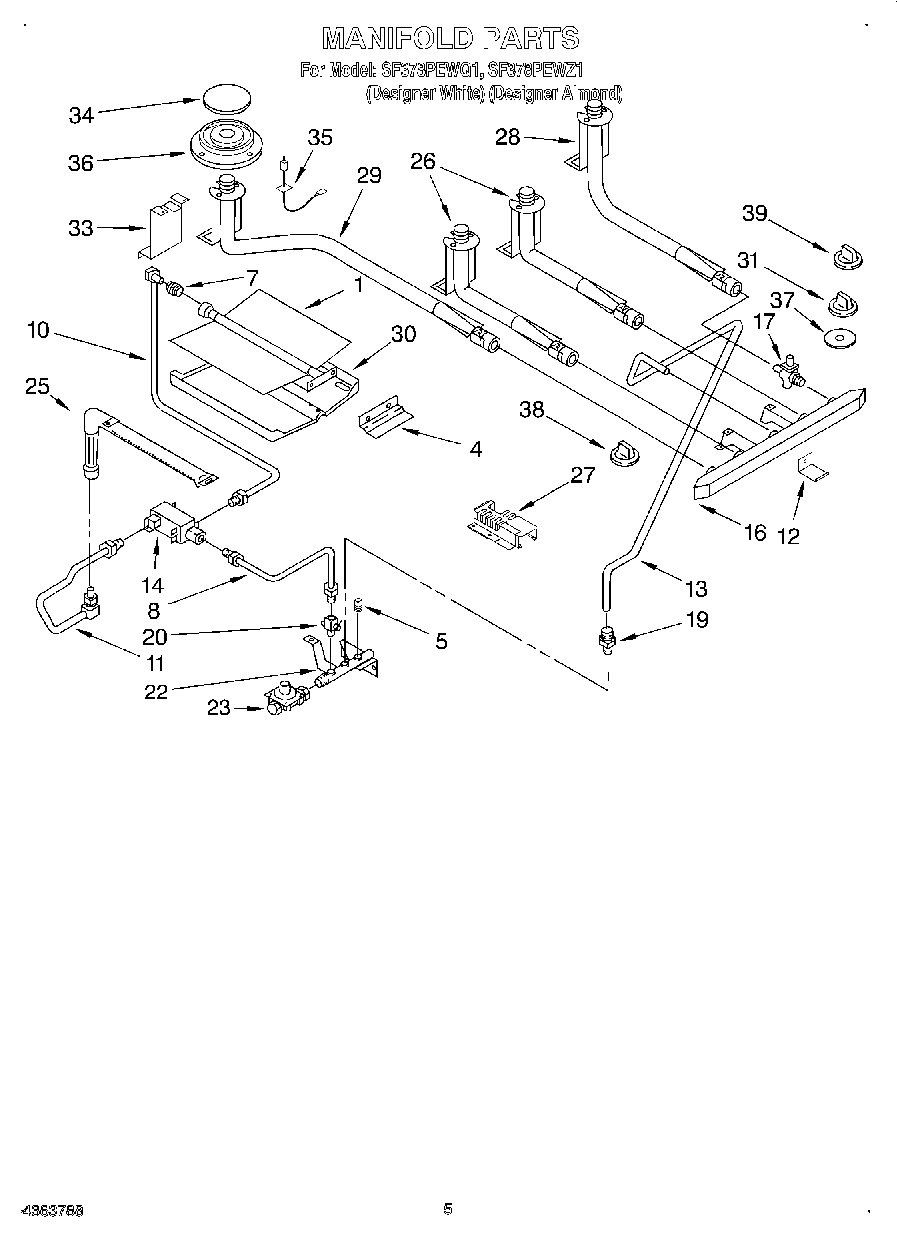

SF378PEWZ1 03 – MANIFOLD

Products

Position	Product
1	Burner, Broiler
1	Nut, 6-32 (6)
4	Screw
4	Support, Burner Mounting
5	W10295523 Whirlpool Plug
7	Natural Gas No. 51.
8	Tubing, (Inlet To Gas Valve)
10	Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11	hood & tubing assembly (gas valve to lower oven burner)
11	Nut, Lock
12	Bracket, Manifold
13	tubing (inlet to manifold)
14	Valve, Dual Gas Valve
16	Manifold
17	Valve, Top Burner (R.F. & L.R.)
17	Screw, Valve
17	Valve, Top Burner (L.F. & R.R.)
19	Fitting
20	Valve, Shut-Off
22	Inlet, Gas
23	Regulator, Pressure
25	Oven Burner, Lower
26	Venturi Tube
27	Shield, Broiler Ignitor
28	Venturi Tube R.R.
29	Venturi Tube L.R.
30	Baffle, Burner
31	Knob, Top Burner (4) (Almond)
31	Knob, Top Burner (4) (White)
33	Bracket
34	Burner Cap (Small)
34	WPL 4363715
34	Burner Cap White Model (Large)
34	Burner Cap White Model (L
35	Electrode (4)
36	Burner, Cast (Small (2))
36	Burner, Cast (Large (2))
37	Shield
38	Knob, Thermostat ((Almond Model))
38	Knob, Thermostat ((White Model))
39	Knob, Selector ((Almond Model))
39	Knob, Selector ((White Model))
