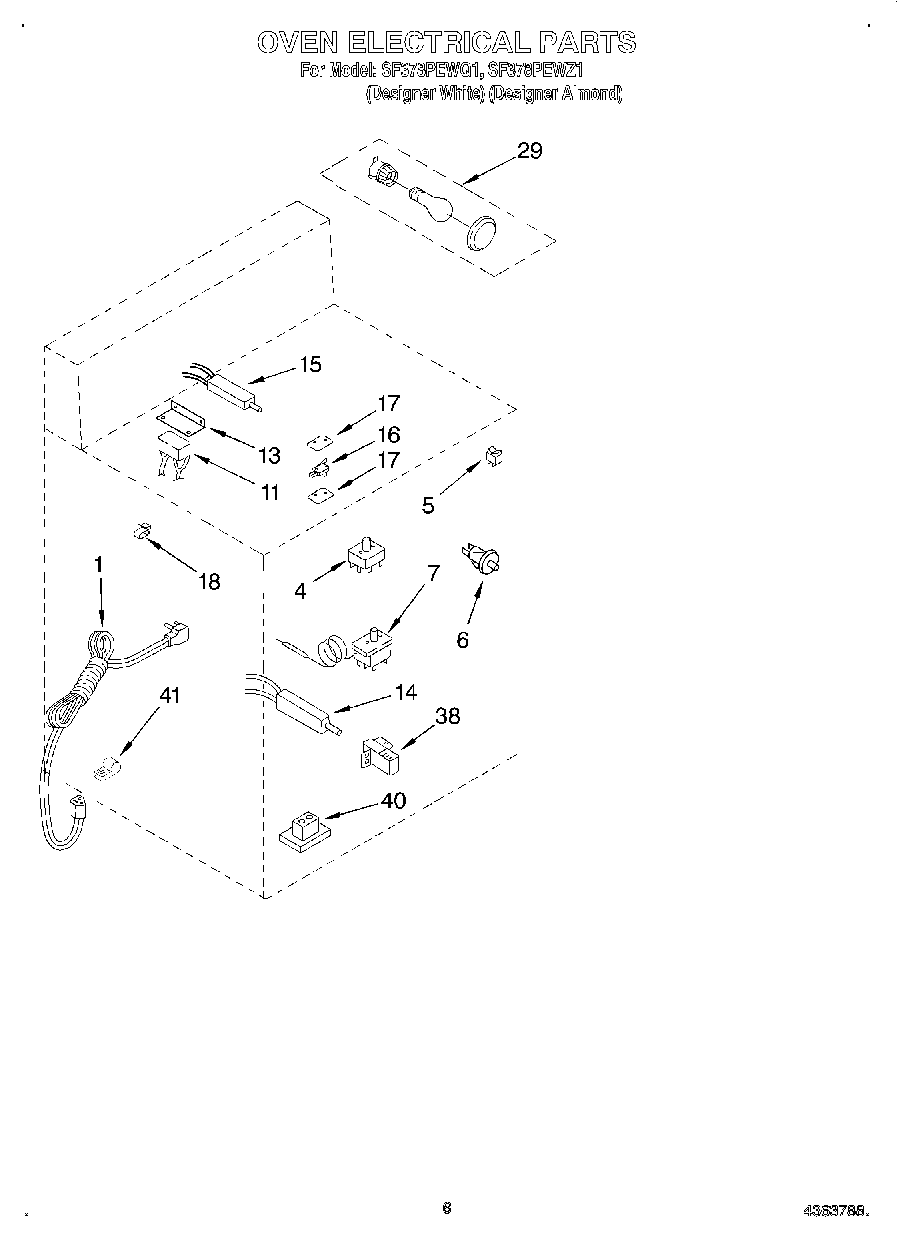

SF378PEWZ1 04 – OVEN ELECTRICAL, LITERATURE

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
Diagram, Wiring
1Cord, Power
4Switch, Selector
5Switch, Rocker (White)
5Switch, Rocker (Almond)
6Switch, Oven Light
7Thermostat, Oven
11Spark Module
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15Ignitor, Broil
16Switch, Oven Door Latch
17screw, 4-40 x 5/8 (2)
17Insulator, Switch
18Clip, Cable ESM
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
40Plug, Ignitor Wire
41Clamp
41WP965173 Whirlpool Dishwasher Screw
