SF378PEWZ1 07 – COOKTOP

SF378PEWZ1 07 – COOKTOP

Written by

in

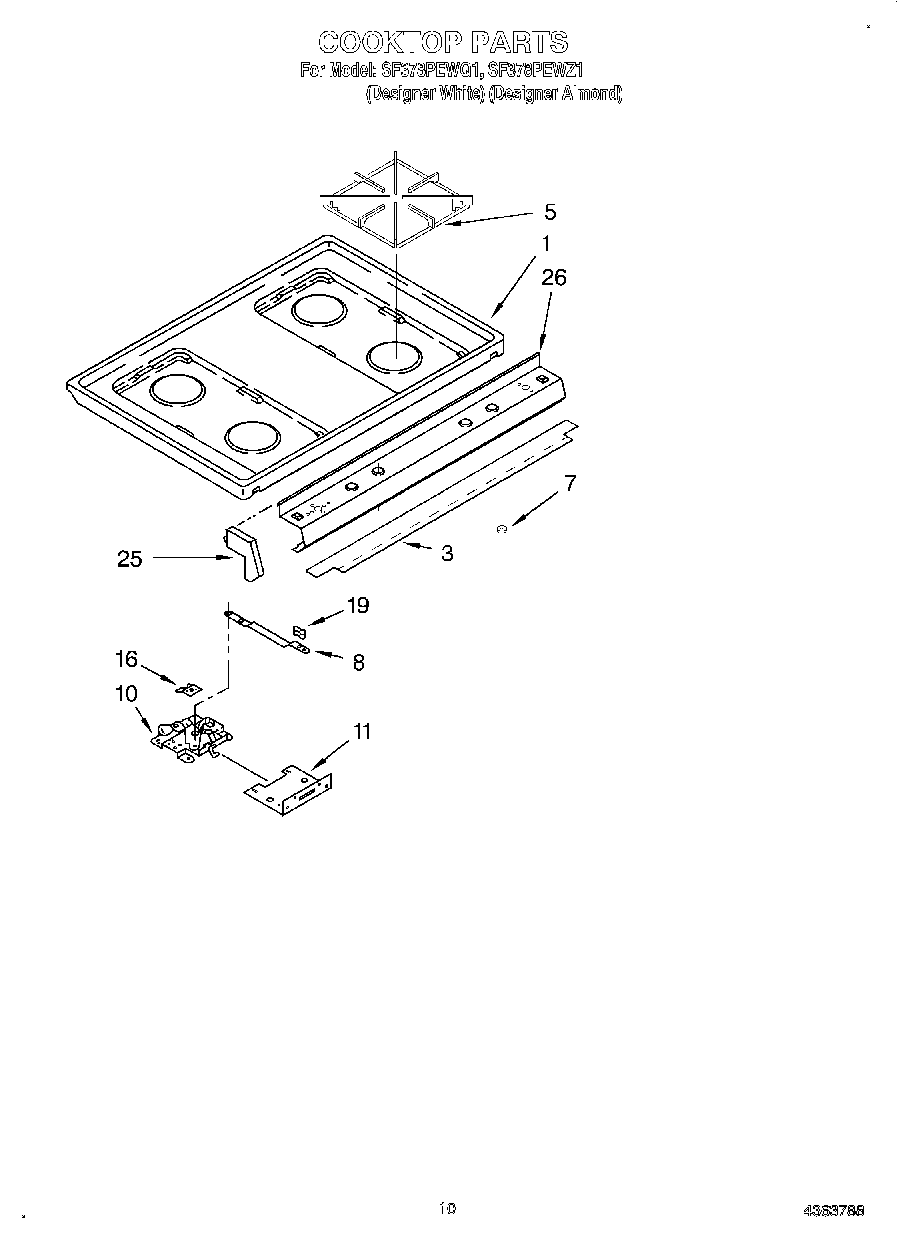

SF378PEWZ1 07 – COOKTOP

Products

Position	Product
1	Top, Main (Almond)
1	Top, Main (White)
3	Panel, Filler
5	Grate (4) ((White Model))
5	Grate (4)
7	Spacer, Nylon (4)
8	Handle, Latch (Almond)
8	Handle, Latch (White)
10	Latch Assembly
10	Screw
11	Bracket, Latch Mounting
16	Screw No.8 x 1/2
16	Bracket, Switch
16	screw, 4-40 (2)
19	Knob, Latch Handle (White)
19	Knob, Latch Handle (Almond)
25	End Cap (Almond, RH)
25	End Cap (Almond LH)
25	End Cap (White, RH)
25	End Cap (White, LH)
26	Panel, Control (White)
26	Panel, Control (Almond)
