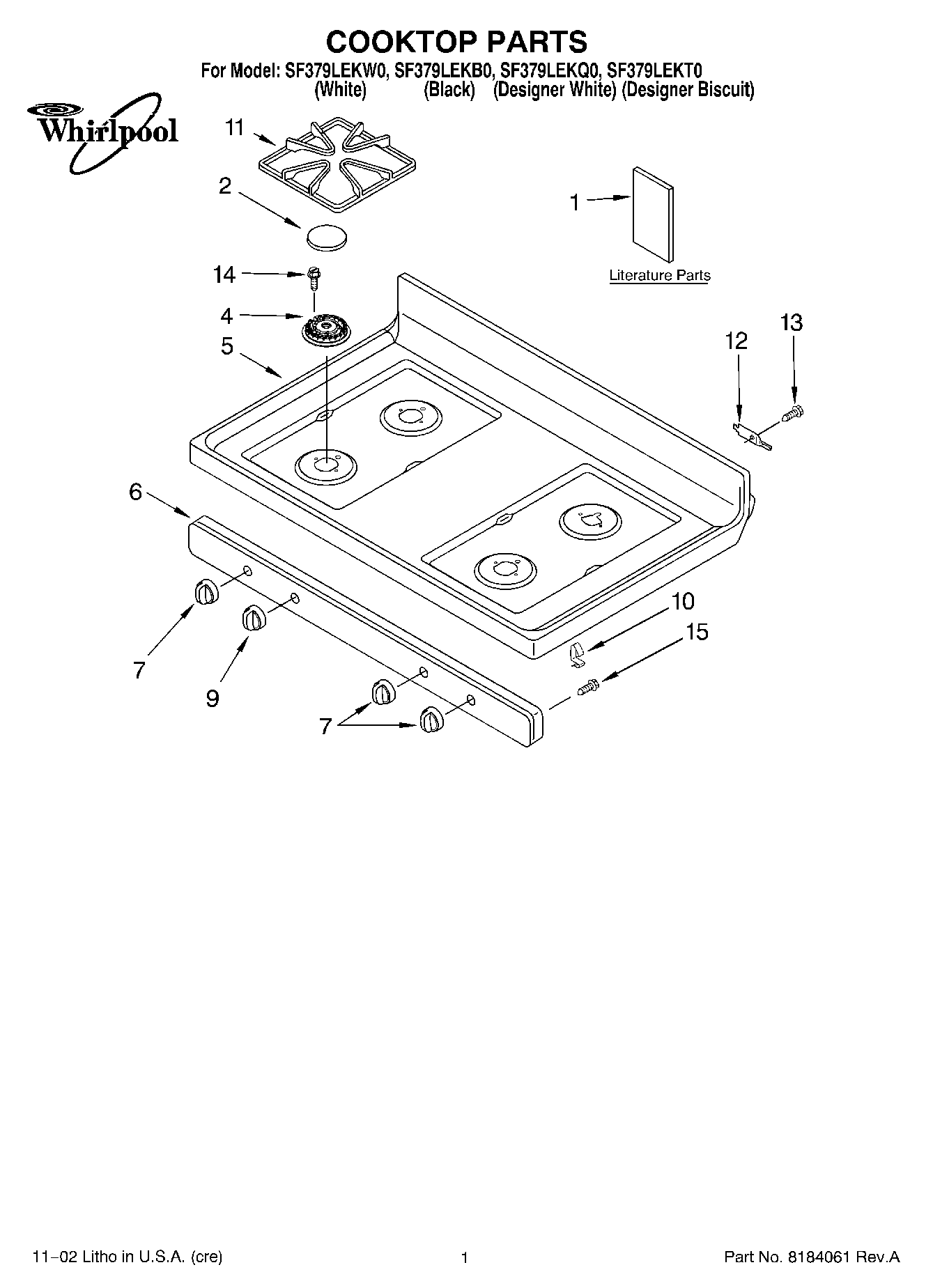

SF379LEKQ0 01 – COOKTOP, LITERATURE

SF379LEKQ0 01 – COOKTOP, LITERATURE

Written by

in

SF379LEKQ0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Instructions, Installation)
1Literature Parts (Tech Sheet)
1Guide, Use & Care
1Literature (Installation, Instructions (Template))
2WP3191904 Whirlpool Burner Cap
2WP3191898 Whirlpool Surface Burner Cap Black
2WP3191901 Whirlpool Burner Cap
2WP3191903 Whirlpool Burner Cap
2Cap, Burner 6K (1) (Gray)
2WP3191905 Whirlpool Burner Cap
4WP4455979 Whirlpool Range Small Burner Head
4WP4455981 Whirlpool Burner Head
4WP4455980 Whirlpool Burner Head
5W11213958 Whirlpool Oven Cooktop
58195546 Whirlpool Oven Cooktop O/S2
5W11213959 Whirlpool Cooktop
6WP8523854 Whirlpool Manifold Panel
6Panel, Manifold (Biscuit)
68523855 Whirlpool Oven Manifold Panel
7WP8273106 Whirlpool Knob
7WP8273103 Whirlpool Black Control Knob
7WP8273104 Whirlpool Knob
10Clip – Mounting
11WPW10447925 Whirlpool Grate Kit
11Grate (4) (Espresso)
12WP3195060 Whirlpool Cooktop Pin
13SCREW
14WP3368921 Whirlpool Screw
15WP8273345 Whirlpool Burner Cap
15WP8273344 Whirlpool Burner Cap
15WP8273343 Whirlpool Burner Cap
15WP3196557 Whirlpool Screw
