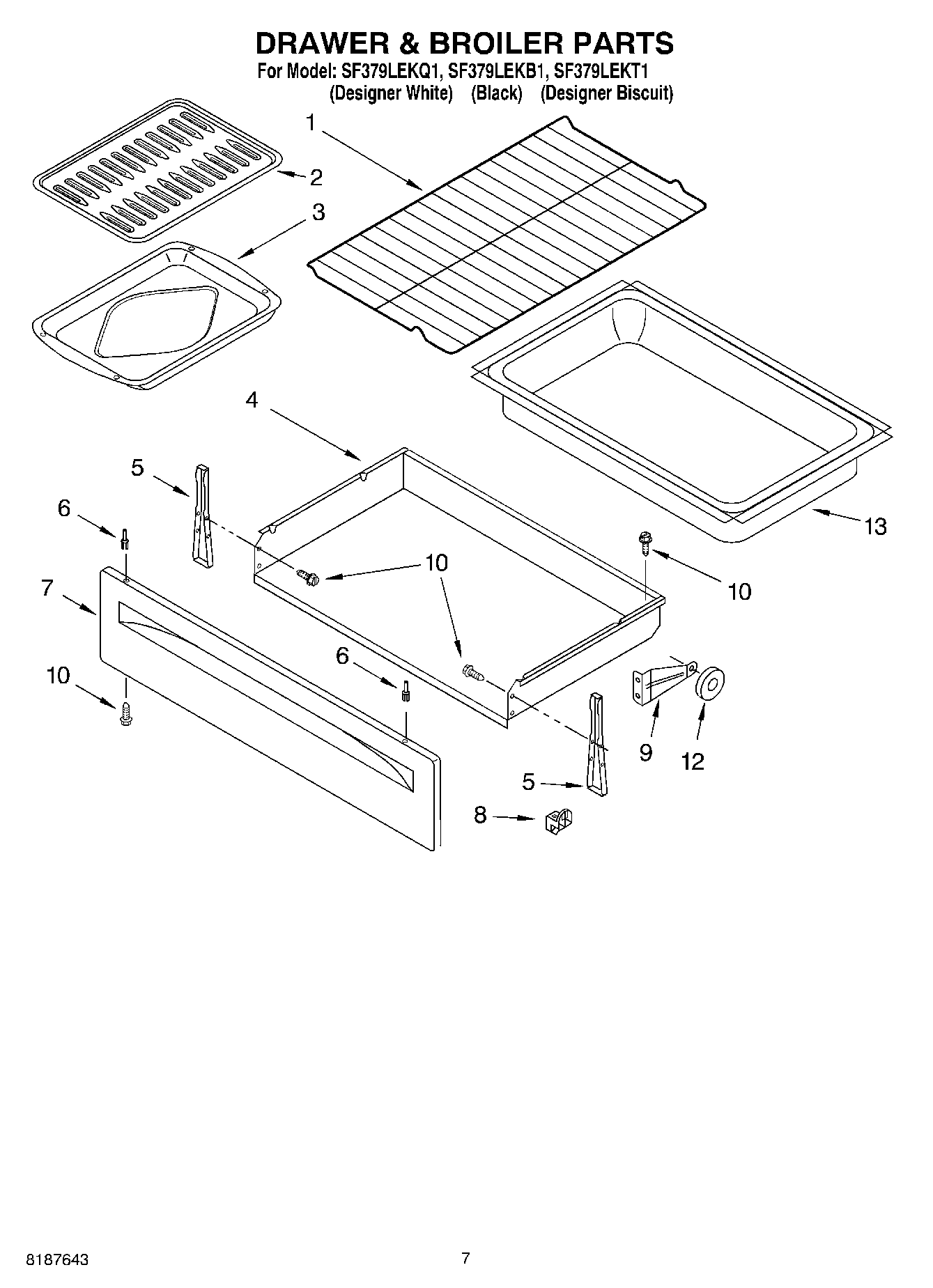

SF379LEKQ1 05 – DRAWER & BROILER PARTS

SF379LEKQ1 05 – DRAWER & BROILER PARTS

Written by

in

SF379LEKQ1 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
8WP3195546 Whirlpool Drawer Glide
9Bracket, Roller
10WP3400832 Whirlpool Screw
12814229 Whirlpool Primary Roller
13Liner, Drawer
