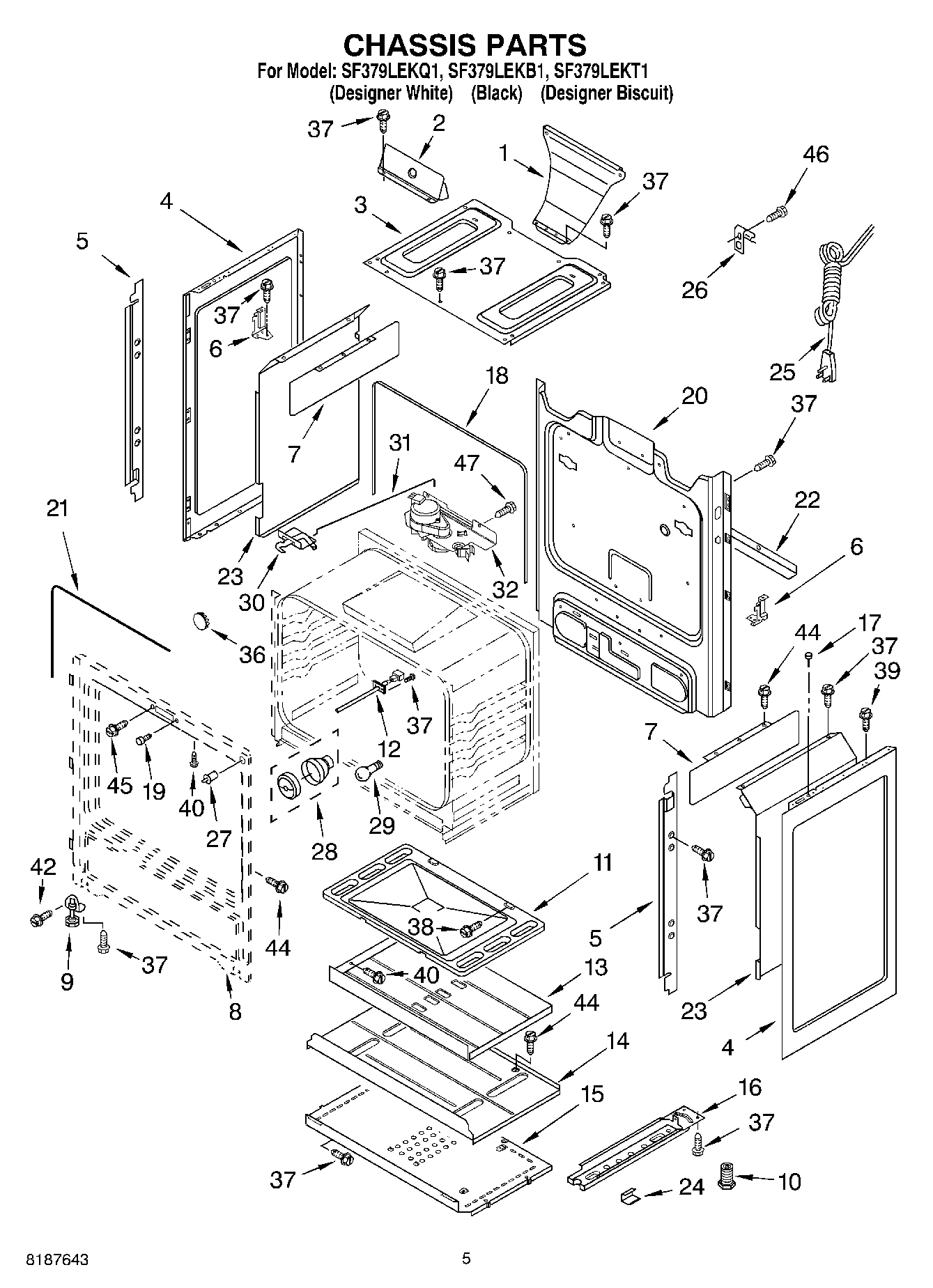

SF379LEKT1 04 – CHASSIS PARTS

Products

Position	Product
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	WPW10575396 Whirlpool Side Panel
4	W10162246 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	Shield, Heat (2)
6	Brkt, Manifold Mtg (Right Hand)
6	Brkt, Manifold Mtg (Left Hand)
7	Shield, Heat (2)
8	Frame, Front Not Serviced
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16	WPW10306546 Whirlpool Base Rail
17	238614 Whirlpool Bumper Hinge
18	Seal, Oven Flange
19	W10877054 Whirlpool Spacer Assembly
20	Back, Main
21	W11542153 Whirlpool Door Gasket
22	Brace, Main Back
23	Retainer, Insul. (Right Hand)
23	Retainer, Insul. (Left Hand)
24	Clip, Panel (6)
25	WP9757891 Whirlpool Power Cord
26	549193 Whirlpool Refrigerator Power Clamp
27	WP3196262 Whirlpool Light Switch
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
36	Button, Plug
38	Screw
39	Screw (Almond)
39	3196166 Whirlpool Screw
40	SCREW
42	Screw
44	WP7101P246-60 Whirlpool Screw
45	WP3400832 Whirlpool Screw
46	W11244557 Whirlpool Screw
47	W10491985 Whirlpool Screw
47	WPW10208653 Whirlpool Insulation
47	W11688737 Whirlpool Insulation
47	Insulation
