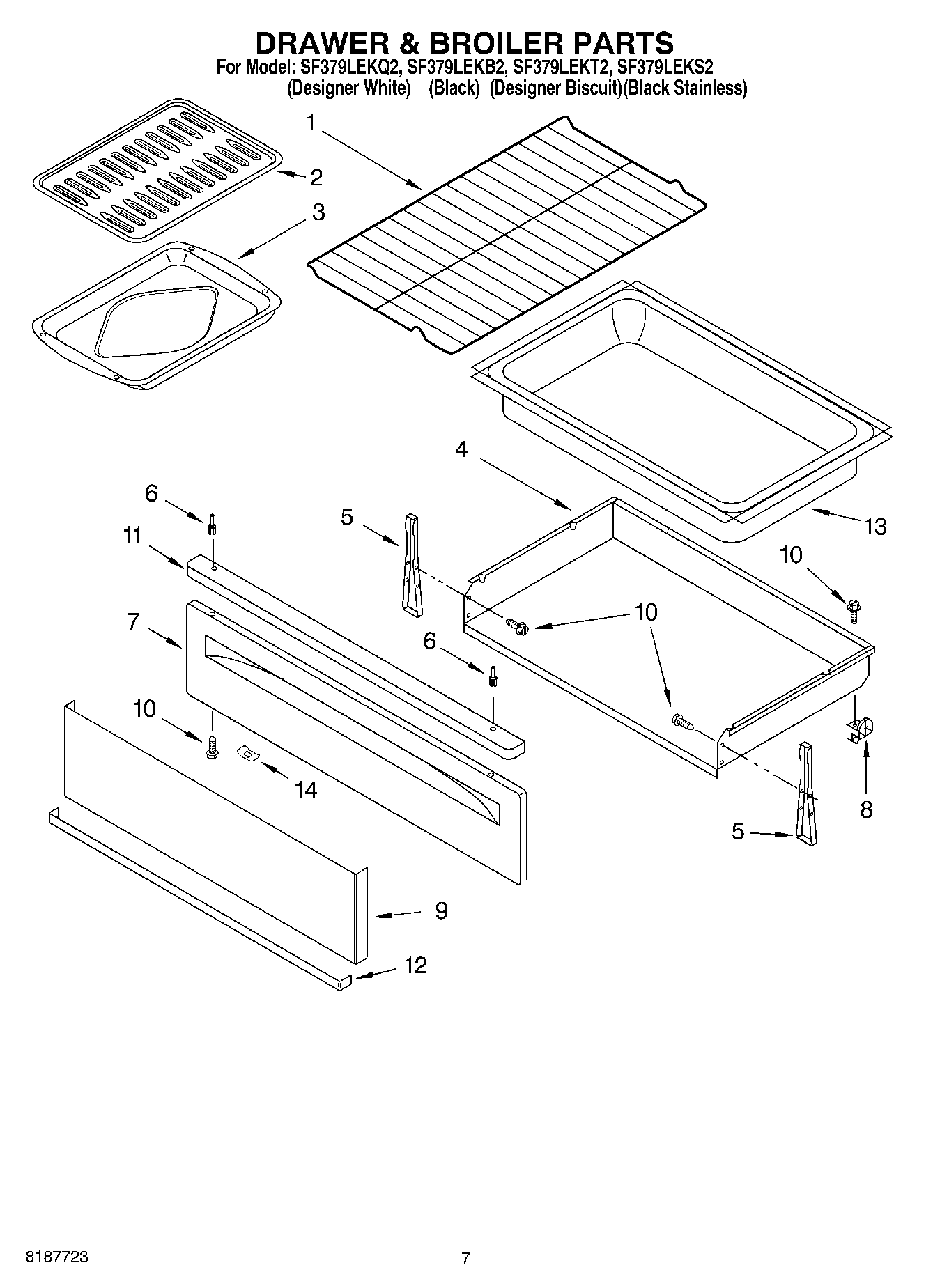

SF379LEKT2 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	3196815 Whirlpool Oven Rivet
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
7	PANEL, DRAWER FRONT (BISCUIT)
7	W11230490 Whirlpool Drawer Panel
7	W11230486 Whirlpool Drawer Panel
8	WP8053334 Whirlpool Drawer Glide
9	Panel, Stainless
10	WP3400832 Whirlpool Screw
11	WPL 8053949
12	Bottom, Drawer
13	Liner, Drawer
14	WP9781235 Whirlpool Clip
