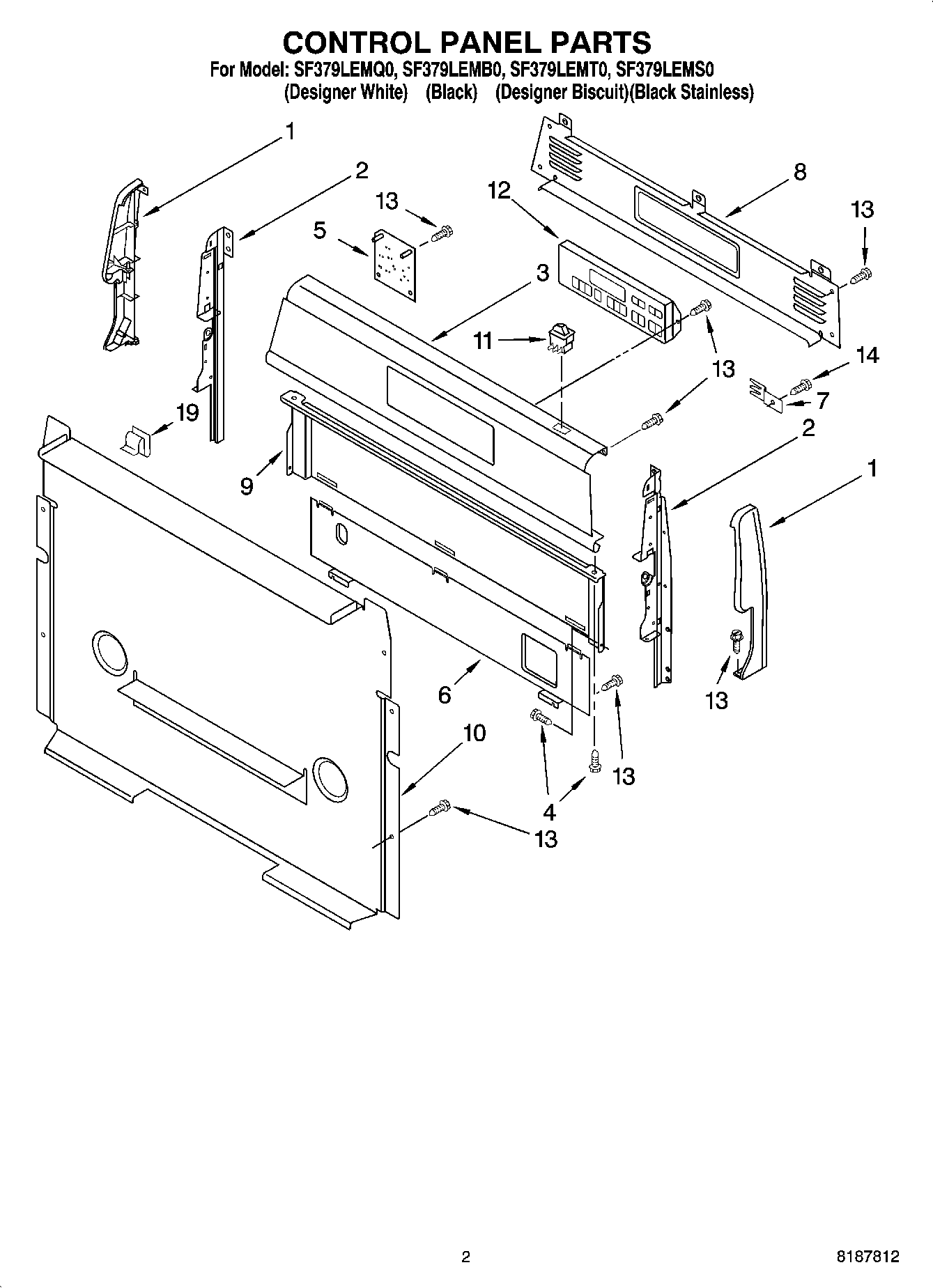

SF379LEMB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (White)
3Panel, Control (Black)
3Panel, Backguard (Biscuit)
3Panel, Backguard (Stainless)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
11WP4314961 Whirlpool Lite Switch
12Control, Range (Biscuit)
12WP6610449 Whirlpool Electronic Control Board
12Control, Range (White)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
