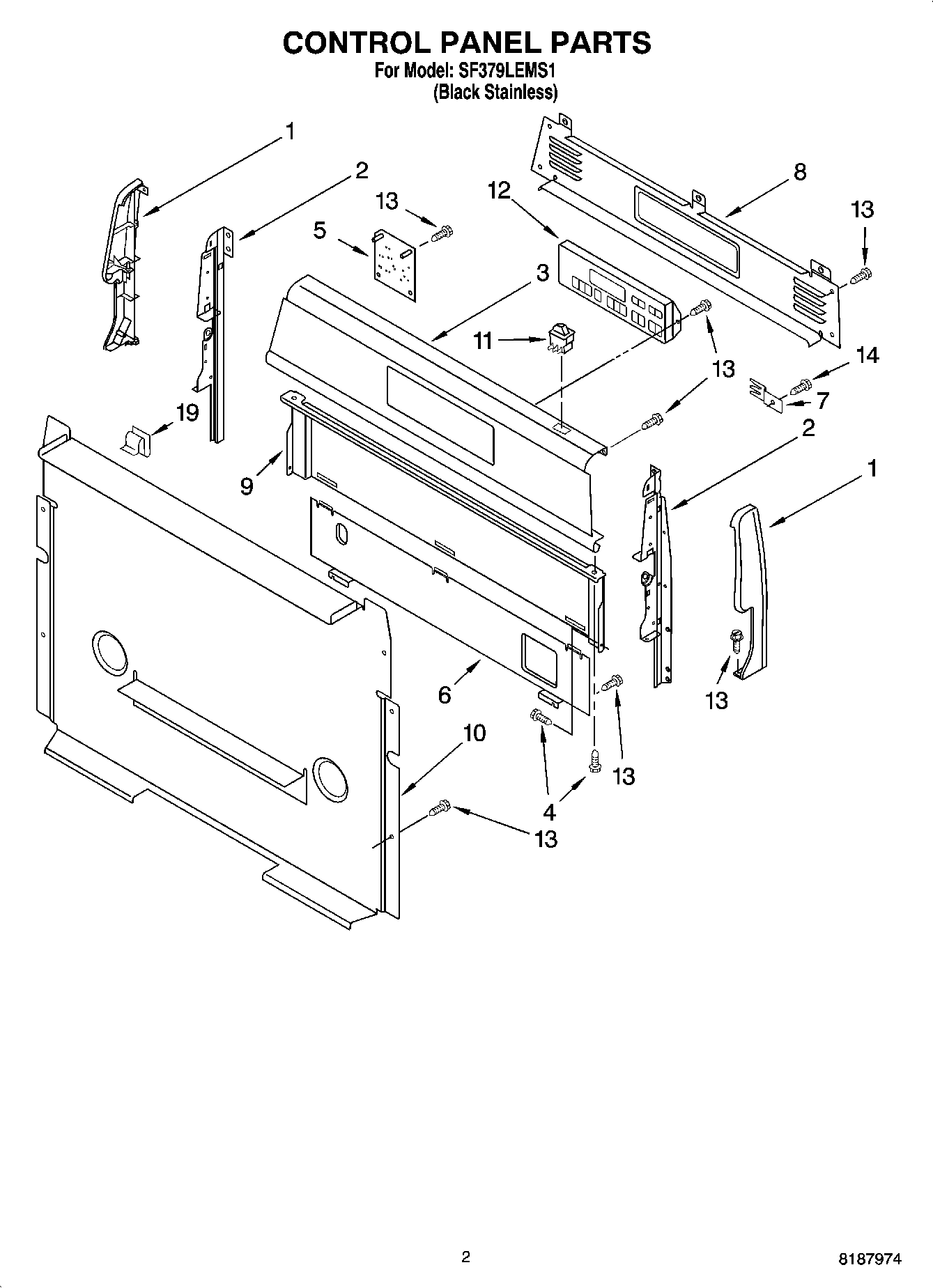

SF379LEMS1 02 – CONTROL PANEL PARTS

SF379LEMS1 02 – CONTROL PANEL PARTS

Written by

in

SF379LEMS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Stainless)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
78523412 Whirlpool Mounting Bracket
8Cover, Upper
9Shield, Heat
10Cover, Lower
11WP4314961 Whirlpool Lite Switch
12WP6610449 Whirlpool Electronic Control Board
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
