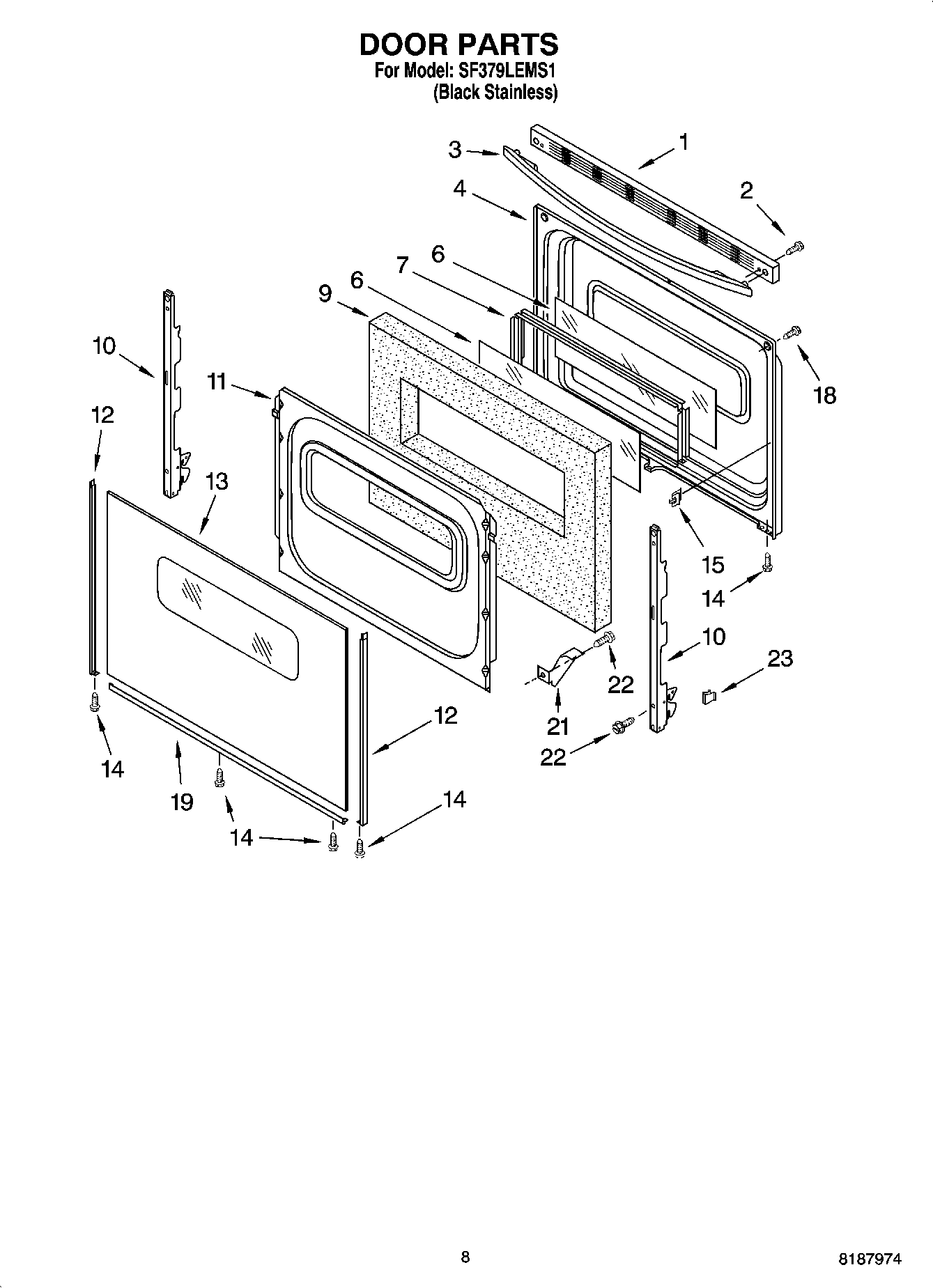

SF379LEMS1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF379LEMS1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF379LEMS1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI130289A
WPL 8316781
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL ARI130290A
3196896 Whirlpool Clip
WPL ARI130288A
WPL ARI130287A
WPL ARI130286A
WPL ARI130285A
WPL ARI130284A
WPL ARI130283A
WPL 9756438
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
285006 Whirlpool Spray
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
Wire, 25` Roll (Red 14 Ga.)
1Trim, Top (Stainless Model)
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10Hinge, Door (Stainless Model)
11W11539580 Whirlpool Retainer
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
13Glass, Outer (Stainless Steel)
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP8523180 Whirlpool Door Trim Assembly
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
23WP3196925 Whirlpool Clip Assembly
