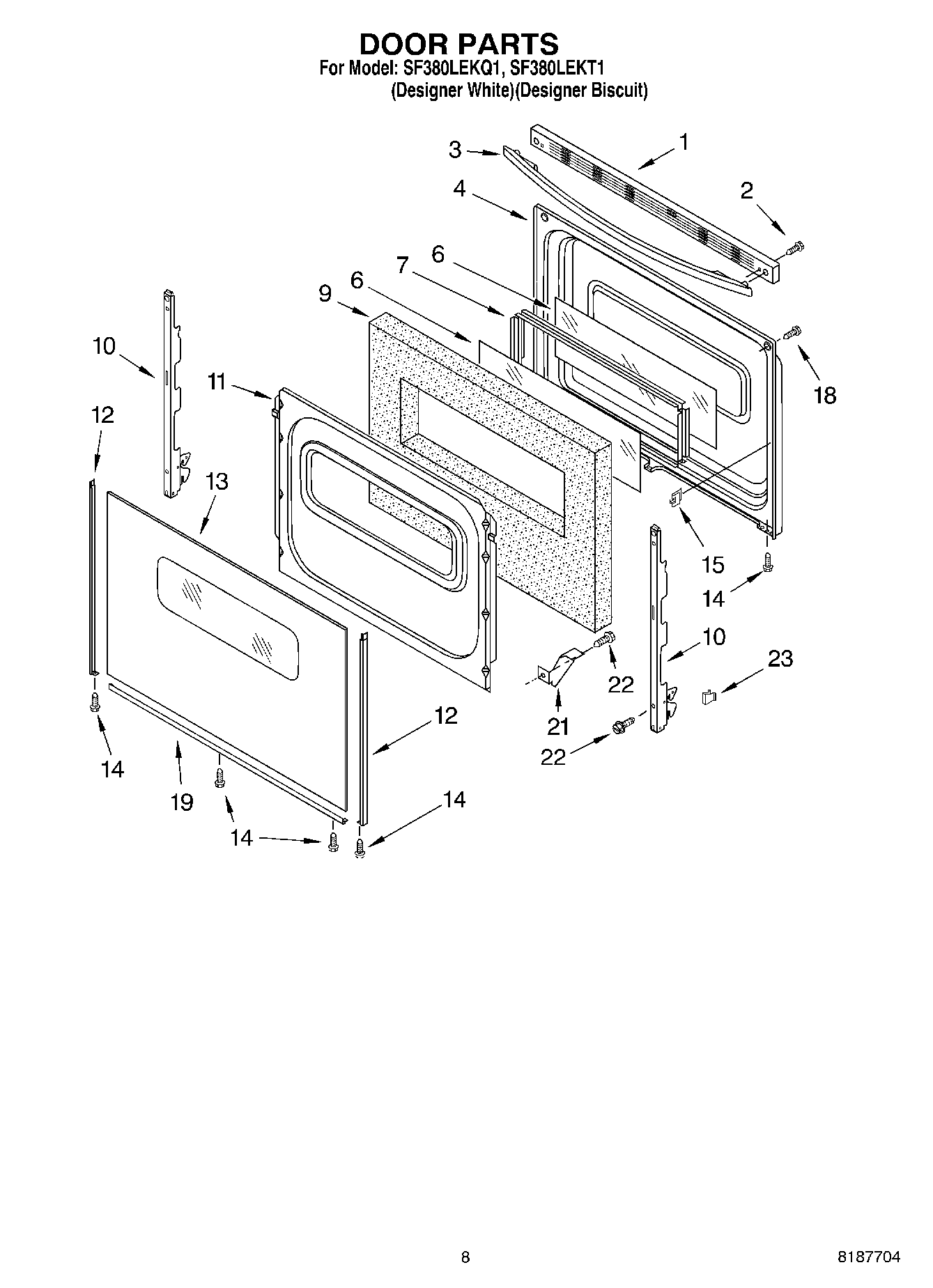

SF380LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF380LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF380LEKT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI163871A
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	Grease
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	3196896 Whirlpool Clip
	WPL ARI163870A
	WPL ARI163869A
	WPL ARI163868A
	WPL ARI163867A
	WPL ARI163866A
	WPL ARI163865A
	WPL ARI163872A
	WPL 8523425
	WPL 8273901
	TIE,WIRE
	8523599 Whirlpool Oven Wire Harness
	242831 Whirlpool Oven Wire
	16515 Whirlpool Clip
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WP72107 Whirlpool Touchup
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	3400964 Whirlpool Oven Clip
	350930 Whirlpool White Spray Paint
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	Wire, 25` Roll (Black 14 Ga.)
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	WPL 799832
1	Trim, Top (Biscuit)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
11	W11539580 Whirlpool Retainer
13	WP8053834 Whirlpool Door Glass
13	Glass, Outer Door (Biscuit)
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
19	8184860 Whirlpool Oven Door Trim
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
